Surface Sterilization Device
Steri-EYE S
High power surface sterilization device SHG / Product Lineup

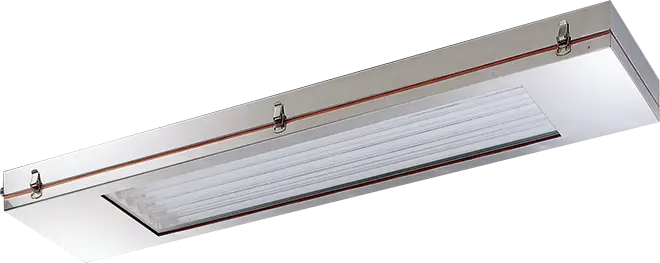

High power water-cooled irradiation unit: Specifications
| No. of lamps | Model | Dimensions (mm) | Weight (kg) | Compatible lamps | Structure | Water supply and drainage direction | |||
|---|---|---|---|---|---|---|---|---|---|
| Width | Height | Depth | Window | ||||||
| 1 x 400W lamp | GHE401AH(N)L0 | 90 | 60 | 1150 | 50 x 800 | 5.0 | GHL400-23 | Bottom-emission type | L direction |
| GHE401AH(N)R0 | 90 | 60 | 1150 | 5.0 | GHL400-23 | Bottom-emission type | R direction | ||
| 3 x 400W lamps | GHE403AH(N)0 | 120 | 60 | 1150 | 100 x 800 | 6.0 | GHL400-23 | Bottom-emission type | - |
| GHE403CH(N)0 | 180 | 70 | 1150 | 10.5 | GHL400-23 | Waterproofing type | - | ||
| 5 x 400W lamps | GHE405AH(N)0 | 190 | 60 | 1150 | 170 x 800 | 8.5 | GHL400-23 | Bottom-emission type | - |
| GHE405CH(N)0 | 230 | 70 | 1150 | 13.0 | GHL400-23 | Waterproofing type | - | ||
Water temperature control unit: Specifications
| Model | Dimensions (mm) | Weight (kg) | ||||
|---|---|---|---|---|---|---|
| Standard Specifications | SUS Specifications | Width | Height | Depth | ||
| 1 x 400W lamp | GWC06CHM0 | GWC06CHMT/P | 400 | 670 | 470 | 70 |
| 2-5 x 400W lamps 2 x 400W lamps x 2units | GWC20CHH0 | GWC20CHHT/P | 500 | 900 | 560 | 90 |
| 3 x 400W lamps x 2units 2 x 400W lamps x 3units | GWC26CHH0 | GWC26CHHT/P | 500 | 900 | 560 | 90 |
*We also offer water-cooled water temperature control units, where ambient temperature is high, or there are 15 or more lamps.

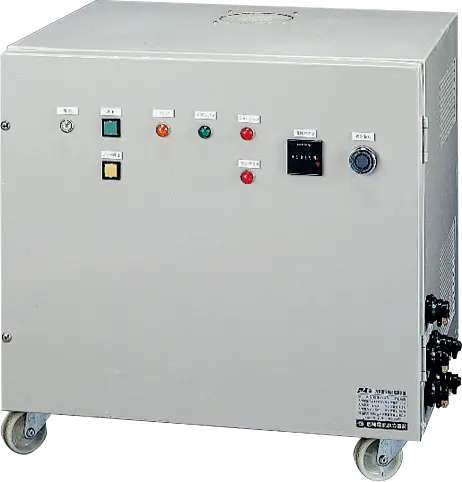

High output power supply: Specifications
| No. of lamps | Model | Voltage (V) | Frequency (Hz) | Consumption (W) | Dimensions (mm) | Weight (kg) | |||
|---|---|---|---|---|---|---|---|---|---|
| When heater ON | When lamp stable | Width | Height | Depth | |||||
| 1 x 400W lamp | GHB401A205(6)0 | 200 | 50(60) | 2100 | 540 | 450 | 350 | 400 | 40 |
| 3 x 400W lamps | GHB403A205(6)0 | 2100 | 1620 | 750 | 800 | 630 | 105 | ||
| 5 x 400W lamps | GHB405A205(6)0 | 2700 | 2700 | 750 | 800 | 630 | 175 | ||
Handling / Usage Precautions
- Exercise due caution as UV rays from the germicidal lamps can be highly dangerous if eyes or skin are exposed to them.
- UV light emitted by the high power surface sterilizer is very strong; do not look directly at the lamp or at the reflected light when it is operating.
- Install the control unit in a cool, well-ventilated location. (Please consult us if the ambient temperature exceeds 30℃ .)
- Use purified or pure water as the cooling water.
