UV Outer Surface Decontamination System for Packaging Bags

This device is used in pharmaceutical factories to decontaminate the outer surface of packaging bags that pose a risk of contamination before transporting raw materials and containers delivered from suppliers to a highly sterile processing and filling line. It unpacks the boxes delivered from suppliers, removes the inner packaging bags, places them on a roller conveyor, automatically decontaminates them, and transports them to the cleanroom. The introduction of this device eliminates the need for manual alcohol-based decontamination by workers, improving both the efficiency and safety of the processing.

Features

  1. Processing cost reduction
  2. Speed up processing
  3. Continuous processing by automated transport
  4. Improved safety
  5. Labor saving

Processing conditions

  1. Target item: Packaging bag containing eye drop containers, etc.
  2. Object dimensions: Maximum 700 x 800 x 550 mm
  3. Purpose of treatment: Decontamination of the outer surface of packaging bags
  4. Indicator bacteria: Bacillus subtilis spores
  5. Required UV dose: 33.3 mW・sec/cm² (dose required for 99.9% inactivation)
  6. Processing time: 30 seconds per bag (5m/min)
  7. Conveying method: Conveyed by roller conveyor
  8. Approximate dimensions of the device (example): L5800 x D1600 x H2970 mm

Cleanroom
Grade C Area

Cleanroom
Grade A Area

Case studies

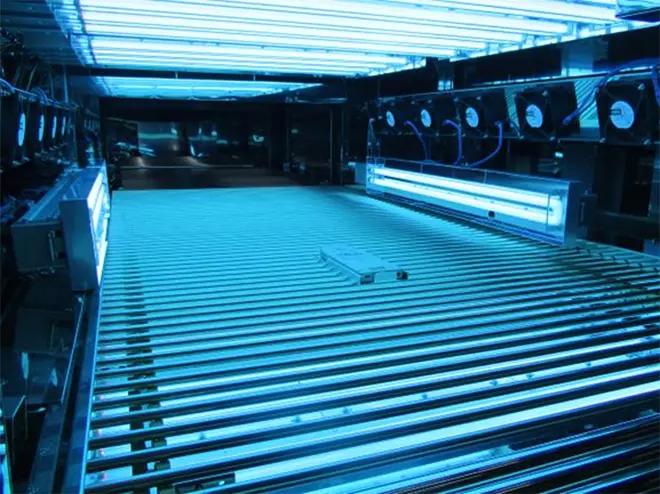

Rohto Pharmaceutical Co., Ltd. Ueno Technology Center
Conveyor-type UV decontamination system (65W x 43 lamps)

Product name
Medium power surface sterilization device: Low-pressure UV lamps (65W x 43) (Decontamination of outer packaging by irradiating both sides and top and bottom of eye drop container bags containing materials)

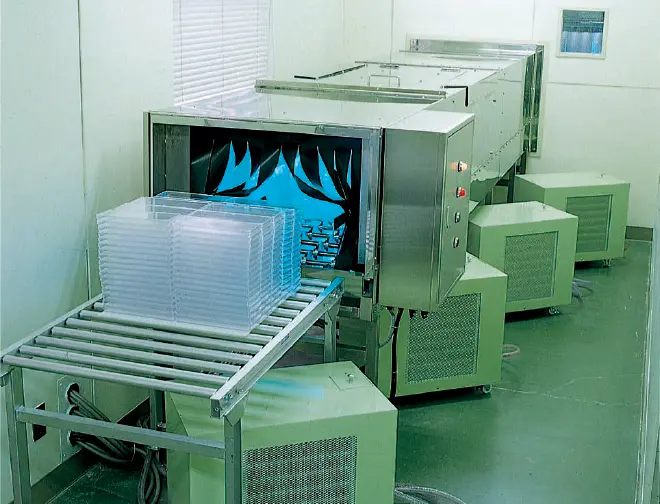

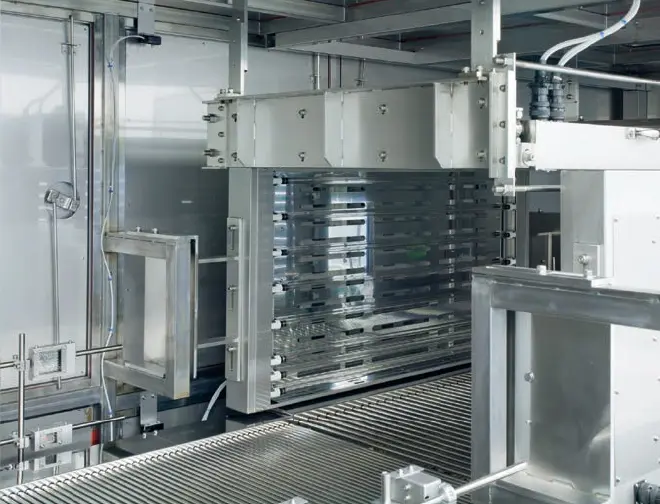

A conveyor-type ultraviolet decontamination system (200W x 12 lamps) at a certain pharmaceutical factory.

Product name
High power surface sterilization device (decontamination of exteriors by irradiating both sides and top/bottom when materials are brought into a cleanroom)
