Surface Sterilization
The surface sterilization system is a method to sterilize by directly irradiating ultraviolet rays to the surface of the wrapping material or foods. With recent changes in logistics and supply chains, the hygiene management for the food and such has become stricter. Also, the caps and containers themselves, which require sterilization, have changed their types and shapes with time. The ultraviolet ray surface sterilization is the sterilization system that can accurately respond to these requests.
Steri-EYE S
Surface Sterilization
- Short time sterilization with a simple treatment process, that doesn't allow the microbes to get in.
- Easily integrated into the manufacturing line.
- Works with various shapes of containers.
This is used in various fields as an effective sterilization method with the characteristics of its superb sterilization effect, economical features, and practicality.
Product Lineup of the Surface Sterilization Device
Surface Sterilization Device
It emits strong sterilization rays and creates a clean and hygienic environment.
End Parts Water Cooling Method UV Sterilization Device
Low cost and space-saving new type UV irradiator.

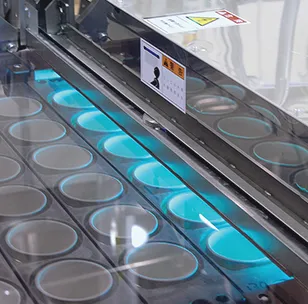

Conveyor System for Surface Sterilization
Integrated the ultraviolet rays sterilization device and conveyor, and demonstrates a more effective sterilization effect.
Pulsed Xenon Irradiation Device
This is a new light sterilization system that effectively and immediately irradiates with a pulse flash of xenon lamp which has a high sterilization feature.
Insert Type Pulsed Xenon
Insert the xenon flash lamp directly into the inside of a container and flash it there, it can evenly irradiate the ultraviolet rays even if it's a deep shaped container.
Pulsed Xenon Decontamination System for Nested Tub
An automated robotic decontamination system for nest tubs used to transport syringes and other pharmaceutical containers.
High Pressure Mercury Sterilization Device (Hyper G™)
Using the high pressure mercury lamp as a light source, this device can run a high level sterilization with its space-saving body.
UV Outer Surface Decontamination System for Packaging Bags
A UV pass box designed to reduce contamination risks by decontaminating the outer surfaces of packaging bags before raw materials and containers are transferred into aseptic processing and filling lines.
UV-C LED Surface Sterilization Device
UV-C LED technology delivers effective disinfection while significantly reducing maintenance requirements compared with conventional UV lamp systems.
Comparison of the Each Sterilization Device
| Type of device | Low pressure Conventional type Low pressure mercury lamp (High power 100 type) |
High pressure Hyper G High pressure mercury lamp (1000W) |
Pulsed Xenon Xenon flash lamp (500J type) |
EB Electron beam (Low energy type) |
|---|---|---|---|---|
| Sterilization level (Processing speed) Black mold Sterilization rate 99.9% |
Sterilization (6 seconds) | Sterilization (1 second) | Sterilization (1 second or less) | Sterilization (0.1 seconds or less) |
| Thermal effect on the substrate | Small | Medium | Small | Small |
| Treated Object | Gas/Surface/Liquid | Surface/Liquid | Surface/Liquid | Gas/Surface/Liquid |
| Device size (Irradiator) |
Medium | Small | Small | Large |
