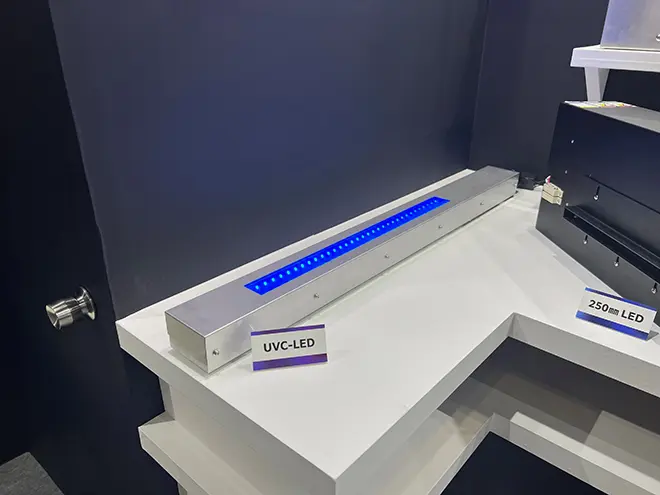

UV-C LED Surface Sterilization Device

Mercury-free and energy-saving

What is a UV-C LED Surface Sterilization Device?

This new Sterilization Device uses LED lamps for UV-C sterilization, making it mercury-free and contributing to reduced environmental impact. Compared to conventional ultraviolet lamps, the UV-C LED system can be switched on and off instantly and has a long lifespan, allowing it to be turned on only when needed, significantly reducing both power consumption and lamp replacement costs.

Equipped with a 265nm wavelength UV-C LED.
Capable of processing 900 bottle caps (outer diameter ø30mm) per minute.
Can inactivate Bacillus subtilis spores (NBRC3134/ATCC6633) by more than 3 logs and by more than 99.9%.
Mercury-free and chemical-free sterilization.

Features

Flexibility in placement, optimization for the target object
Its flexible placement allows for customization to match the production line layout, and the irradiation design, optimized for the shape, material, and transport conditions of the target object, ensures consistently high sterilization performance.
No shutter required
Because UV-C LEDs can be switched on and off instantly, the mechanical shutter required in conventional UV lamp systems is unnecessary.
In-line productivity improvement
By eliminating line stoppages and external processing, we achieve a significant increase in productivity through continuous production.
Equipped with a 265nm wavelength UV-C LED
The difference in sterilization performance due to the use of LED wavelengths is minimal, resulting in a more stable sterilization effect.
Environmentally conscious design (mercury-free, energy-saving)
By using a UV-C LED system that uses no mercury whatsoever, we have created a sustainable sterilization system that minimizes environmental impact.

specification

				A	B
irradiator	irradiator	External dimensions W x H x D (excluding protrusions)	[mm]	583 x 116.5 x 63	1183 x 116.5 x 63
		Irradiation width	[mm]	200	800
		mass	[kg]	8	16
		Surface finishげ		SUS304/2B
	cooling water	Cooling water amount	[ℓ/min]	6-8	12-15
	cooling water	cooling water temperature	[℃]	23-25 (Water supply is stopped when the lights are off to prevent condensation)
	Terms of use	Humidity temperature	[℃]	5-40
	Terms of use	Relative humidity	[%RH]	35-80% (No condensation)

power supply	power supply	External dimensions W x H x D	[mm]	600 x 1000 x 700
	power supply	mass	[kg]	130以下	166以下
	Terms of use	Humidity temperature	[℃]	5-35
	Terms of use	Relative humidity	[%RH]	35-80%
	Chiller	External dimensions W x H x D	[mm]	483 x 307 x 680	483 x 396 x 686
	Chiller	mass	[kg]	40	46
