Surface Sterilization Device
Steri-EYE S
High power surface sterilization device MHG / Product Lineup

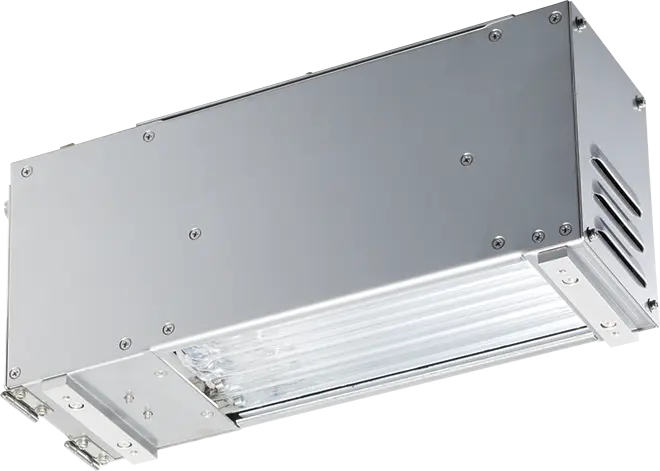

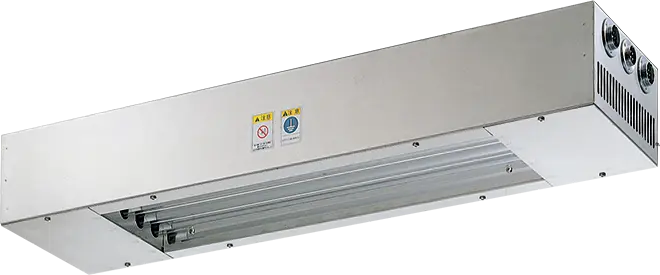

High output irradiator: Specifications
| No. of lamps | Model | Dimensions (mm) | Weight (kg) | Compatible lamps | Structure | |||
|---|---|---|---|---|---|---|---|---|
| Width | Height | Depth | Window | |||||
| 3 x 60W lamps | GME6003A0 | 230 | 120 | 535 | 120 x 400 | 12.0 | QGL60-2X | Bottom-emission type |
| 1 x 100W lamp | GME10001A0 | 180 | 130 | 900 | 40 x 600 | 9.0 | QGL100-2X | Bottom-emission type |
| 2 x 100W lamps | GME10002A0 | 180 | 130 | 900 | 80 x 600 | 9.0 | QGL100-2X | Bottom-emission type |
| 3 x 100W lamps | GME10003A0 | 220 | 130 | 900 | 120 x 600 | 10.5 | QGL100-2X | Bottom-emission type |
| 4 x 100W lamps | GME10004A0 | 220 | 130 | 900 | 160 x 600 | 11.0 | QGL100-2X | Bottom-emission type |
| 5 x 100W lamps | GME10005A0 | 300 | 130 | 900 | 200 x 600 | 12.5 | QGL100-2X | Bottom-emission type |
| 6 x 100W lamps | GME10006A0 | 300 | 130 | 900 | 240 x 600 | 13.0 | QGL100-2X | Bottom-emission type |
| 1 x 120W lamp | GME12001AT | 100 | 140 | 320 | 84 x 200 | 4.0 | QGL120U-2A | Bottom-emission type |
(Note) The size of the irradiator unit is the same for 1-2 lamps, 3-4 lamps, and 5-6 lamps.

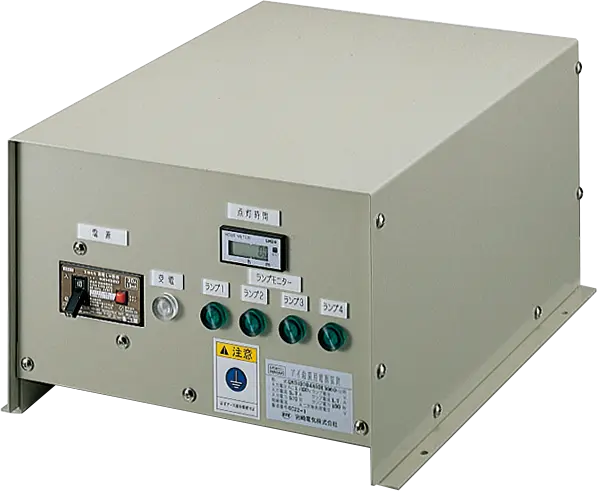

High output power supply: Specifications
| No. of lamps | Model | Voltage (V) | Frequency (Hz) | Energy Consumption (W) | Dimensions (mm) | Weight (kg) | ||
|---|---|---|---|---|---|---|---|---|
| Width | Height | Depth | ||||||
| 3 x 60W lamps | GMB6003A10X | 100(200) | 50/60 | 250 | 310 | 200 | 500 | 14 |
| 1 x 100W lamp | GMB10001A10X | 250 | 340 | 200 | 350 | 9 | ||
| 2 x 100W lamps | GMB10002A10X | 400 | 340 | 200 | 350 | 10 | ||
| 3 x 100W lamps | GMB10003A10X | 550 | 340 | 200 | 500 | 14 | ||
| 4 x 100W lamps | GMB10004A10X | 700 | 340 | 200 | 500 | 15 | ||
| 5 x 100W lamps | GMB10005A10X | 800 | 340 | 200 | 700 | 20 | ||
| 6 x 100W lamps | GMB10006A10X | 1000 | 340 | 200 | 700 | 21 | ||
| 1 x 120W lamp | GMB12001A10X | 100 | 320 | 340 | 200 | 350 | 12 | |
(Note) The power supply case is the same for 1-2 lamps, 3-4 lamps, and 5-6 lamps. *The power supply controls only the lighting of the lamps. For external operation, please contact us separately.
*UV lamps can also be treated (coated with fluororesin) to prevent shattering in the event of breakage.
Handling / Usage Precautions
- Exercise due caution as UV rays from the germicidal lamps can be highly dangerous if eyes or skin are exposed to them.
- UV light emitted by the high power surface sterilizer is very strong; do not look directly at the lamp or at the reflected light when it is operating.
- Install the control unit in a cool, well-ventilated location. (Please consult us if the ambient temperature exceeds 30℃ .)
- Use purified or pure water as the cooling water.
