LEDioc FL400 / FL200

LEDioc FL400 / FL200
Vibration proof type
  •  Quickly reaches full brightness
  • Proprietary light distribution control technology allows for outstanding light concentration
  • Reflector & globe finish allows for 3 types of intensity distribution: narrow, medium and wide beams
  • 400W (FL400)/200W (FL200) LEDs capable of delivering brightness equivalent to 1,000W/400W metal halide lamps respectively
  • Lumen maintenance factor of 85% up to 40,000 hours at 35°C
  • Highly efficient/high-powered COB-type LED package
  • Vibration proof type available

Product Series

LEDioc FL400

Product data sheet

LEDioc FL400 Anti-Vibration model

Product data sheet

LEDioc FL200

Product data sheet

LEDioc FL200 Anti-Vibration model

Product data sheet

Specifications

  • Operating Temperature Range: -20 to +40°C
  • IP Rating: IP65
  • Certification: CE

Optical

  • 1/10 Beam Angle: 18°, 50°, 100°
  • Lumen Maintenance (L85): 40,000 hours at 35°C

Electrical

  • Input Voltage: 200 - 240V
  • Surge Protection= 6kV (Line - Line, Line - Ground)

Mechanical

Body Die-Cast Aluminium
Reflector Polycarbonate
Front Cover Acrylic (Narrow, Medium = Clear)
(Wide = Frosted)
Arm with Stand Steel Plate (Hot Dip Galvanised)
Finish Colour Metallic Grey

Dimensions / Weight

  • 1) FL400: W: 504×H: 463×D: 398mm
    2) FL200: W: 395×H: 382×D: 360mm
  • 1) FL400: 22kg
    2) FL200: 13kg

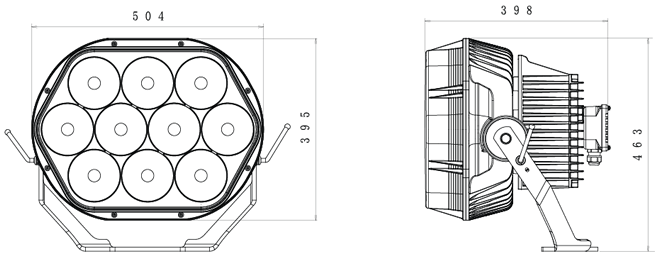

FL400

FL400

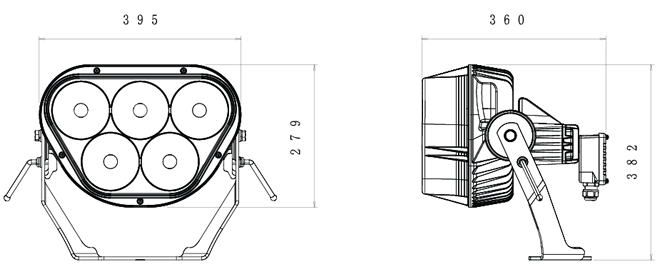

FL200

FL200
