Water Sterilization

Steri-EYE W
Running Water Sterilizer

Easy navigation and stable output. Powerful large quantity treatment feature enables speedy sterilization.

This is an ultraviolet ray sterilization device that can treat a large quantity of water such as liquid or industrial water for food material raw water.
Compared to the costly heat sterilization or chemical sterilization that affects water quality, this device enables ecological sterilization at a low cost, easily, and at room temperature.

Product Lineup

Characteristics

Huge energy savings compared to conventional products.

When processing 10 tons/hour, the number of lamps is only 1 (conventionally 3), power consumption is 180W (conventionally 480W). The electricity cost is reduced by approx. 62% per year.

* Compared to our conventional products (An example for 110W & 1 lamp)

Comparison Examples

• *1: Electricity unit price is calculated at 25 yen/kWh

Adopted the new lamp resistant to the temperature change

We adopted the new high power sterilization lamp that wouldn't be affected by the water temperature fluctuation. It keeps a consistent illuminance. The lamp life (average) is very long, lasting 13000 hours.

* Conventional product QGL120W-2: 8000 hours

Water Temperature Characteristics of UV Output (253.7nm)

* Relative ratio when the ultraviolet ray illuminance is 100% at a water temperature of 15℃ with QGL110-21A/SE.

Compact size but increased treating quantity

On top of the adoption of the new lamp, with the redesign based on the evaluation method (actual flow quantity examination) accredited by Japan Water Research Center (JWRC) and the simulation analysis, we achieved the increased treating quantity.

* Evaluation method: Evaluation method of the chlorine-resistant pathogenic organisms using ultraviolet ray.

Reliable Made In Japan Quality

All equipment, lamps, and ballasts are guaranteed by our own domestic products. We also respond quickly to the supply of consumables.

Iwasaki Electric's Technology

Reliable know-how of the lamp manufacturer

Achieved highly reliable product design by making full use of Iwasaki Electric's unique test and analysis technology that pursues optimal match-up for the lamp characteristics.

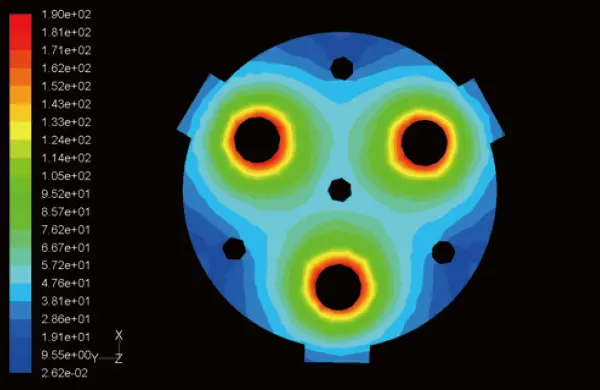

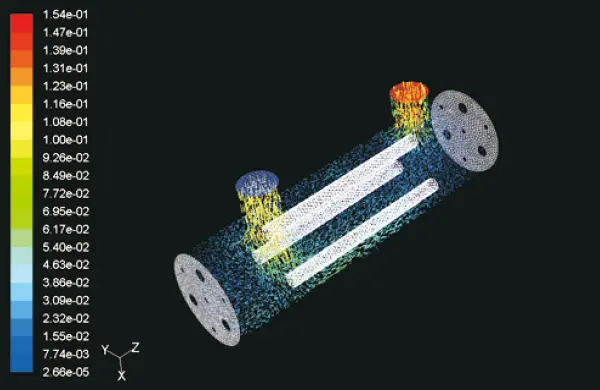

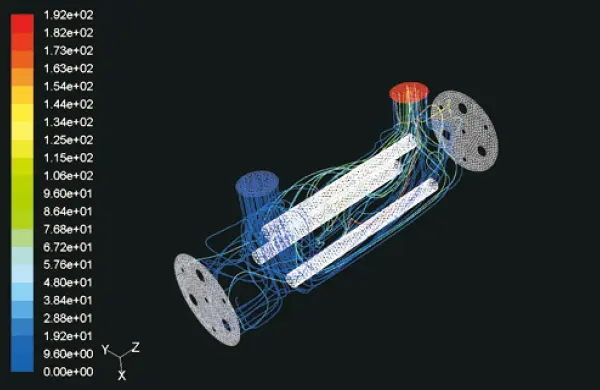

Simulation by *CFD software (One example)

* CFD ... Computational Fluid Dynamics

Fully equipped with water treatment experiment facility

We are fully equipped with one of Japan's largest water treatment experiment facilities.
