Water Sterilization
Tank Sterilization Device
Steri-EYE T
We answer to the various needs of tank sterilization.
Iwasaki Electric's sterilization system for the tanks with external lighting type and immersion type, can meet the various needs related to the tank sterilization such as sterilization of liquid, liquid surface, tank wall surface, and air on the liquid surface. It keeps the clean environment with a low cost even for long-term storage.
Characteristics
Depending on the purpose of each tank, you may use 2 systems (liquid sterilization and liquid + arit sterilization) at the same time.
- Immersion type sterilizing device = Liquid sterilization system that can sterilize the tank for a long period of time and is also effective in suppressing the growth of bacteria during storage.
- External sterilizing device = Liquid surface, air in the tank, and inner wall can be sterilized.
Applications
Food Industry
Sterilization of flavoring raw water (salt solution and sugar solution), storage of dissolved chlorine water (for brewing and bio-experiment), storage of water after heat sterilization (prepared water after food processing)
Pharmaceutical Industry
Storage of distilled water, ion-exchanged water, and pure water (for pharmaceuticals, medical use, and biotechnology)
* Please inquire if you are using it for the saline, etc.
Application Example for the Use and System
Immersion type
Liquid sterilization: For small tanks.
Irradiate when the liquid is full.
Immersion type
Liquid sterilization: For medium-sized tanks.
The number of devices is determined by the size and shape of the tank.
Externally illuminated type
Sterilization of the liquid surface and air on the liquid surface: The inner wall surface of the tank is also sterilized at the same time. Spiral type for small tanks, straight pipe type for medium and large tanks.
* Can be applied according to the size and use of the tank.

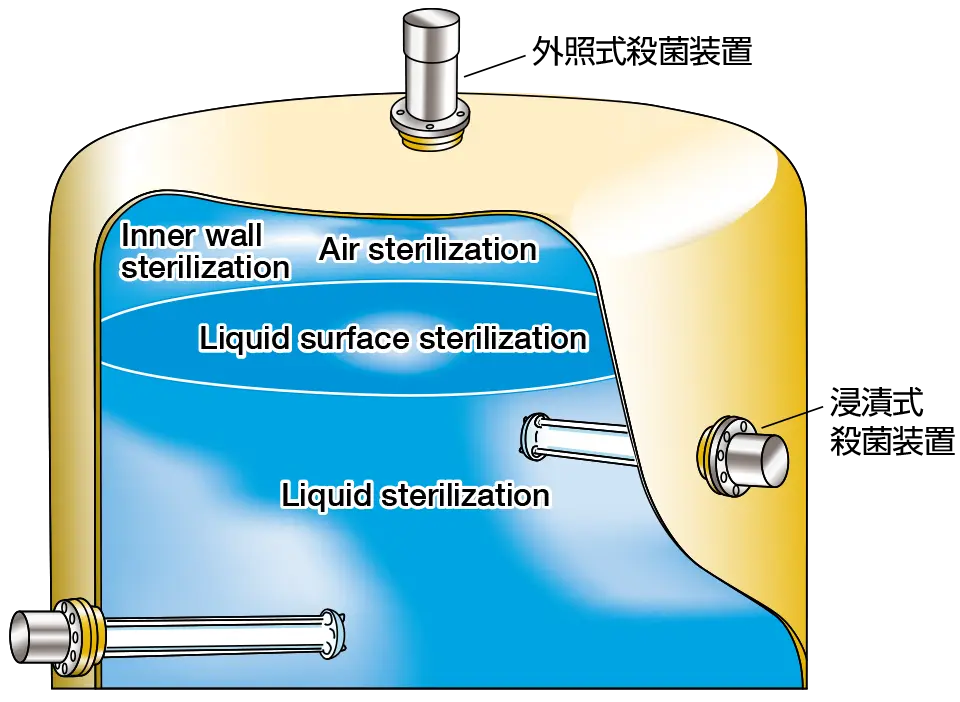

Application for Each Tank
The combination of the external lighting type and the immersion type further expands the application.
- Example of using two systems; immersion type and external illumination type
- Effectively sterilizes liquid, liquid surface, and air in the tank
Sterilization Performance
Ability to sterilize 99.9%
Black mold
* Please inquire if you are using it for the special liquid etc.
Bacillus subtilis
Sterilization Ray Irradiation Distribution
Estimated Installment Unit Number of Spiral Type Lamps
| Tank capacity | Shape (mm) | Number of installed lamps |
|---|---|---|
| 5m³ | ø1700 × H2200 | 1-2 lamps |
| 10m³ | ø2200 × H2700 | 1-2 lamps |
| 20m³ | ø2700 × H3500 | 2 lamps |
| 30m³ | ø3100 × H4000 | 2 lamps |
| 50m³ | ø3700 × H4700 | 2-3 lamps |
| 70m³ | ø4100 × H5300 | 3-4 lamps |
Contact
For UV sterilization solutions, trust Iwasaki Electric.
We develop custom solutions tailored to your needs.
