EYE Super Xenon Tester(Xenon lamp weather meter)

Xenon Tester is the standard climatic wear testing device under domestic and international standards such as ISO, JIS, and ASTM as its light source achieves spectral energy distribution that approximates sunlight which has high correlation to natural outdoor exposure.

With its high correlation feature as well as adjustable illuminance, Iwasaki Electric’s “EYE Super Xenon Tester” makes an easy to use testing device by improving the acceleration feature.

EYE Super Xenon Tester Lineup

XER-W85 (NEW)

Model compatible with high-intensity xenon testing (180W/m²)

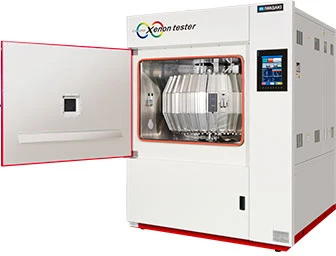

XER-W83-A

High-performance type that also complies with ASTM D 7869

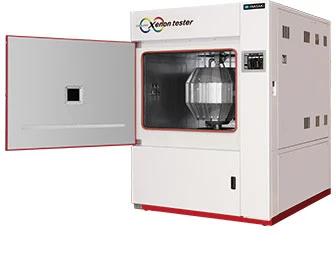

XER-W83

Standard Type

What is a xenon lamp weather resistance test device?
(What is a xenon lamp weather meter?)

What is a xenon lamp weather resistance test device? (What is a xenon lamp weather meter?) is a weather resistance test device that uses a discharge lamp (xenon lamp) filled with xenon gas as a light source. Of all accelerated weather resistance test devices, it has the spectral distribution closest to sunlight. Due to its high correlation with outdoor exposure that is close to sunlight, it has become the most standard weather resistance test device internationally. In Japan, the switch from the once mainstream open frame carbon arc weather resistance testers to this weather resistance test device is progressing, and its introduction is increasing.

Japanese Industry is Shifting to the Xenon Lamp Method.

In Japan, it was the industry mainstream to use carbon arc lamp method (Ultraviolet rays carbon arc lamp method, or sunshine carbon arc lamp method) for climatic wear testing devices. These testing devices are used in various places. The main reason for this is that there are various accumulated data in each industry or companies, and changing the testing device runs the risk of not being able to use the data anymore. But for the following reasons, the industry is shifting to the xenon lamp method.

  1. Countries outside of Japan mainly use xenon lamp method, so it is necessary to test in xenon for those companies who work with overseas companies/industries.
  2. The xenon lamp method is becoming mainstream of the testing for JIS Standard. It is common to use xenon lamp method for ISO.
  3. Xenon lamp method only requires maintenance about once a month if you have the right facility.
  4. In regards to the acceleration feature, it was said to be that the carbon method was better than xenon lamp method, but since the release of the high illuminance type xenon lamp method climatic wear testing device, the acceleration has become about the same or better. (It depends on the illuminance of the xenon lamp method, or the filter of the carbon type.)

EYE Super Xenon Tester Spectral Energy Distribution

What is a xenon lamp?

A xenon lamp is an artificial light source that uses light emitted by discharge in xenon gas. Its spectral distribution consists of a uniform continuous spectrum from the ultraviolet to the visible range and a strong line spectrum in the near infrared range, and the visible range in particular is close to natural daylight, so it is also used as a light source that approximates sunlight.

Temperature and Humidity Characteristic of the EYE Super Xenon Tester

Relations between the settable black panel temperature value and humidity value during irradiation

Relations between the settable black panel temperature value and humidity value in the darkness

Compliance Standard for a Climatic Wear Testing Device Using Xenon Arc Lamp Method

The xenon lamp method was also adopted for the paint general test methods of JIS standard for paints, plastics, building materials, fibers (dyeing fastness, blue scale, gray scale), etc. This is also compliant with JASO (Japanese Automotive Standards Organization).

EYE Super Xenon Tester can be compliant for the following standards’ tests by using the standard model or by adding optional parts.

Paint Related

  • IJIS K 5600-7-7(ISO 11341)
  • IJIS K 5101-09(ISO 787/15)
  • IASTM D 4303

Plastic Related

  • IJIS K 7350-2(ISO 4892-2)
  • IASTM D 2565
  • IASTM D 4459
  • IASTM D 5071

Fiber Related

  • IJIS L 0843
  • IISO 105B-02
  • IAATCC 169
  • IASTM D 4355

Automotive Related

  • IJASO M 346
  • IJASO M 351
  • IISO 3917
  • ISAE J 1885
  • ISAE J 2412

Other

  • IJIS B 7754
  • IASTM C 732
  • IASTM D 4434
  • IASTM D 4637
  • IASTM G 26

* This doesn't mean that it all complies with all of the testing criteria of the above standards.

JIS
Japanese Industrial Standards
ISO
International Organization for Standardization
ASTM
American Society for Testing and Materials
AATCC
The American Association of Textile Chemists and Colorists Standards
JASO
Japanese Automotive Standards Organization
SAE
American Society of Automotive Engineers Standards

Names of the main standards

  • JIS K5600-7-7: Testing methods for paints
    • Part 7: Long-period climatic wear performance
    • Section 7: Accelerated climatic wear (Xenon lamp method)
  • ISO 787/15: General methods of test for pigments and extenders - Part 15: Comparison of resistance to light of colored pigments of similar types
  • ASTM D 4303: Standard test methods for lightfastness of colorants for pigments used in art paints.

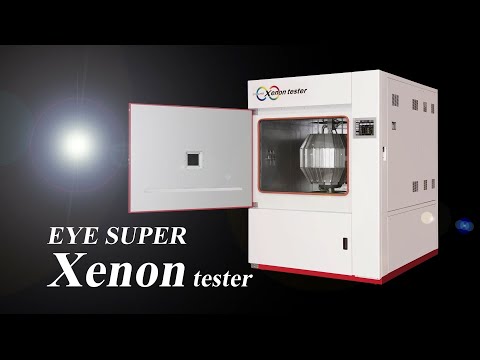

[Video]Super Accelerated Weathering Tester “EYE Super Xenon Tester”
