Compact electron beam irradiation device
EYE Compact EB
Low Cost and Compact EB Experiment Machine
The Power of Electron Beam Technology Across Industries
Enabling initiator-free and solvent-free instant curing, surface modification, crosslinking, sterilization, polymer curing, and decarbonization.
The "EYE Compact EB" is a product developed to make electron beam irradiation more accessible and convenient to use. Electron beam irradiation is used in research and development in various fields, including surface modification of materials, sterilization, curing of inks and coatings, graft polymerization, and crosslinking.
Conventional large-scale electron beam irradiation systems require a lot of space, making installation time-consuming and costly. The "EYE Compact EB" achieves short delivery times and low prices by packaging all the necessary functions for research and experimentation.
In recent years, the world has been striving for a decarbonized society (carbon neutrality). Electron beam irradiation is attracting attention as a new tool that can significantly reduce CO₂ emissions compared to thermal drying.
- In addition to EYE Compact EB, we can also handle the production of large-scale equipment such as production lines.
- Because we own equipment such as EYE Compact EB, large batch-type equipment, and roll-to-roll production lines, we not only sell equipment but also provide contract manufacturing and irradiation services for testing purposes.

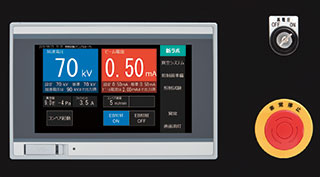

Simple Operation

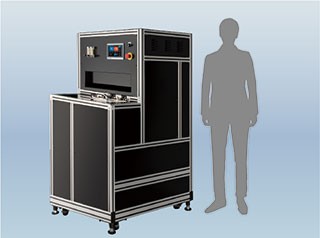

Compact
Small and lightweight with casters, and easy to install in your lab
Safety

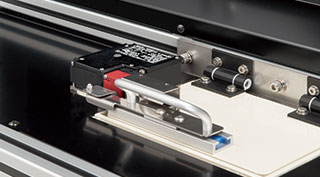

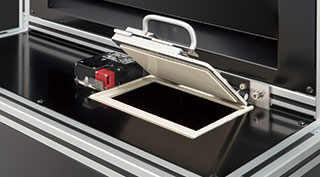

Self-shield and interlock
Environmentally Friendly
It does not use greenhouse effect gas (SF₆).
Application example
It can be used in research and development in various fields.
Curing/polymerization
- Electrical and electronic materials ⇒ Recording media such as magnetic tape
- Printing and Packaging ⇒ Coated packaging paper, packaging cartons, flexible packaging printing
- Architecture ⇒ Decorative sheets, wallpaper
Graft polymerization
- Electrical and electronic materials ⇒ Trace gas removal filters for semiconductor manufacturing processes
- Clothing and Textiles ⇒ Functionality added to textiles such as deodorizing, antibacterial, moisture-absorbing and heat-generating, and cooling sensation.
Bridge
- Food and Beverages ⇒ Food-grade heat-shrinkable film, cooking utensils
- Electrical and electronic materials ⇒ Heat shrink tubing for electrical wires, heat-resistant insulating tape, semiconductor films
- Medical ⇒ Wound dressings
sterile
- Food and Beverages ⇒ PET bottles for beverages, packaging materials
- Medical ⇒ Sterilization of the exterior of small drug containers, syringes, etc.
Basic Specifications
- Product Name
- EYE Compact EB
- Model
- EC90/10/50L
- Acceleration Voltage
- 50-90kV (adjustable in 10kV increments)
- Beam Current
- 0.1 to 2 mA (acceleration voltage of 90 kV)
- Effective Irradiation Span
- 100mm
- Processing Power
- 500kGy・m/min(acceleration voltage of 90 kV) *Based on our measurement methods
- Irradiation Method
- Tray-based batch processing
- Tray Transportation Speed
- Select from 1 , 2 , 3 , 4 , 5 , 10 , 15 , 20 , 25 , 30m/min
- Power Supply
- Single-phase 200V (Class D grounding)
- Utilities Required
- Cooling water; compressed air; nitrogen gas or dry air
- Dimensions (mm)
- W845 x D915 x H1615
- Weight
- approx. 450kg
- Key Options
- Oxygen concentration meter; cooling water circulation device; compressor
- Oxygen analyzer, cooling water circulation apparatus, etc.
Comparison of Standard Model and EYE Compact EB
- AStandard Model: EC250/15/180L
- BEYE Compact EB: EC90/10/50L
- weight
-
- A
- 3500kg
- B
- 450kg
- Less than 1/6 of the weight
- Volume (external dimensions)
-
- A
- 7m³
(W1750 x D2000 x H2000mm) - B
- 1.25m³ (W845 x D915 x H1615mm)
- Less than 1/5 of the volume
- Processing power
-
- A
- 1800kGy・m/min.
- B
- 500kGy・m/min.
- Maintains sufficient performance.
Contact
For crosslinking, polymerization, and sterilization using electron beams (EB), trust Iwasaki Electric.
We develop custom solutions tailored to your needs.
