EB (Electron Beam)
EB Unit Lineup

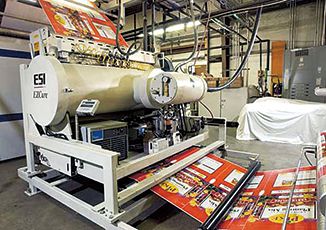

EZCure Series
Low voltage (90 kV - 110 kV) high performance production machine best suited for thin film processing
Production Machine
(Unit Specification Examples)
- Model
- EZ110/60-165/1000
- Acceleration Voltage
- 90 - 110 kV
- Irradiation Width
- 600 - 1650 mm
- Max. Irradiation Capacity
- 10000 kGy・m/min. (when 100 kV)
- Processing Method
- Web process
Customized Machine
- Acceleration Voltage
- 80 - 300 kV
- Irradiation Width
- 150 - 2500 mm
*We custom-design according to your needs.
EYE Compact EB
Low cost and compact EB experiment machine of future
- Product Name
- EYE Compact EB
- Model
- EC90/10/50L
- Acceleration Voltage
- 50-90kV (adjustable in 10kV increments)
- Beam Current
- 0.1 to 2 mA (acceleration voltage of 90 kV)
- Effective Irradiation Span
- 100mm
- Processing Power
- 500kGy・m/min(acceleration voltage of 90 kV) *Based on our measurement methods
- Irradiation Method
- Tray-based batch processing
- Tray Transportation Speed
- Select from 1 , 2 , 3 , 4 , 5 , 10 , 15 , 20 , 25 , 30m/min
- Power Supply
- Single-phase 200V (Class D grounding)
- Utilities Required
- Cooling water; compressed air; nitrogen gas or dry air
- Dimensions (mm)
- W845 x D915 x H1615
- Weight
- approx. 450kg
- Key Options
- Oxygen concentration meter; cooling water circulation device; compressor
- Oxygen analyzer, cooling water circulation apparatus, etc.
EYE Light Beam
Experiment machine for curing inks and resins, film cross-link, disinfection of packaging materials
- Model
- EC110/15/10mA
- Acceleration Voltage
- 80 - 110 kV
- Beam Current
- 1 - 10 mA
- Effective Irradiation Width
- 150 mm
- Processing Method
- Batch Process
- Body Dimensions
- W 910 x D 1600 x H 1800 mm
Standard EB Experiment Machine
(Unit Specification Examples)
- Model
- EC250/15/180L
- Acceleration Voltage
- 150(80) - 250 kV
- Irradiation Width
- 150 mm
- Max. Irradiation Capacity
- 1800kGy・m/min.
- Tray Size
- W 150 x D 200 x H 25 mm
- Processing Method
- Tray Conveyor Method
- Body Dimensions
- W 1750 x D 2000 x H 2000 mm
- Machine Weight
- Approx. 3500 kg
* We also offer machines with 300 mm irradiation width. (Contact us for details on weights and dimensions.)

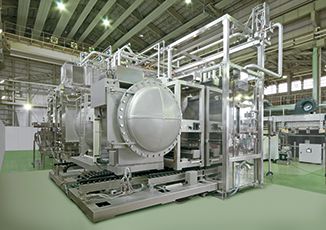

EB Unit for PET Bottle Disinfection
EB Unit for PET Bottle Sterile Filling System
Disinfection of PET bottles of complex shapes is now possible.
