EB (Electron Beam)

Irradiation and Testing Service

We can assist you from prototyping to mass production using Iwasaki Electric's EB equipment. Even if you're hesitant about suddenly installing EB equipment, don't worry. At the Iwasaki Electric EB factory, we support our customers from research and development to product production through EB irradiation services using our EB equipment. Please feel free to consult us about anything, from prototype production and technical studies for improving existing products to mass production. We provide total support from goal setting to product realization.

Contract testing is now available in the western Japan area as well.

Otsuka Techno Corporation has started accepting contracts for electron beam irradiation testing using Iwasaki Electric's EB experimental equipment.

Facilities

Experiment machine

Acceleration Voltage

80 - 250 kV

Irradiation Width

300 mm

Irradiation Method

Tray conveyor

Tray Size

[A type] 300 mm x 300 mm x 23 mm (depth)
[B type] 200 mm x 150 mm x 38 mm (depth)

• * Best for R&D and small sample production.
• * There are other types.

[A type] is installed at Iwasaki Electric EB Factory. and [B type] is installed at Otsuka Techno Corporation.

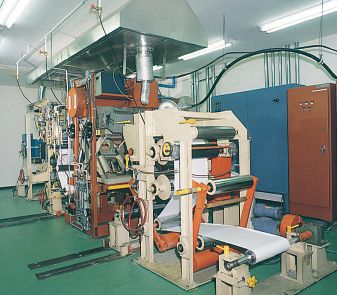

Pilot Line

Acceleration Voltage

100 - 200 kV

Irradiation Width

450 mm
For gravure coating and lamination

Auxiliary Equipment

corona treatment device, paint heating device, heater, and etc.

• * Best for small scale continuous trial production.

Installed at Iwasaki Electric EB Factory.

Production Line

Acceleration Voltage

Max. 300 kV

Irradiation Width

1650 mm

• Multi-purpose line installed
• Installed in a simple clean room

• * Suited for trial of large scale production and contract processing/manufacturing.

Installed at Iwasaki Electric EB Factory.
