Airflow UV purification device
Airlia ceiling

Removes mold and fungi with the power of light

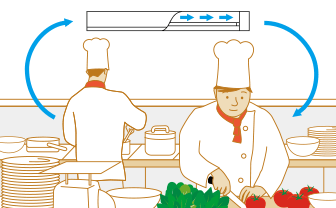

Instead of directly irradiating with ultraviolet rays, it is a method to sterilize while circulating the indoor air with a fan.

Since there is no effect of ultraviolet rays on the human body, it is possible to maintain a clean indoor environment by constantly running the device, providing a clean and comfortable environment for food factories and medical facilities.

topic

Effectiveness of the UV lamps used in the Airlia series against COVID-19

Click here for details

Characteristics

  • Powerful air disinfection performance
  • Safe for continuously occupied spaces
  • Chemical-free operation
  • Long-life 8,000-hour UV lamp
  • Low operating and maintenance costs
  • Supports food preservation and hygiene
  • Helps reduce airborne microorganisms

Applications

  • Food Processing Plants
  • Restaurants & Commercial Kitchens
  • Schools & Cafeterias
  • Hospitals & Healthcare Facilities
  • Livestock & Poultry Farms
  • Electronics Manufacturing & Cleanrooms
  • Daycare Centers
  • Nursing Homes & Senior Care Facilities

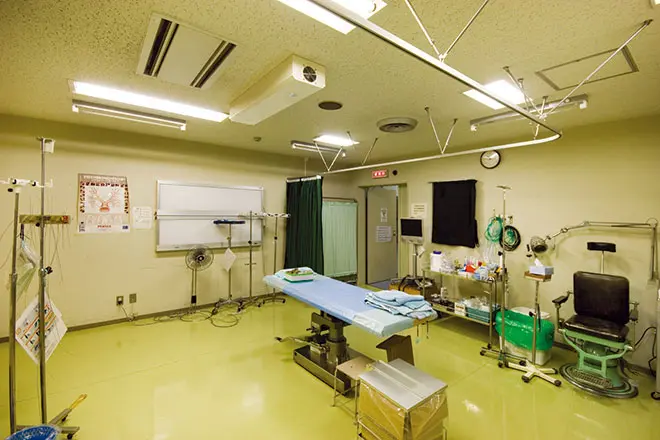

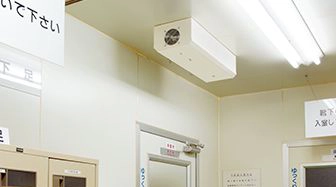

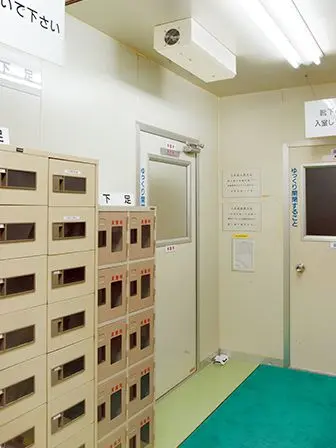

Case studies

Airlia ceiling: Specifications

Dimensions (mm)

Coverage guide (for Unit selection)

1 unit: up to 100 m³

*Reference capacity based on reducing Bacillus subtilis to 1/100 after 12 hours under controlled test conditions. Actual results may vary.

Model
FZS15205GL15/16
Production type
Made-to-Order
Application
Disinfection of airborne bacteria
Sterilization method
UV light + fan ventilation system
Voltage
100V
Frequency
50/60Hz
Power consumption
53.1W (50Hz), 45.2W (60Hz)
Airflow
1.1m³/min
Compatible lamps
GL15 x 2
Material
Steel
Weight
6.6kg

Compatible lamps: specifications

Model
GL15
Lamp output
15W
Tube diameter
ø25.5mm
Total length
436mm
Emission length
348mm
Lamp current
0.3A
Lamp life
8000h
Cap
Pin type

Circulation Test Data

Kitasato Research Center for Environmental Science (Japan) (Report number: 北生発 26_0309)

Test Description

  • Test chamber volume: 25 m³
  • Test microorganism: Bacillus subtilis spores (ATCC 6633)
  • Airborne microorganisms were dispersed inside the chamber and sampled at predetermined time intervals.
  • Microbial counts were measured and compared over time during operation of the unit.

Airborne Bacteria Number (CFU/50 L-air) for Each Elapsed Time

Test conditions Hours (minutes)
0 30 60 90 120 180
Natural attenuation (control) 41000 22000 48000 26000 58000 17000
Air circulation type ultraviolet ray air purifier (15W 2 lamps) 22000 22000 4900 2800 1200 150

Rate of decrease in the number of bacteria per elapsed time

Handling / Usage Precautions

  • This product is not a medical device.
  • The actual disinfection or purification effects can change depending on the condition or the use of the room.
  • The UV (disinfection) lamp contains a very small amount of mercury. Please be careful when handling the glass, and dispose according to each communities' collection categorization rules.
  • Please note that the device's fan will emit a sound, so be careful when using it in quiet areas such as libraries and museums.
  • This product requires permanent hardwired electrical installation and must be installed by a qualified electrician in accordance with local electrical codes and regulations.
  • Never look directly or indirectly at the lamp while it is illuminated. Avoid exposure to reflected UV light as well. Failure to do so may result in eye pain or visual impairment.
  • Do not expose skin directly or indirectly to UV radiation. Doing so may cause skin inflammation or irritation.
  • Always switch off the power before replacing the lamp or performing maintenance. Failure to do so may result in electric shock, eye pain, visual impairment, or skin inflammation.
  • If smoke, an unusual odor, or any abnormal condition occurs, immediately switch off the power and contact your installer or the nearest sales office.
  • Dust and dirt on the lamp or the reflector surfaces will reduce disinfection performance. Clean them with a soft cloth lightly moistened with a diluted neutral detergent, then wipe dry with a clean cloth to remove any detergent residue.
  • Do not modify or disassemble the unit. Doing so may result in fire or electric shock.
  • Do not wash the unit with water during maintenance or cleaning. Doing so may result in fire or electric shock.
  • This product is designed for indoor use only. Do not use it outdoors or in locations exposed to water or excessive moisture. Failure to do so may result in electric shock due to insulation failure.
  • Do not insert metal objects or flammable materials into any openings of the unit. Doing so may result in fire or electric shock.
