Products

EYE / Iwasaki has developed a family of Solar Simulation products to address the most demanding test requirements. Regardless of your particular application, EYE can provide a lighting solution that fits your needs and your budget. We can work with you to provide anything from a simple Solar Simulation lighting array to complete turn-key software controlled systems. EYE / Iwasaki is a vertically integrated company. We design and manufacture the lamps, ballasts and control system. We take full responsibility to ensure that your system delivers the optimum performance and value.

Solar Simulation Equipment

EYE / Iwasaki solar radiation systems use our proprietary metal halide lamps that provide adjustable power output levels to allow more precise test control

• Our new 400W metal halide lamp meets American Environmental Protection Agency (EPA) standards and provides the most efficient, high output power at an affordable initial cost.
• Solar radiation intensity is adjustable by the control unit. Lamp power can be regulated from 80% to 100%.
• The power controller precisely regulates the lamp power eliminating the need to raise and lower the lighting bank.
• The lighting is powered by an electronic inverter system that allows smooth lamp power adjustment while providing a compact, light weight system.
• Iwasaki's extensive global industrial optics technology experience guarantees complete system reliability.
• Our proven approach to system planning, design, manufacture, installation and maintenance ensures your system will deliver as promised.

Spectral Distribution

EYE / Iwasaki Solar Simulation systems deliver unparalleled spectral distribution for thermal simulation most similar to natural daylight. Lighting environment planning can be done in confidence.

• High output, adjustable, solar radiation intensity
  400W/m2 to 1150W/m2; EPA standard level equivalent 850+/- 15%.

• Broad Control Capability
  Solar radiation intensity is controllable by lamp power output and pattern adjustment for accurate and repeatable testing.

• Long Duration Testing
  Our proprietary lamp and ballast systems enable stable solar radiation power to be maintained over an extended period.

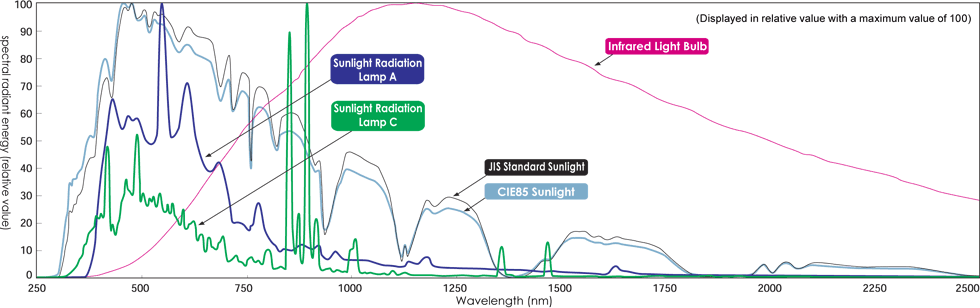

Spectral distribution of standard sunlight and light source for testing machines

• Sunlight specified by JIS to express the output characteristics of JIS Standard Sunlight / Solar Batteries.
• Sunlight specified by CIE (International Commission on Illumination) for CIE85 Sunlight / Testing Machines.

EPA Standard Spectrum Energy Distribution

Standard of sunlight device in automobile exhaust gas tests specified by the EPA standard / EPA (US Environmental Protection Agency)
