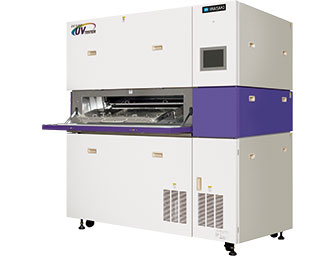

EYE Super UV Tester

EYE Super UV Tester
EYE Super UV Tester

UV rays are the greatest cause of product deterioration. This unique system dramatically intensifies the deterioration acceleration caused by UV rays. It can achieve an acceleration factor greater than 100 times normal sunlight, producing material effects equivalent to extended outdoor exposure. Its compact size makes it ideal for research and development testing of paints, inks, pigments and fibers as well as plastics.

icon

Item EYE Super UV Tester
Irradiation range 190mm × 422mm
Light source Metal Halide Lamp (with filter)
UV intensity 150±8mW/cm²
Irradiated area variation Under ±10%
Temperature control (BP: black panel) +50℃ to +85℃ (during irradiation)
+35℃ to +75℃ (idle)
Humidity control 40%RH to 70%RH (during irradiation) at BP 63°C
50%RH to 90%RH (idle) at BP 50°C
Shower Available during condensation and after downtime (idle)

Features

  • Testing is accelerated to more than 10 times that of typical weathering chambers. Accurate and speedy weather-durability assessment is enabled by the uniform irradiation from our proprietary high intensity UV irradiation source.
  • The irradiation distribution is uniform. The output irradiation power is programmable and maintained by a feedback control circuit.
  • The system cuts wavelengths under 295nm. Negative influence by wavelengths that are not found in sunlight has been eliminated.
