Saitama Railway Corporation Urawa Misono Railyard

A change to LED for railyard lighting creates a bright and safe lighting environment while achieving large-scale reductions in power consumption / Saitama City, Saitama Prefecture

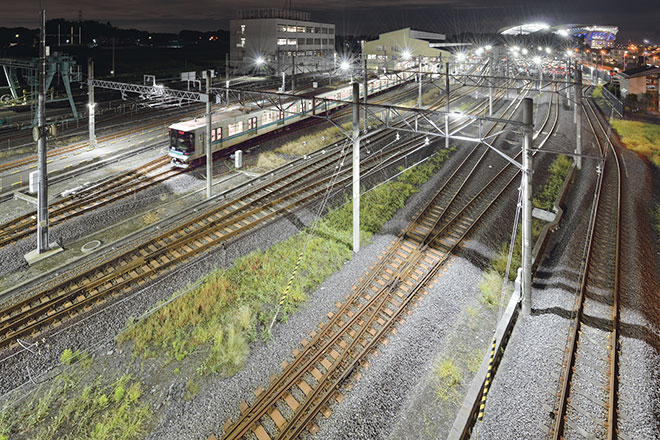

Urawa Misono Railyard at night with Saitama Stadium 2002 in the background. The LED lighting uses LED modules with an operating life of 60,000 hours to brightly light the entire space, contributing to maintenance savings.

Urawa Misono Railyard is a railyard on the Saitama Railway Line, located on the north side of the line's Urawa Misono Station. It has an area of 50,739.925m², and is used for carriage inspections and other work. As part of its promotion of power savings, the company carried out a change to LED lighting for the railyard in February 2017. Two units of 80W LEDioc FLOOD BLITZ LED floodlights were installed in place of the twin 400W mercury lamps that were previously installed on the power poles, while LEDioc FLOOD NEO and LEDioc FLOOD SPOLART lights were also installed depending on location to ensure a brightness equivalent to that of the previous lighting while also creating a lighting environment that contributes to maintenance savings. Power consumption has been reduced to less than half since the upgrade to LED lighting, and a bright and safe lighting environment has been realized while also achieving large-scale power savings.

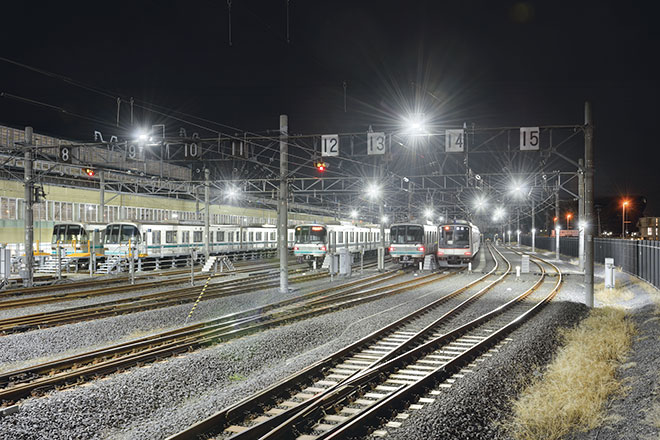

The area around the storage tracks is lit with LEDioc FLOOD BLITZ and LEDioc FLOOD NEO lights, ensuring sufficient brightness and increasing safety at night.

Two units of 80W LEDioc FLOOD BLITZ LED floodlights were installed in place of the existing twin 400W mercury lamps, ensuring equivalent brightness while also achieving large-scale power savings.

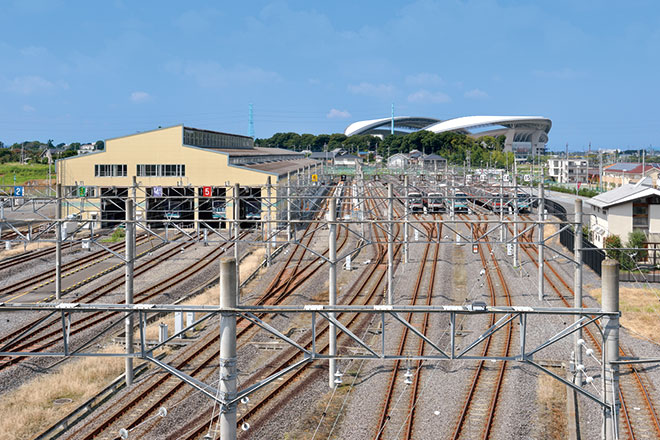

Urawa Misono Railyard during the day. It adjoins Urawa Misono Station, which is the closest station to Saitama Stadium 2002, Japan's largest dedicated soccer stadium.

Specification

LEDioc FLOOD BLITZ 80W - 70
LEDioc FLOOD NEO 130W - 13
LEDioc FLOOD NEO 40W - 45
LEDioc FLOOD SPOLART 65W - 2
