Sports Lighting Gymnasium

Hitachinaka City Sports ParkHitachinaka City, Ibaraki Prefecture

Multipurpose indoor sports arena is illuminated with high quality LED light that lives up to the demands of competition level professional sporting events

Add to My List
  • LED
  •

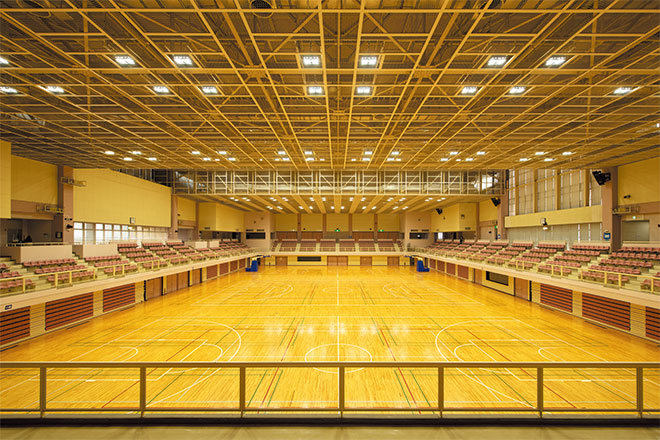

  • Main arena: With four different configurations to meet a variety of needs and applications, the scheme delivers an illuminance level of over 1600ℓx at full output, fulfilling the JIS lighting standards for TV broadcasting and also meeting the demands of professional level sporting competition.

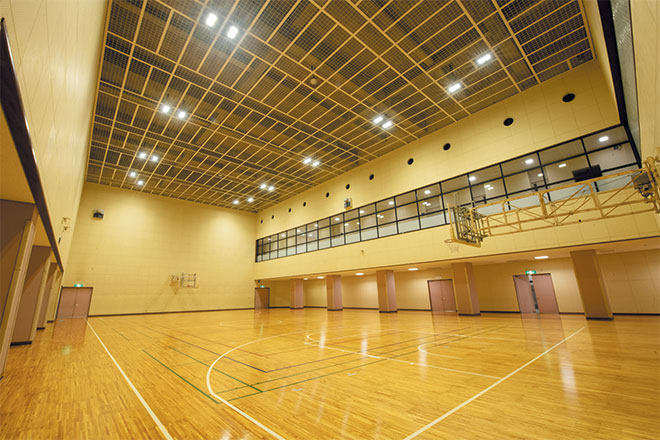

  • Lighting controls are also enabled in the sub arena, with the full output level of 700ℓx satisfying the requirements of the JIS lighting standards for general competition.

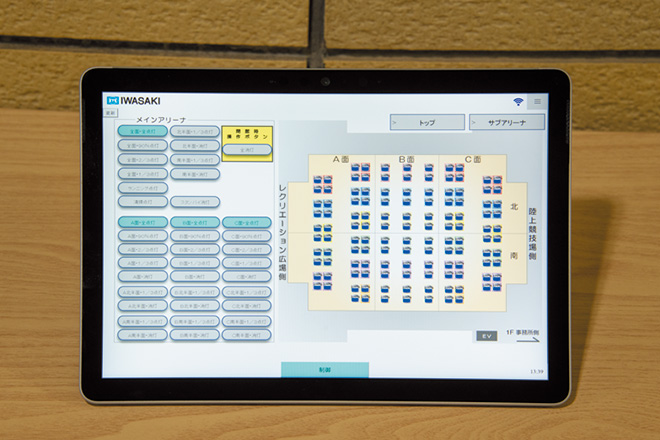

  • Control panel on which different lighting arrangements can be remotely configured in detail and yet with ease.

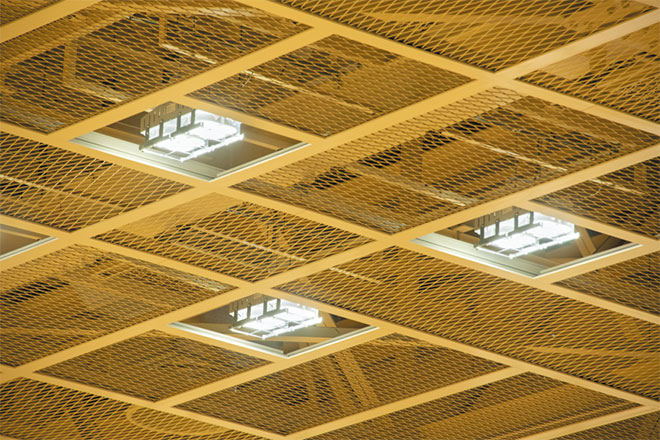

  • LEDioc HIGH-BAY Γ Wireless Control type installed in the main arena.

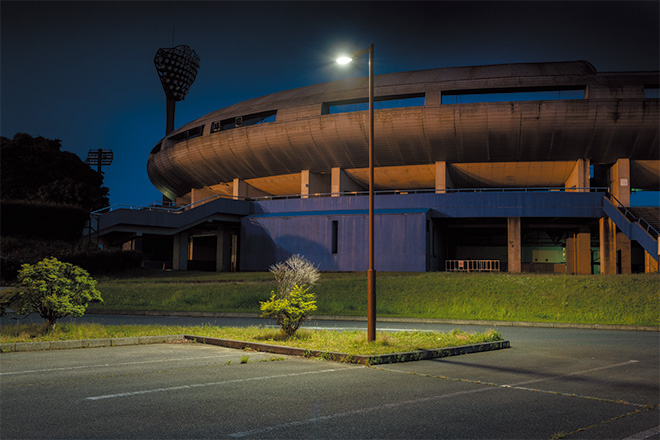

  • LEDioc ROAD S luminaires illuminate the pathways around the athletics track.

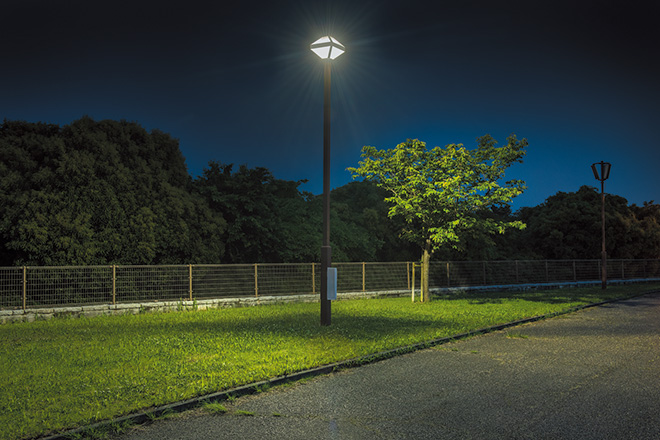

  • Pathways within the City Sports Park grounds are illuminated by LEDioc LED LIGHT BULB lights, providing an improved sense of safety and reassurance at night.

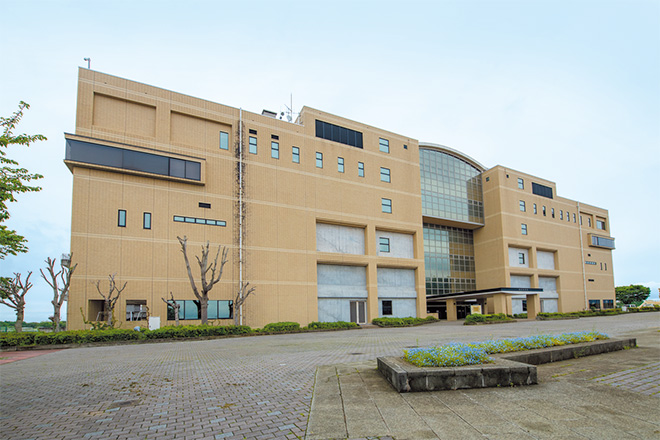

  • Exterior daytime view of the multipurpose indoor sports arena, set within the City Sports Park which is equipped with an array of sporting facilities.

about

Installation date

March, 2022

Location

Situated on an expansive site, Hitachinaka City Sports Park is equipped with a comprehensive array of facilities including a municipal baseball field, multipurpose indoor sports arena, athletics track, tennis courts and an open sports area.

As part of leasing maintenance works, the lighting of the main and sub arenas in the multipurpose indoor sports arena - as well as the area lighting in its vicinity - were updated to LED in March 2022. With the introduction of LEDioc HIGH-BAY Γ Wireless Control type 180W / 235W / 280W in the 2390m² main arena and LEDioc HIGH-BAY Γ Wireless Control type 235W in the 1060m² sub arena, a bright and high quality lighting environment has been created whilst also successfully delivering energy savings. Both arenas are used for a multitude of sports, including basketball, volleyball, handball and badminton, with the main arena also used as a tournament venue for matches in basketball's W League and volleyball's V League. Offering the capacity to configure and control a variety of illuminance levels and lighting arrangements to fulfil the demands of varying competitions and applications, the scheme is further enhanced by the functionality of the Wi-CONNECTY wireless control system; four output levels preset at 100%, 90%, 60% and 30% can be remotely enacted from the office through tablet operated controls, and furthermore it is also possible to control each luminaire individually and to set arbitrary dimming in 1% increments.

The exterior luminaires installed within the grounds of the City Sports Park to provide bright, safe lighting to the park during nighttime hours comprise a combination of high-efficiency LEDioc LED LIGHT BULB lamps which allow for the retention and reuse of existing luminaires through a simple lamp and driver replacement, LEDioc TOLICA-L luminaires which can be mounted on poles already in situ, and compact, lightweight LEDioc ROAD S street luminaires which have been designed for pathway lighting.

Specification

  • LEDioc HIGH-BAY Γ

    280W - 36

    235W - 60

    180W - 48

  • Wireless Control System Wi-CONNECTY - 1

  • LEDioc LED LIGHT BULB S 50W - 4

  • LEDioc LED LIGHT BULB 56W - 12

  • LEDioc ROAD S - 9

  • LEDioc AREA TOLICA-L - 8
