Sports Lighting Grounds

Maioka Hachimanyama Nature Park, Uchikoshi SquareYokohama City, Kanagawa Prefecture

LEDioc FLOOD AVANT Light Pollution Prevention type floodlights illuminate the multipurpose square, providing a high quality lighting environment mindful of its surroundings

Add to My List

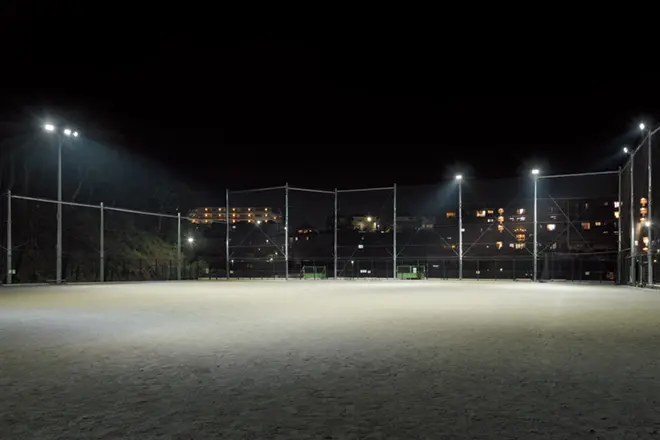

  • The area is illuminated by LEDioc FLOOD AVANT Light Pollution Prevention type class 400 floodlights, which produce light output levels equivalent to 1000W metal halide lamps. Delivering energy savings in tandem with a lighting scheme meeting JIS Class III athletic lighting standards for softball (200ℓx infield, 100ℓx outfield), the result is a safe visual environment that allows for play to continue to be enjoyed beyond sunset.

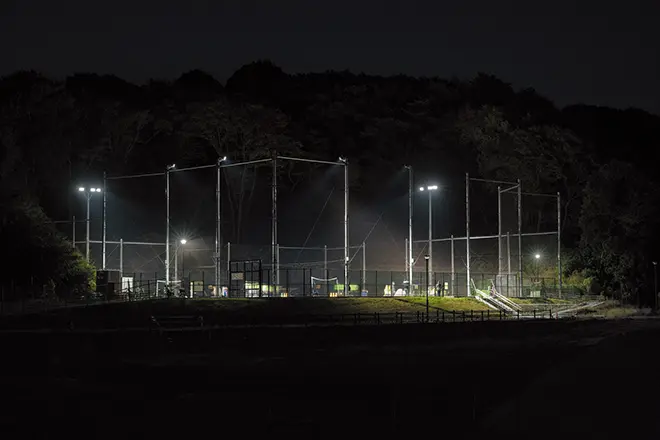

  • Meeting the requirements of the Lighting Environment Class E1 Light Distribution guidelines stipulated by the Ministry of the Environment, the area is illuminated by LEDioc FLOOD AVANT Light Pollution Prevention type class 400 floodlights to provide a pleasant lighting environment that minimizes light spillage into surrounding areas.

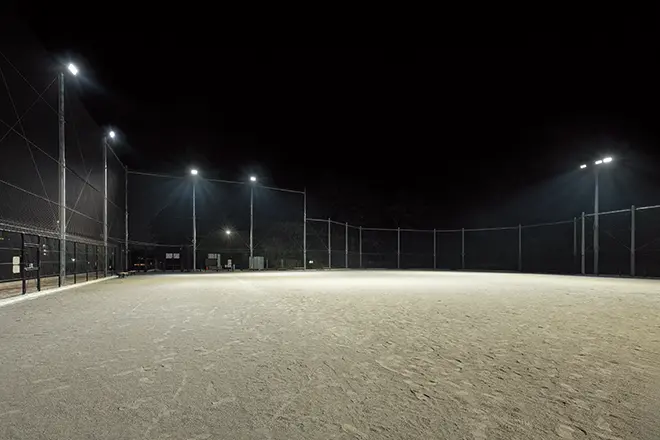

  • Combination of medium and wide beam angle versions, LEDioc FLOOD AVANT Light Pollution Prevention type class 400 floodlights efficiently illuminate the ground area.

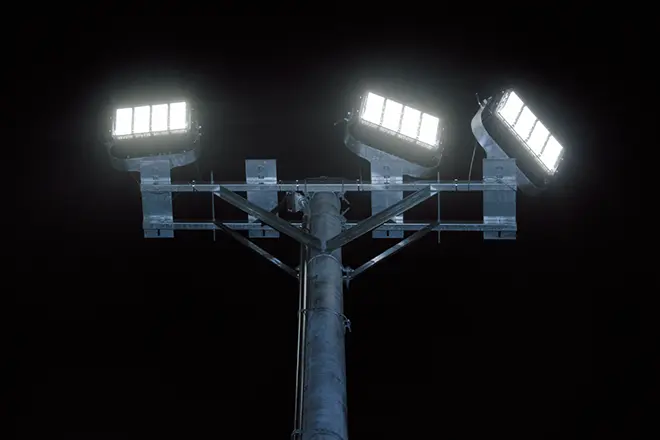

  • LEDioc FLOOD AVANT Light Pollution Prevention type class 400 floodlights in situ.

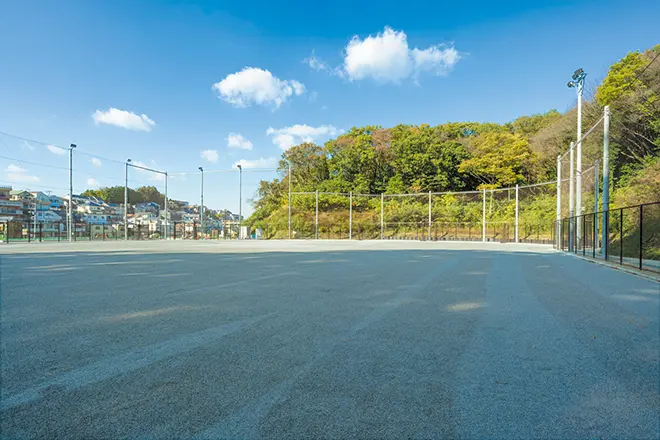

  • Daytime view of Uchikoshi Square, in its lush green surroundings.

about

Installation date

March, 2024

Location

Maioka Hachimanyama Nature Park is an all-purpose site managed by the city of Yokohama, where following on from the opening of its East Plaza in 2022, completion of works on the new Uchikoshi Square saw it opened to the public in March 2024. It is anticipated that the multipurpose space of Uchikoshi Square which covers approximately 0.3 hectares will be used mainly for practicing ball games such as baseball, soccer, and ground golf; plans for further developments are also in place, with a vast and expanded park area of approximately 12.7 hectares to include a skateboarding area, playground, grass area and allotments, scheduled to open in 2027.

Light pollution countermeasures to prevent light spillage beyond the grounds were a crucial consideration in planning the lighting arrangement at Uchikoshi Square, with its location adjacent to a residential area and surrounding lush green forest environment which is home to a variety of wildlife. A desire to also reduce the number of installed lighting fixtures by as many units as possible led to the selection of LEDioc FLOOD AVANT Light Pollution Prevention type class 400 floodlights, delivering a high quality lighting environment whilst restricting light spillage into the sky and surrounding areas. With the presence of a protective net installed around the perimeter, the fixtures have been attached to the concrete pillars that secure it, delivering design illuminance in line with JIS (Japan Industrial Standards) Class III athletic lighting standards for softball (200ℓx infield, 100ℓx outfield).

Combining the high efficiency and high color rendering properties provided by the LED lighting with effective light pollution countermeasures and glare reduction techniques, the field is brightly illuminated to provide a comfortable playing environment even by night, whilst also promoting energy conservation.

Specification

  • LEDioc FLOOD AVANT Light Pollution Prevention type class 400 - 10
