Sports Lighting Gymnasium

Fukuoka Prefectural Sports Science Information Center (Accion Fukuoka) Main ArenaFukuoka City, Fukuoka Prefecture

Using the latest lighting to illuminate the main arena inside a facility that plays a core role in the promotion of physical education and sports in Fukuoka Prefecture

Add to My List
  • LED
  •

  • DALI-compatible 200W LEDioc HIGH-BAY θ lights safely and comfortably illuminate the arena at the Gymnastics Center, which is fully equipped at the university's highest level.

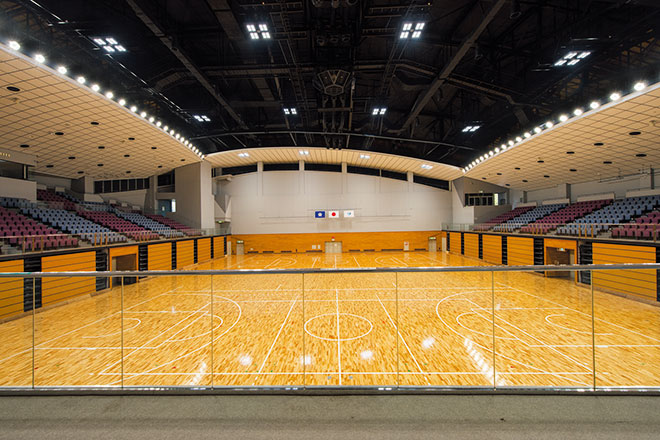

  • 420W LEDioc HIGH-BAY Γ lights have been arranged for the ceiling lighting, and 560W type LEDioc FLOOD DUELL lights for the side lighting, creating a pleasant lighting environment with a high degree of uniformity while also realizing significant power savings.

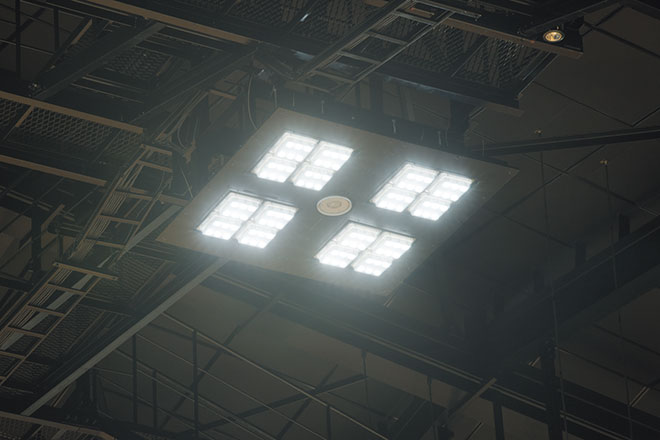

  • The installed 420W LEDioc HIGH-BAY Γ lights, which have a brightness equivalent to 2 x 700W mercury lamps.

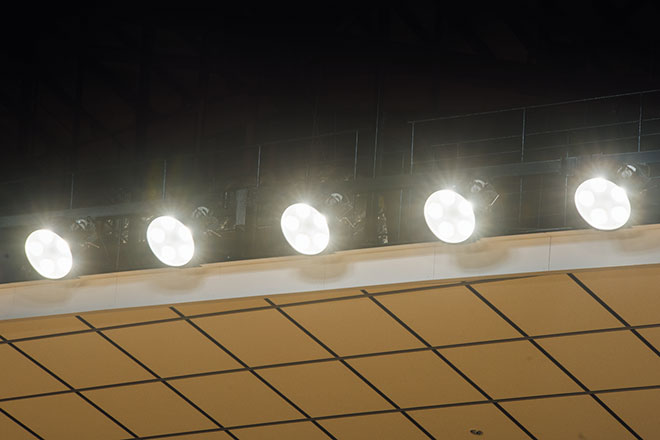

  • Ultrawide-angle 560W type LEDioc FLOOD DUELL lights have been used for the side lighting, ensuring a high level of vertical-plane brightness.

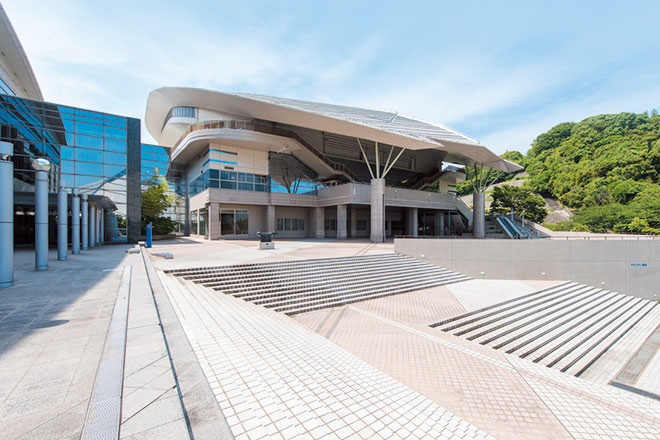

  • A daytime view of the exterior of the facility, which is located in Higashihirao Park near Fukuoka Airport.

about

Installation date

January, 2018

Location

Fukuoka Prefectural Sports Science Information Center (Accion Fukuoka) is a comprehensive sports facility built to commemorate the "Tobiume Kokutai" National Sports Festival that was held in Fukuoka Prefecture in 1990. The three-story facility has a total floor space of 23656m² on a site 22900m² in size, and the second floor has a 1794m² (46m x 39m) main arena with seating for 2000 spectators that can be used for official competitions such as those for basketball or volleyball. The building also includes a full range of facilities, including a sub-arena that can be used for a variety of sports, a multipurpose arena, training rooms and accommodation rooms.

As part of the ceiling renovation work carried out by Fukuoka Prefecture on the main arena in January 2018, a change to LED lighting equipment was made. The existing ceiling lighting was 4-lamp HID high ceiling lighting fixtures housing 1kW metal halide lamps, and this was replaced in the renovation with high color-rendering 420W LEDioc HIGH-BAY Γ LED high ceiling lighting fixtures, while the side lighting was upgraded from the existing 1kW metal halide lamp floodlights to high color-rendering 560W type LEDioc FLOOD DUELL high ceiling lighting fixtures, ensuring the vertical-plane brightness required for television video recording while achieving a significant reduction in power consumption of around 57%. In addition, depending on the competition area-sectioning, brightness is at least the same, but on average has seen an improvement of 10%.

Ra80 high color-rendering is delivered, comfortably illuminating the main arena in anticipation of the 8K television broadcasting era, and both power savings and a high-quality light environment have been achieved.

Specification

  • LEDioc HIGH-BAY Γ 420W - 64

  • LEDioc FLOOD DUELL 560W type - 56
