Sports Lighting Gymnasium

Konohana ArenaShizuoka City, Shizuoka Prefecture

Creating a pleasant lighting environment using a friendly lighting method with lighting patterns that can be adjusted according to use to light a vast space using the latest technology to be enveloped in the special warmth of timber

Add to My List
  • LED
  • HID

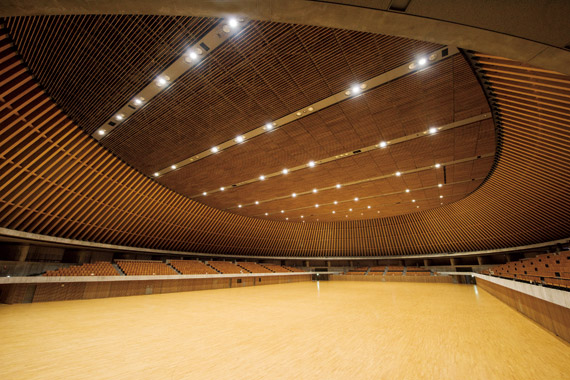

  • The main floor has an area of 82m×46m, and is a large space that has achieved a dynamic and beautiful architectural form with a hybrid structure comprising a large domeshaped roof supported by a lower roof made from 256 beams of a Tenryu Japanese cedar composite. Only LEDioc HIGH-BAY Λ lights are turned on for the most frequently used brightness of 200ℓx.

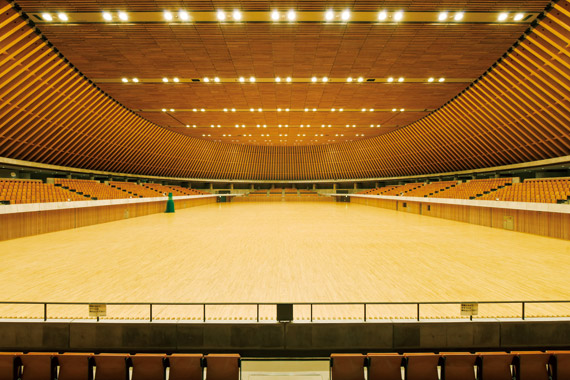

  • A 1000ℓx lighting pattern with 2-lamp combinations of 1000W EYE MULTIMETAL lamps.

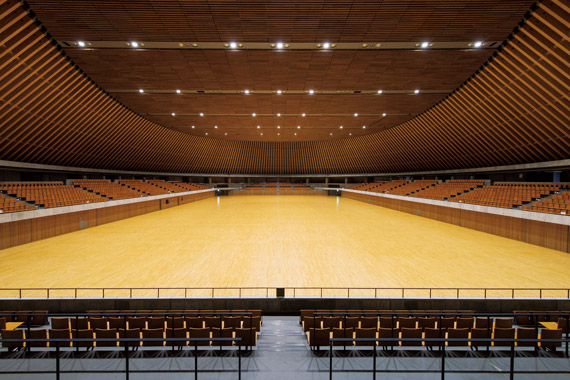

  • A 200ℓx lighting pattern with only 200W LEDioc HIGH-BAY Λ lights turned on.

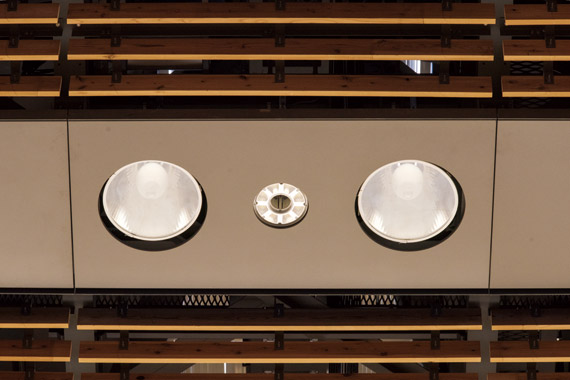

  • 200W LEDioc HIGH-BAY Λ (5000K) LED lights have been arranged between 2-lamp combinations of 1000W EYE MULTI METAL lamps.

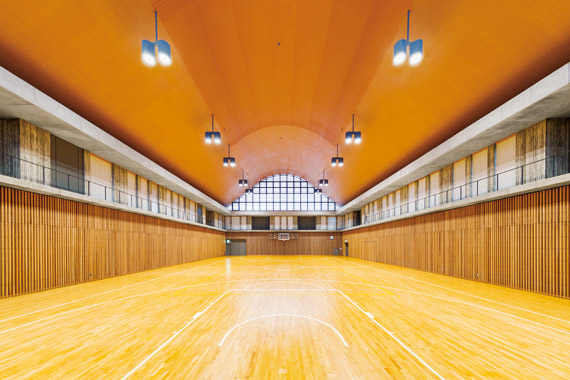

  • The sub-floor uses 2-lamp combinations of 200W LEDioc HIGH-BAY Λ (4000K) lights, with both 200ℓx and 500ℓx lighting patterns possible.

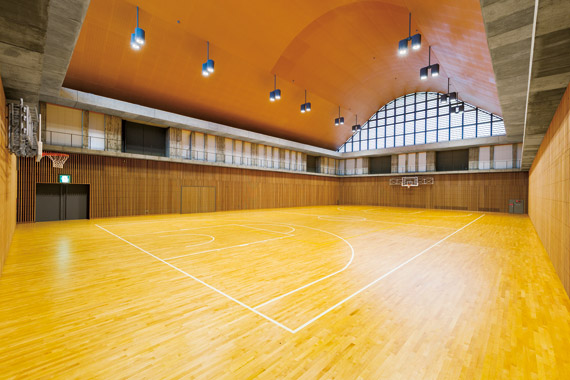

  • The sub-floor is 714m² , which is enough space for a basketball court.

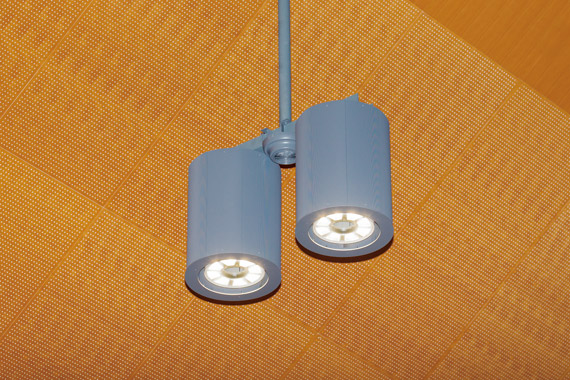

  • The installed 200W LEDioc HIGH-BAY Λ (4000K) lights.

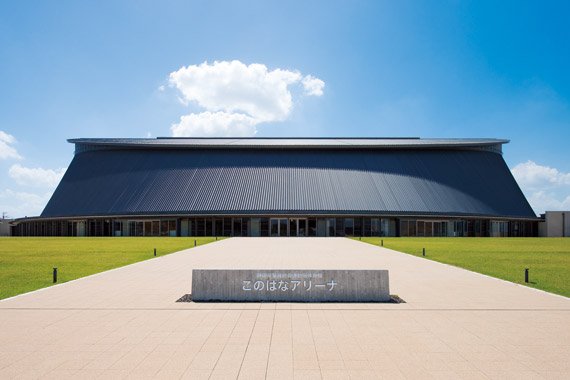

  • A daytime view of the facility, which has a dignified appearance and takes its relationship with its surroundings into account.

about

Installation date

April, 2015

Location

Konohana Arena is a gymnasium inside Kusanagi Athletic Field, which is a prefecturally managed municipal park in Shizuoka Prefecture. Boasting a building area of 9701m² and a total floor space of 13509m² , its main floor has enough space to fit 4 basketball courts and seating for 2700 spectators, while its sub-floor maintains enough space for a single basketball court. The gymnasium makes abundant use of locally produced Tenryu Japanese Cedar, with its merit being a large space enveloped in the special warmth of timber. For its lighting, it uses a combination of 1000W EYE Multi-Metal lamps and 200W LEDioc HIGH-BAY Λ (5000K) LED high ceiling lighting fixtures for its main floor, and 200W LEDioc HIGH-BAY Λ (4000K) lights for its sub-floor. On the main floor, each of the 4 courts can be lit separately, and it is possible to switch between 4 levels of brightness covering 200 - 1500ℓx to match whatever the courts are being used for. Selection of light sources was carried out in accordance with frequency of use, with only LED lamps being used for the most frequently used brightness of 200ℓx, and with only HID lamps being used for the less-frequently used brightness levels of 500, 1000, and 1500ℓx. When used at a brightness of 500ℓx, control is employed to have daily on/off groups switched in a cycle to reduce lamp-change frequency. Furthermore, both the HID and LED lamps use fittings compliant with initial brightness compensation, which has achieved a 15% reduction in lighting. The large space is comfortably lit with lighting equipment that can handle a variety of uses, from amateur to professional competitions, creating a pleasant lighting environment befitting a feel-good "timber-enveloped gymnasium" with a sense of scale.

Specification

  • EYE Multi Metal Lamp 1000W - 144

  • LEDioc HIGH-BAY Λ

    5000K - 56

    4000K - 24

  • EYE Halogen Lamp 500W - 8
