Sports Lighting Grounds

Harasato District Park (Yuai Park Harasato)Gotemba City, Shizuoka Prefecture

LEDioc FLOOD AVANT floodlights cast a bright and pleasant light over grounds where sports can be enjoyed with the mighty Mount Fuji as a backdrop

Add to My List
  • LED
  •

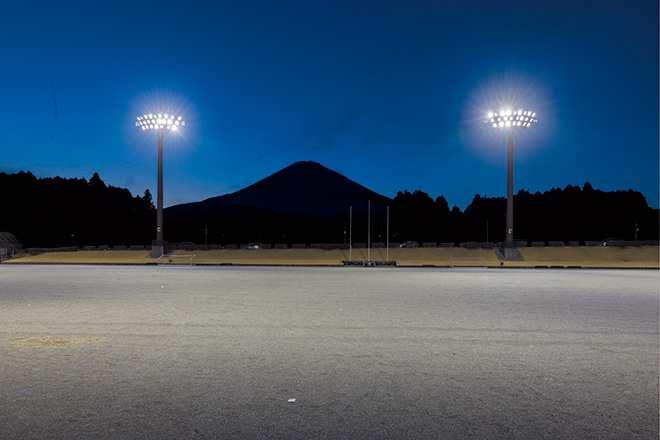

  • Producing brightness levels equivalent to 1000W metal halide lamps, LEDioc FLOOD AVANT class 400 floodlights deliver energy savings whilst maintaining illuminance levels as they illuminate the field.

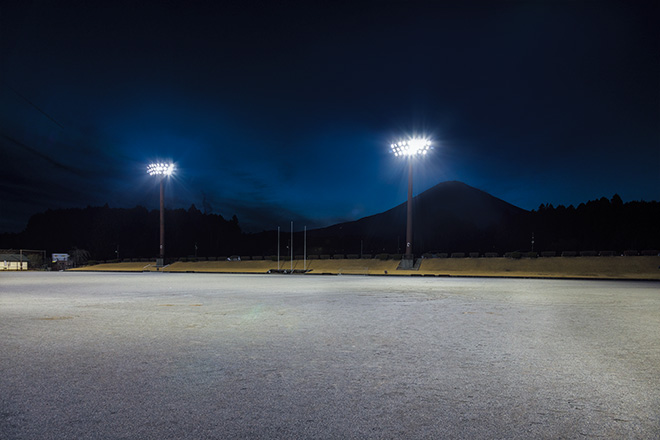

  • LEDioc FLOOD AVANT class 400 floodlights with medium narrow beam distribution illuminate the field to deliver a pleasing lit environment.

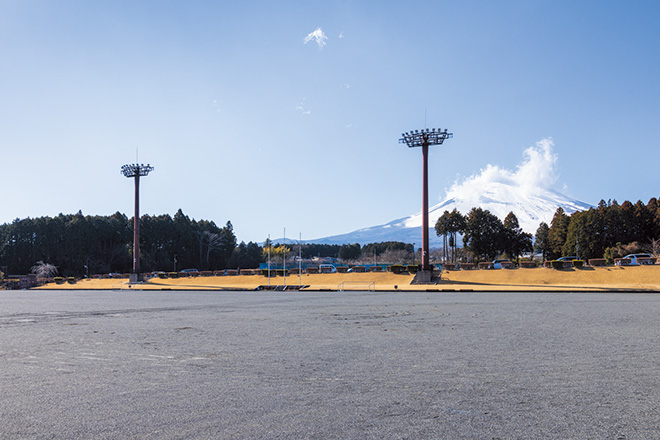

  • Daytime view of the field where a variety of sports can be enjoyed, with the splendor of Mount Fuji as a backdrop.

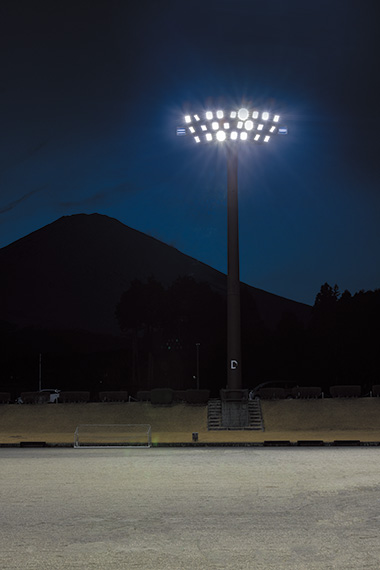

  • LEDioc FLOOD AVANT class 400 floodlights in situ.

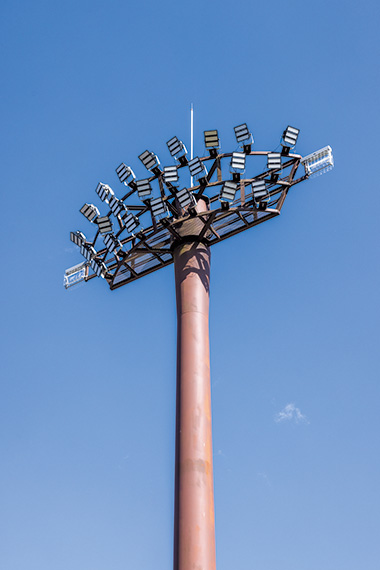

  • LEDioc FLOOD AVANT class 400 floodlights have been installed on the existing lighting columns, which have been retained and reused.

about

Installation date

March, 2024

Located in Gotemba City, Shizuoka Prefecture, Harasato District Park (Yuai Park Harasato) is a sports park equipped with facilities to accommodate a wide variety of sports and recreational activities, including a field for sports such as soccer, mini soccer and softball amongst others, as well as a court suitable for tennis or futsal, a 200m running track, and also a 500m jogging and walking course around the perimeter of the field. A small stream can also be found on the southern side of the turf field and the playground for the children to enjoy, in addition to a parking area. With the majesty of Mount Fuji as its backdrop, the venue is much loved by locals as a place to enjoy sports and recreational activities.

In March 2024 the City of Gotemba completed works to upgrade the lighting at the grounds to LED, directly replacing the existing HID lamp floodlights on a one for one basis with compact, high efficiency LEDioc FLOOD AVANT class 400 floodlights, mounted on the five existing lighting towers which were retained and reused. Replacing the existing HID lamp floodlights (1000W metal halide x 68 units; 660W high pressure sodium x 40 units) on a one for one basis has delivered not only significant reductions in energy consumption, but also a bright, uniform light coverage on the field where a variety of sports can also be enjoyed by night, resulting in a comfortable playing environment.

Specification

  • LEDioc FLOOD AVANT class 400 - 108

  • Electric Bug Killer - 10
