Projects

Sports Lighting Golf

KS Golf GokanTamano City, Okayama Prefecture

A change to LED lighting for a golf practice range boasting a full range of facilities including a short course, achieving power savings and a pleasant light environment in which it is easy to see the trajectories of hit balls

Add to My List
  • LED
  •

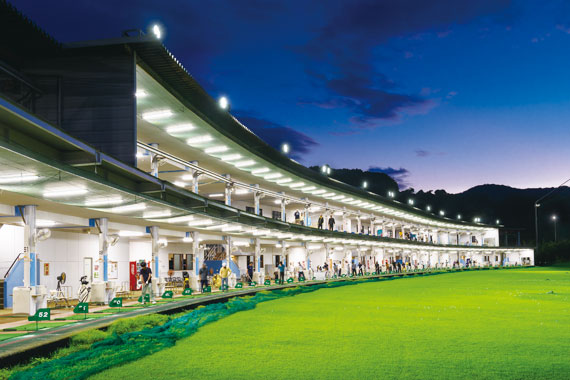

  • A night-time view of the golf practice range, which has 100 tee-off boxes spread over its two floors.

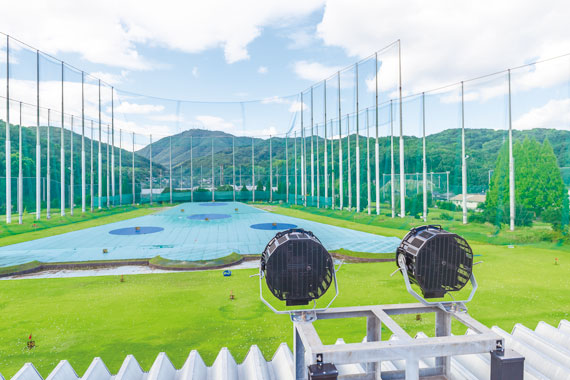

  • The 560W LEDioc FLOOD DUELL installed on the roof of the practice range and the 190W LEDioc FLOOD BLITZ installed in front of the nets light the entire fairway, creating a highly uniform and pleasant lighting environment.

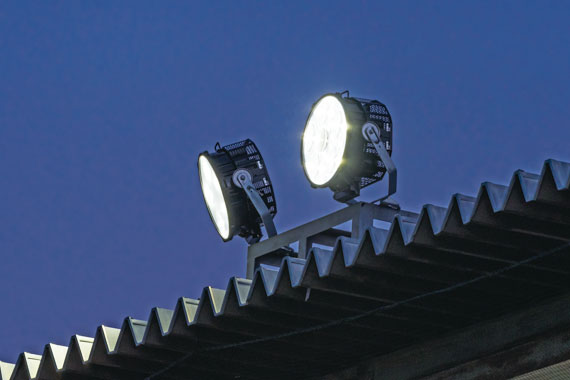

  • The 560W LEDioc FLOOD DUELL LED floodlights installed above the stands.

  • A view of the fairway from above the stands.

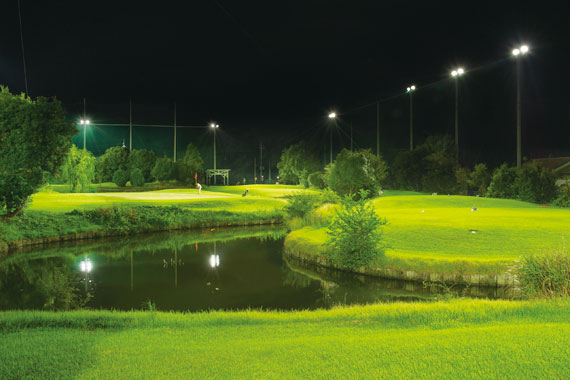

  • A night-time view of the short course arranged around the perimeter of the practice range (2nd hole). The light refreshingly illuminating the green comes from 380W LEDioc FLOOD BLITZ.

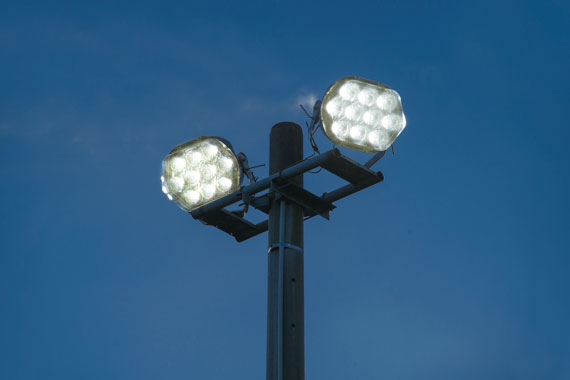

  • The LED floodlights installed on the short-course are 380W LEDioc FLOOD BLITZ.

  • The short-course is lit with a combination of medium-angle and wide-angle 380W LEDioc FLOOD BLITZ, ensuring a light environment that enables the comfortable enjoyment of golf at night.

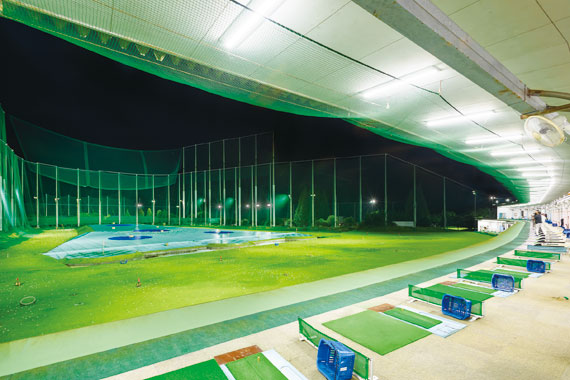

  • A view of the fairway from a first-floor tee-off box. Both the fairway and tee-off box lighting have been changed to LED lights,resulting in both a bright and comfortable lighting environment and power savings.

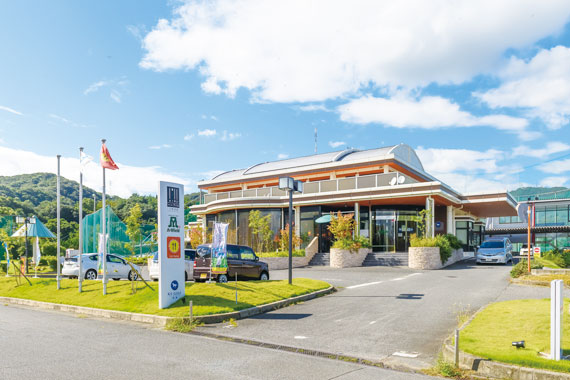

  • A view of the exterior during the day.

about

Installation date

August, 2015

Location

KS Golf Gokan is a golf practice range with a full range of facilities, including 100 tee-off boxes spread over its two floors; a spacious, 250-yard driving range (roughly 150m to the point furthest from the stands, and a width of 71m); a 6-hole, all-natural-grass short course; putting/bunker practice areas; a golf shop; a restaurant; and parking for 150 vehicles. KS Golf Gokan carried out renovation work on its lighting equipment, changing it to LED lighting with the aims of reducing power consumption, improving visibility for flying balls that fall after hitting the nets at the furthest points, improving visibility for flying balls in the 100-150m range with a perpendicular height of around 30m, and improving the overall brightness of the golf course. High-output 560W LEDioc FLOOD DUELL and 190W LEDioc FLOOD BLITZ LED floodlights were installed in place of the existing 1000W HID-lamp floodlights, achieving large-scale reductions in power consumption through a reduction in the number of lights and output downsizing. The lighting for the furthest points comes from both the stands and in front of the nets, so the net-front fixtures were reduced in brightness from 1000W HID lamps to 200W LED fixtures, while 560W LEDioc FLOOD DUELL have been installed above the stands. Light from the high-output LED floodlights reaches the furthest points, and their installation has made space brightness more uniform, improved both vertical-plain and perpendicular brightness, and created a pleasant night-game lighting environment in which it is easy to see the spots where the hit balls fall.

Specification

  • LEDioc FLOOD DUELL 560W type - 28

  • LEDioc FLOOD BLITZ

    380W type - 65

    190W type - 2

  • LEDioc LED Base light - 178
