Commercial Lighting Station / Railway

Odakyu Odawara Line Noborito StationKawasaki City, Kanagawa Prefecture

A change to LED for station-platform lighting achieves a highly uniform light environment and significant power savings

Add to My List
  • LED
  •

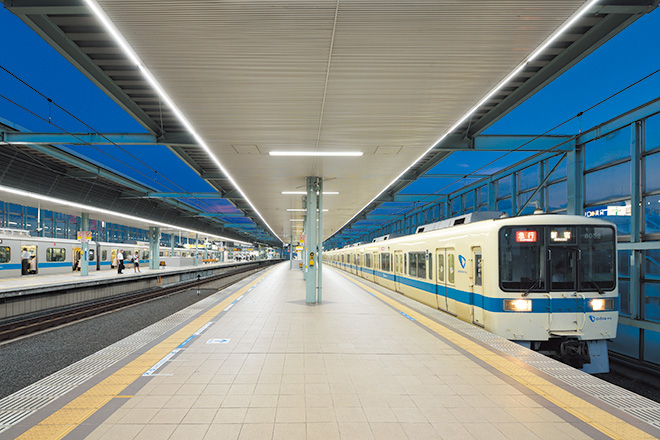

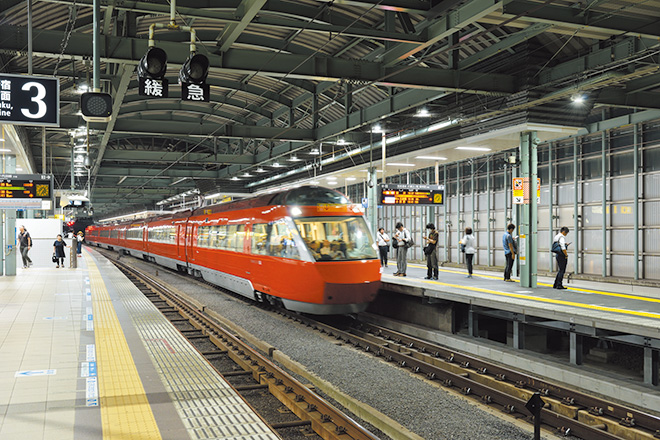

  • LEDioc MULTILINE LED baselights evenly light the island-style platforms in uniform light, creating a bright and safe lighting environment.

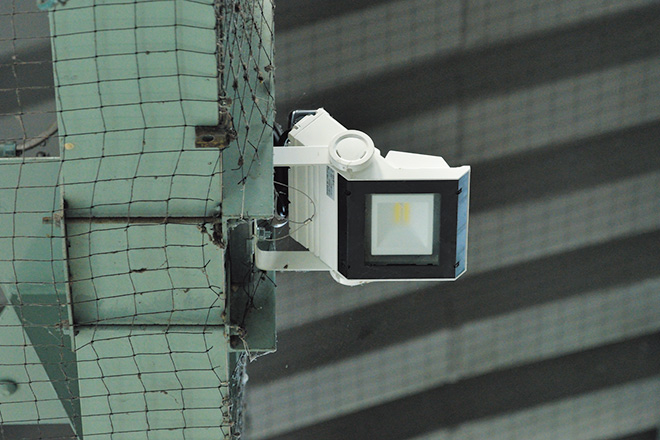

  • LEDioc FLOOD NEO LED floodlights have been installed in the top sections of the platforms.

  • The LEDioc FLOOD NEO LED floodlights that light the platforms have long-life LED modules with operating lifespans of 60000 hours, contributing to significant power savings while also ensuring a brightness equivalent to or greater than that of the previous HID lighting fixtures of 200ℓx.

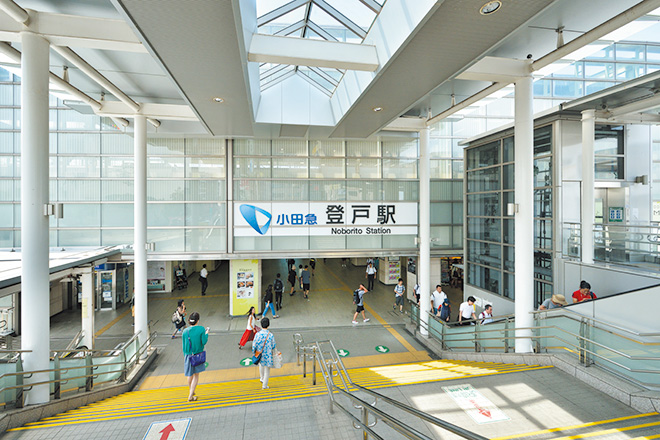

  • A daytime view of the area around the station entrance.

about

Installation date

August, 2018

Location

Noborito Station, which is on the Odakyu Electric Railway's Odakyu Line, is an elevated station with four lines and double-sided island-style platforms. It originally had a 2-side facing-platform layout, but due to a change to a quadruple-track railway between Izumi-Tamagawa Station and Noborito Station, and to a triple-track railway between Noborito Station and Mukogaoka-Yuen Station, work to renovate entire station was carried out, and it took on its 4-line and double-sided island-style platform structure from March 3, 2018. With the JR Nambu Line Noborito Station located nearby, it has become a transit station between routes with many visitors.

Odakyu Electric Railway carried out renovations to the station-platform lighting in August 2018, selecting IP55 highly waterproof/dustproof LEDioc MULTILINE LED baselights and compact/lightweight and angle-adjustable LEDioc FLOOD NEO LED floodlights as the base lighting. Safety has been improved by brightly and evenly lighting all of each platform, and because the LED modules are long-life and last for 60000 hours, significant power savings have also been realized.

Specification

  • LEDioc MULTILINE - 192

  • LEDioc FLOOD NEO class 90 - 58
