Odakyu Line Shinjuku South Entrance Surface Line PremisesShinjuku Ward, Tokyo

Changing the lighting for station maintenance passages to LED to provide power savings, increased brightness, and safe and reassuring light

Add to My List
  • LED
  •

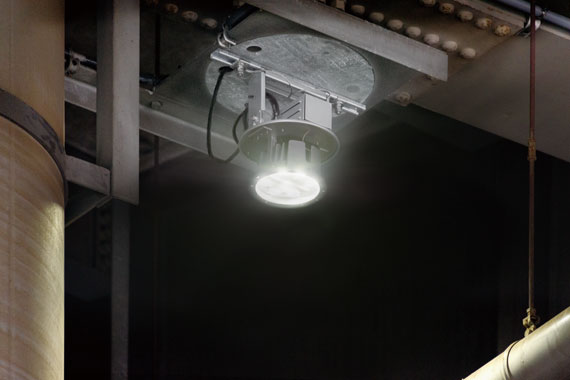

  • The area is gravel-covered, so special-environment-type LEDioc HIGH-BAY α lights have been installed.

about

Installation date

March, 2016

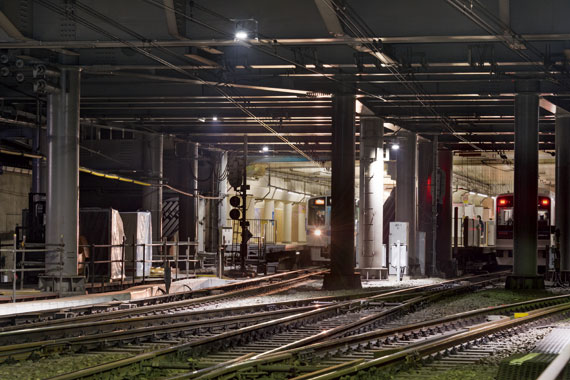

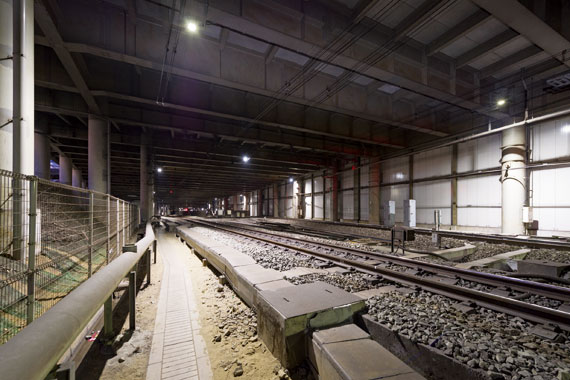

In March of this year, Odakyu Electric Railway Co., Ltd., upgraded the Odakyu Line Shinjuku South Entrance surface line on-premise maintenance passageway lighting from the existing Mercury lamps to LED lighting, installing LEDioc HIGH-BAY α LED highceiling lighting fixtures, with the objectives of power savings and increased brightness. Special-environment-type fixtures were selected to provide protection against dust, due to their being installed in gravel-covered areas under man-made platforms. Vibrations and waterproofing were also taken into account, as the fixtures are installed above the lines. The LEDioc HIGH-BAY α lights (special-environment-type) have achieved large-scale power savings, ensuring a brightness equivalent to the 400W Mercury lamps with a power consumption of 111W. The locations for the lighting fixtures were kept the same, with the metal fittings for the existing lighting fixtures reused. Wide-angle light distribution has been employed to brightly light the space, ensuring power savings and a greater brightness than was previously the case.

Specification

  • LEDioc HIGH-BAY α 111W - 41
