Tunnel Lighting

Aomi TunnelKoto Ward, Tokyo

LEDioc TUNNEL KWE Series luminaires provide a safety-conscious lighting environment for drivers passing through

Add to My List
  • LED
  •

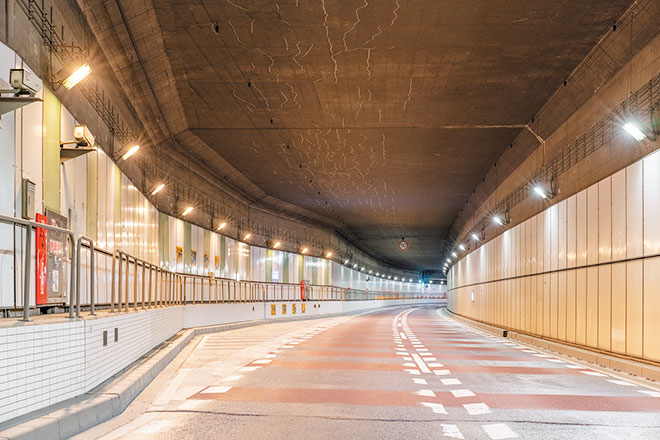

  • The inside of the tunnel is illuminated with LEDioc TUNNEL KWE Series, creating an optimal lit environment by maintaining appropriate illuminance levels on the road surface and the vertical plane.

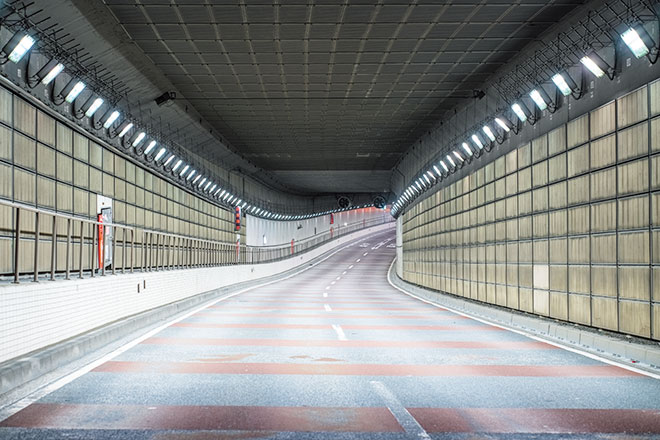

  • Contributing towards a low-maintenance scheme thanks to their long average rated life of 90000hrs, LEDioc TUNNEL KWE Series luminaires ensure the tunnel is illuminated to the appropriate level.

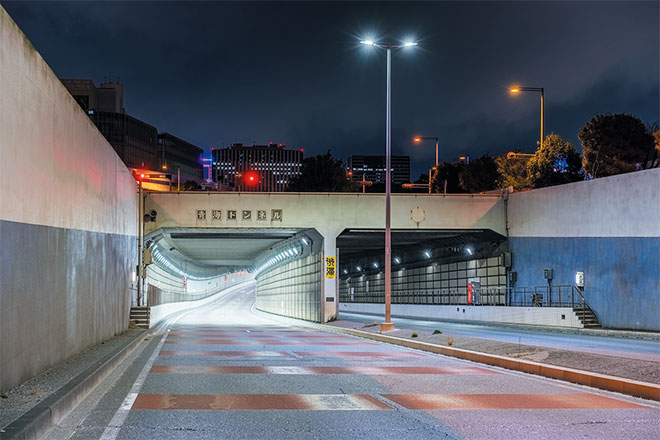

  • LEDioc ROAD street luminaires provide the lighting around the entrances to Aomi tunnel.

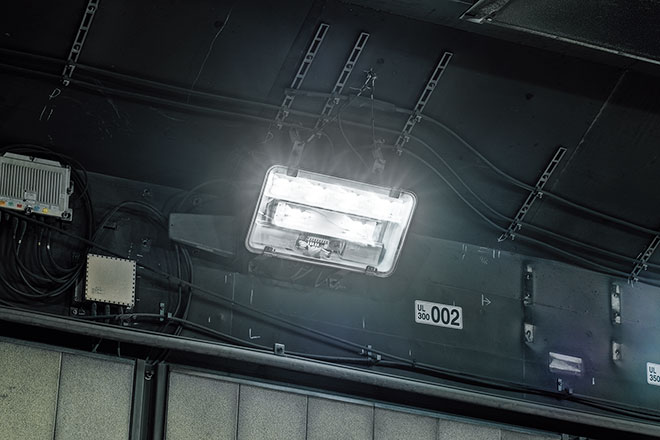

  • Dimming-enabled LEDioc TUNNEL KWE Series in situ (entrance area).

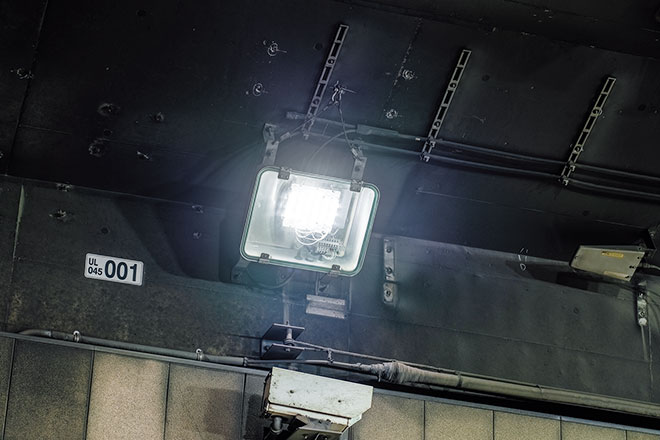

  • Dimming-enabled LEDioc TUNNEL KWE Series in situ (main tunnel area).

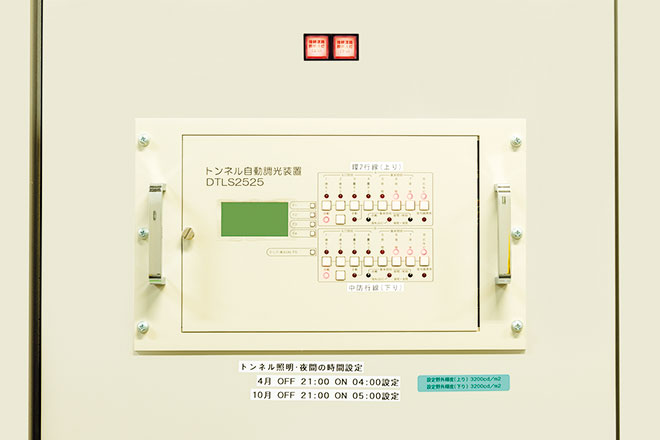

  • Automatic dimming controls for the tunnel lighting.

about

Installation date

March, 2021

Location

With its entrance located below Aomi Station on the Tokyo Waterfront New Transit Waterfront Line, Aomi Tunnel is linked to the Aomi-Jukan Line, which acts as an access route connecting Ariake and Aomi in the Tokyo Waterfront City to the Central Breakwater Area. Its position in an area which serves as an important logistical transport hub ensures a high volume of heavy goods vehicle traffic, and consequently there are also further developments under way in the vicinity, including the construction of another route running parallel to the Aomi-Jukan Line.

Lighting improvement works on the tunnel with two lanes each way, saw the existing sodium installations replaced with LED luminaires on the northbound side in 2019 and the southbound side in 2021. Using LEDioc TUNNEL KWE Series LED tunnel luminaires for the lighting of the main tunnel and at their entrances, illuminance levels have been increased despite a reduction in the number of installed units, enabling the transition to a long-life and energy saving scheme.

A renewal of the distribution board in the electrical control room has also allowed for a renewal of the automatic dimming controls system, providing the facility to implement precision controls to specified lighting levels appropriate to the time of day; effective use of the three output levels set for the main tunnel lighting (100% / 50% / 32%) and four levels for the entrances (100% / 75% / 50% / 25%) ensures a safe and pleasant visual environment for drivers passing through the tunnel. In keeping with the theme of renewal with LED, the lighting outside the tunnels is provided by LEDioc ROAD street luminaires.

Specification

  • LEDioc TUNNEL KWE Series

    Base Lighting (100%・50%・32%Dimmable type) - 316

    Base Lighting - 18

    Entrance Lighting (100%・75%・50%・25%Dimmable type) - 162

  • Tunnel Automatic Dimmer - 1

  • LEDioc LED Watertight Lighting fixtures - 48

  • LEDioc ROAD - 26
