Sports Lighting Winter Sports

Higashifushimi Ice Arena (DyDo DRINCO Ice Arena)Nishitokyo City, Tokyo

LED Lighting conversion in vast 1800m² ice arena delivers significant energy savings and a comfortable lighting environment

Add to My List

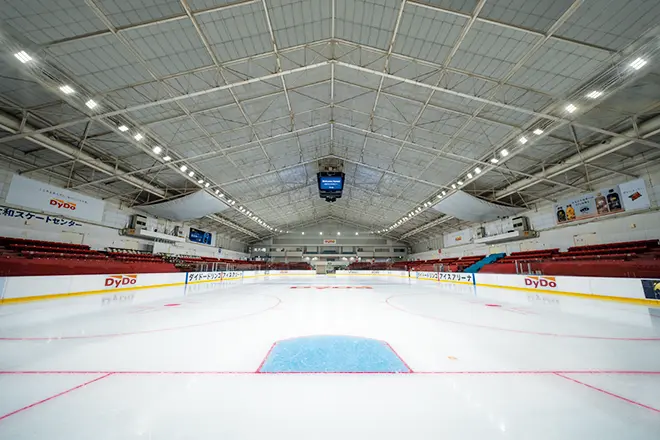

  • LEDioc FLOOD AVANT Indoor type class 400 LED floodlights illuminate the arena to provide a comfortable, high-quality lighting environment.

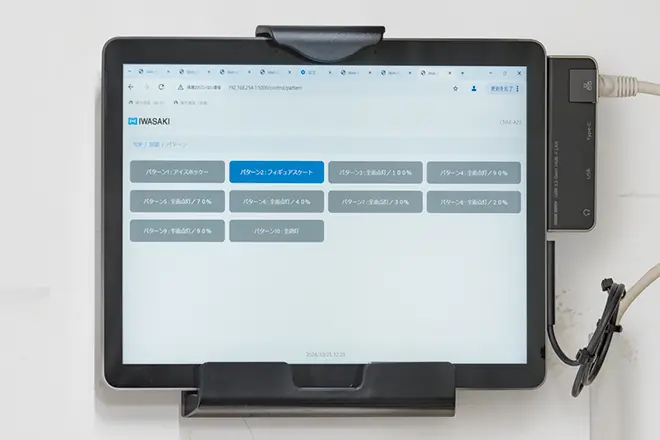

  • The Wi-CONNECTY wireless control system facilitates easy tablet-based operations through a browser function.

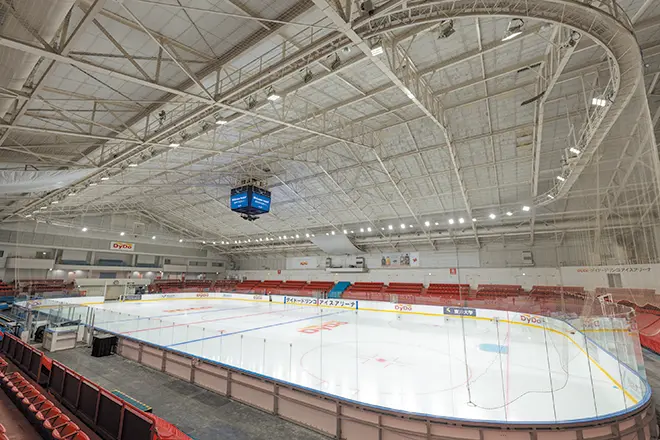

  • View over the spacious 60m x 30m arena.

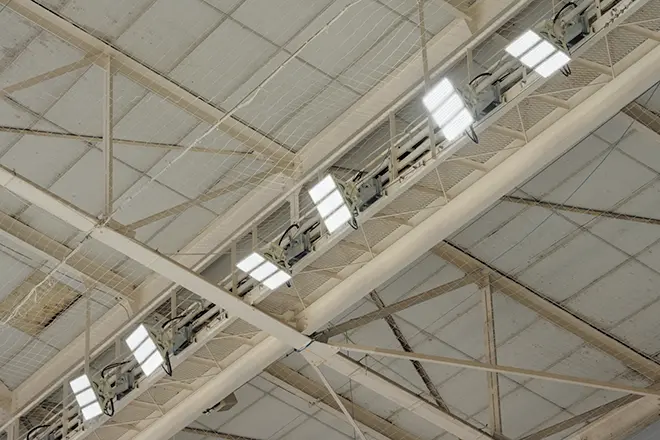

  • LEDioc FLOOD AVANT Indoor type class 400 LED floodlights are able to operate in an ambient temperature range of -20°C to +50°C.

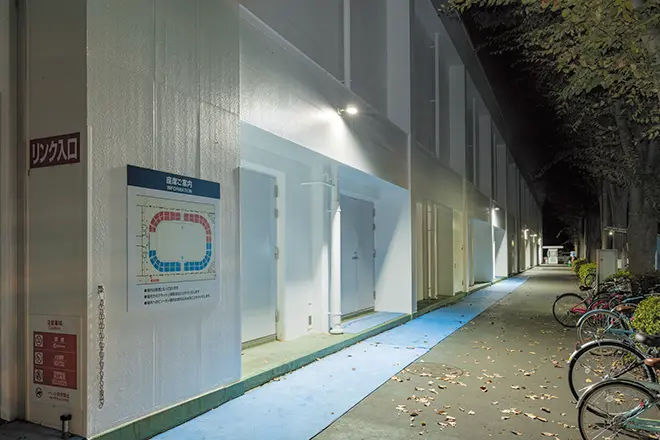

  • LEDioc FLOOD LUNT 33W type floodlights provide light for safety along the walkways around the site.

  • The rink entrance area is illuminated with LEDioc FLOOD LUNT 33W type floodlights to provide a sense of heightened security at night.

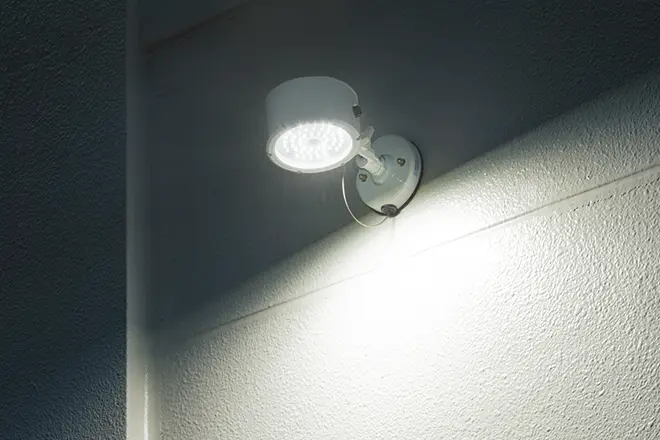

  • The exterior lighting is provided by LEDioc FLOOD LUNT 33W type LED floodlights, featuring a compact and minimalist design.

about

Installation date

October, 2024

Featuring a spacious ice rink measuring 60m x 30m and able to accommodate up to 3500 people, the popular and much-frequented Higashifushimi Ice Arena is a year-round venue conveniently located just a minute by foot from Higashifushimi Station on the Seibu Shinjuku Line, making it easily accessible from the heart of Tokyo. In addition to offering skating classes and general skating, the venue also hosts a variety of events including Asia League ice hockey matches, figure skating competitions hosted by the Tokyo Skating Federation, and ice shows.

From June to October 2024, Higashifushimi Ice Arena was temporarily closed to carry out improvement works on the ice rink, with normal operations resuming upon reopening on the first of November. During the improvement works the lighting was also upgraded to LED lighting, with 80 highly efficient LEDioc FLOOD AVANT Indoor type class 400 LED floodlights replacing the previous arrangement of 215 floodlights with 700W metal halide lamps, to deliver an optimal lighting environment whilst significantly reducing the number of installed units and overall power consumption.

With the incorporation of wireless remote lighting controls using the wireless control system Wi-CONNECTY, multiple preset dimming patterns can be reproduced with just a single touch; ensuring appropriate levels of brightness for each application, a comfortable and high-quality light setting is delivered for the ice arena, which is popular as a year-round rink that accommodates a wide variety of purposes.

Specification

  • LEDioc FLOOD AVANT Indoor type class 400 - 80

  • Wireless Control System Wi-CONNECTY - 1

  • LEDioc FLOOD LUNT

    14W type - 20

    33W type - 18

  • LEDioc FLOOD NEO class 150 - 2
