Sports Lighting Athletics

Kasamatsu Sports Park Athletics StadiumNaka City, Ibaraki Prefecture

A stadium furnished with a roof for its main stand in anticipation of the holding of a national athletic meet illuminated using LED floodlights to create a high-quality night-game lighting environment

Add to My List
  • LED
  •

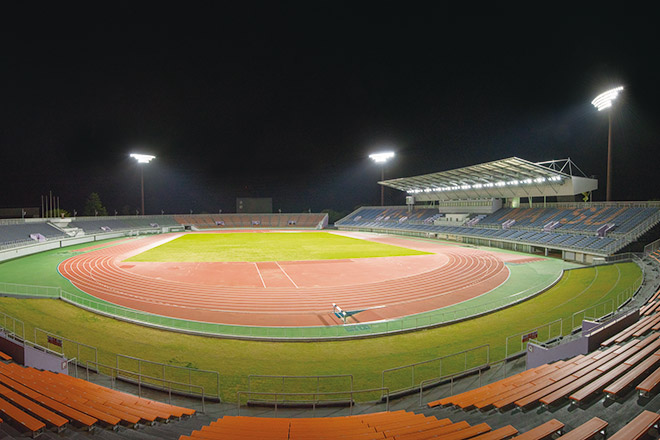

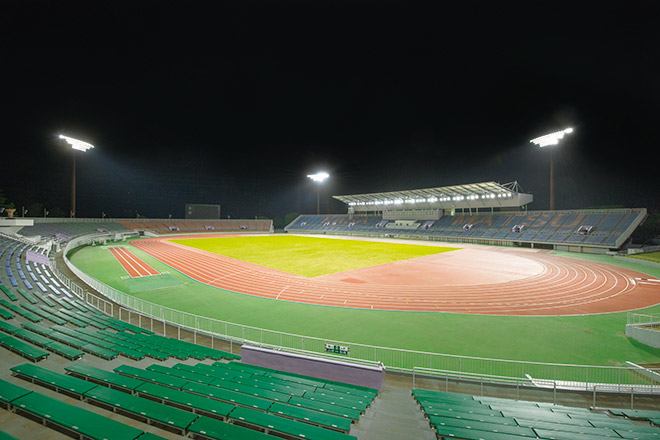

  • A panoramic view of the stadium with all lights turned on.

  • The 400m x 9 lane track is lit by LEDioc FLOOD DUELL lights, creating a highly uniform lighting environment.

  • The vivid green of the natural turf is lit with LED floodlights, creating a light environment optimal for sports.

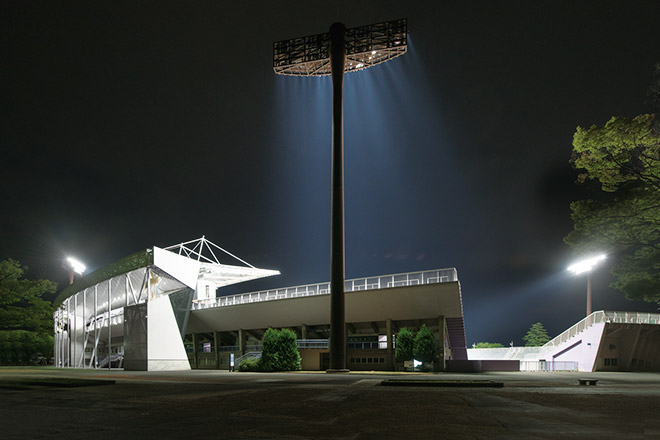

  • A night-time view of the track-and-field stadium, which is set to be the main venue for the Iki-Iki Ibaraki Yume National Sports Festival to be held in 2019.

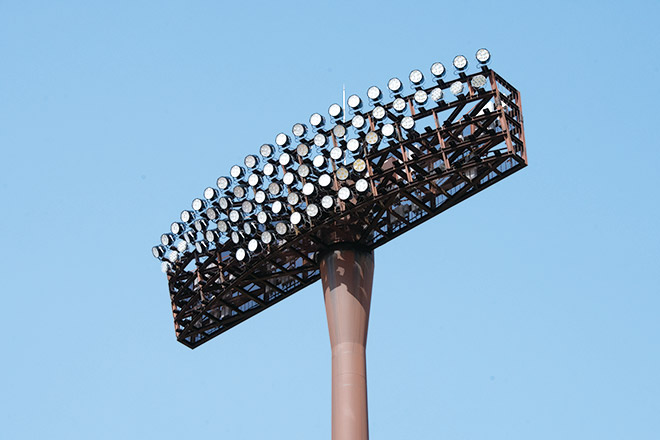

  • 1300W LEDioc FLOOD DUELL and 380W LEDioc FLOOD BLITZ lights have been installed on the lighting towers.

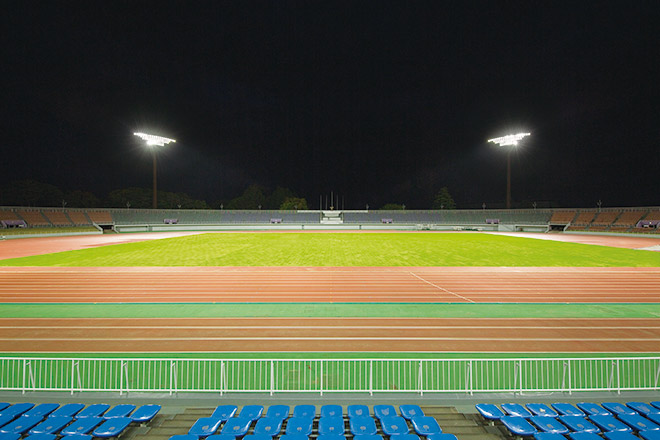

  • A view of the field from the main stand.

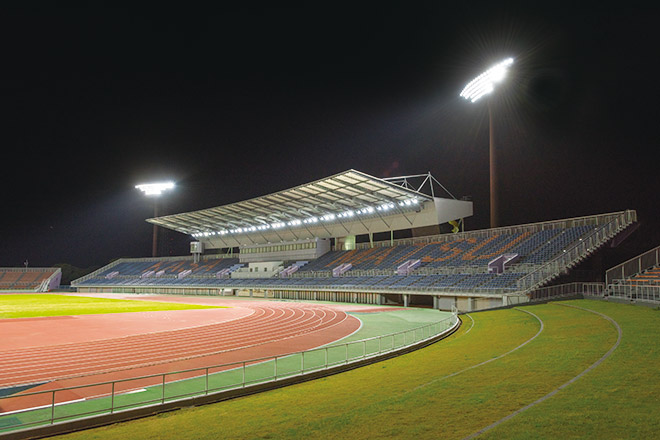

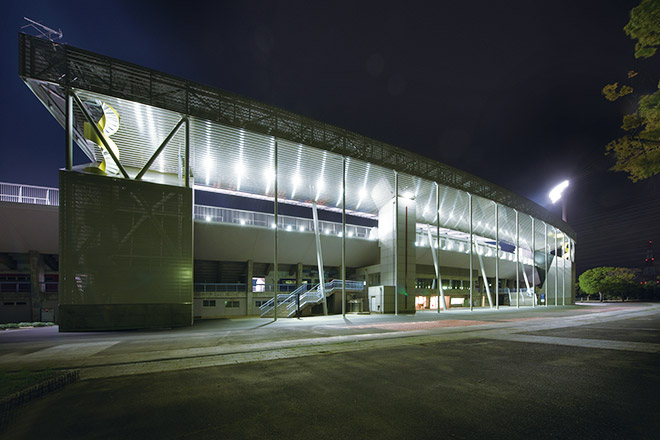

  • The front of the main stand at night.

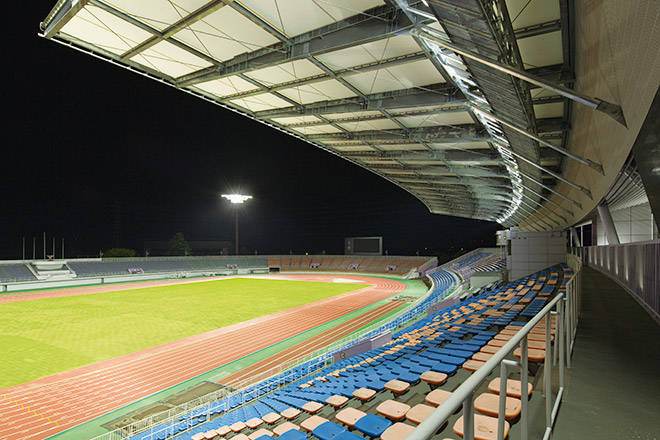

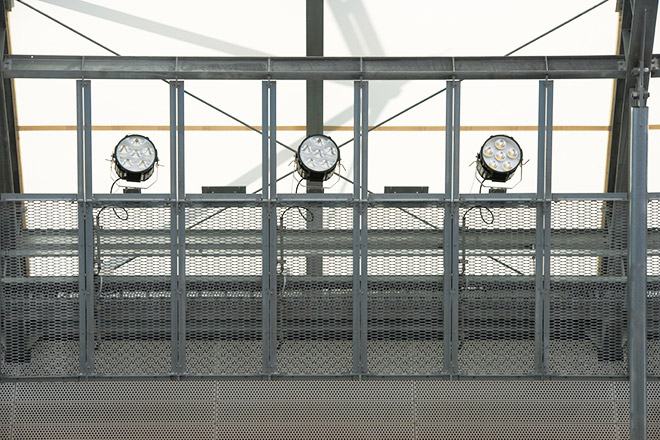

  • LEDioc FLOOD DUELL lights installed on the roof section.

  • The field is effectively lit with LED floodlights using combinations of narrow- and medium-angle light distribution, making for a comfortable night-game lighting environment conscious of light leakage into the surrounding environment.

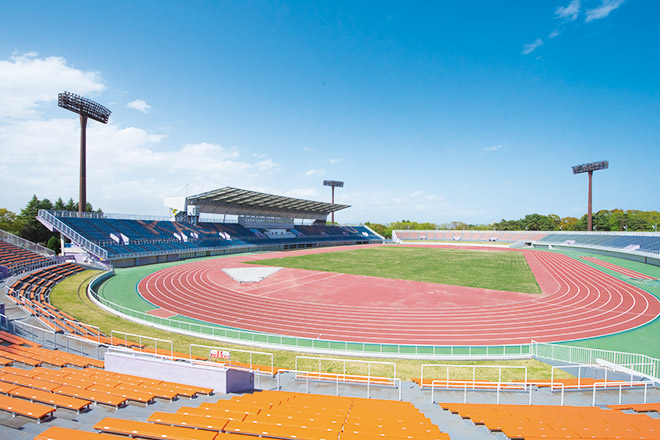

  • A daytime view of the stadium, which has been accredited as Category 1 by the Japan Association of Athletics Federations.

about

Installation date

March, 2018

Location

Kasamatsu Athletics Stadium is a track-and-field stadium located inside Kasamatsu Sports Park that has been accredited as Category 1 by the Japan Association of Athletics Federations. With a spacious area of roughly 56ha, the premises of Kasamatsu Sports Park include a full range of facilities, including, in addition to the stadium, an axillary field, an indoor swimming pool and ice-skating rink, a gymnasium, tennis courts, a ball- sports arena, a climbing zone, and a Japanese garden and various open spaces, and the park is open to the wider public as a place for sports and recreation. With the stadium set to be the main venue for the Iki-Iki Ibaraki Yume National Sports Festival to be held in 2019, and to host the opening and closing ceremonies as well as track-and-field events, work was carried out to extend the surface area of the roof and completely upgrade the ageing lighting equipment to LED floodlights. The 278 x 2kW short-arc metal halide lamp floodlights, 144 x 1.5kW metal halide lamp floodlights, and 24 x safety lamps installed on the existing 4 lighting towers were upgraded to 278 x 1300W LEDioc FLOOD DUELL high-output LED floodlights and 18 x 380W LEDioc FLOOD BLITZ lights, while 29 x 1300W LEDioc FLOOD DUELL high-output LED floodlights and 13 x 830W LEDioc FLOOD DUELL high-output LED floodlights were newly installed on the roof section, achieving large-scale power savings while enabling a guaranteed minimum brightness of 1500ℓx for the ground surface.

Specification

  • LEDioc FLOOD DUELL

    1300W type - 307

    830W type - 13

  • LEDioc FLOOD BLITZ 380W type - 18

  • LEDioc FLOOD NEO class 70 - 9

  • LEDioc FLOOD NEO 100W - 28
