Sports Lighting Grounds

Miyashita Community SquareUwajima City, Ehime Prefecture

A popular multi-purpose sports field for the local community, illuminated for comfort under the light of LEDioc FLOOD AVANT class 400 floodlights

Add to My List

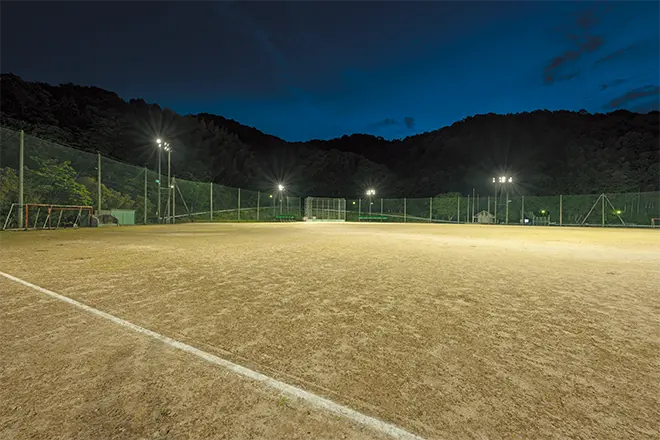

  • View out towards Court A from the home plate side of Court B: LEDioc FLOOD AVANT class 400 floodlights in wide, medium and medium-narrow light distribution types combine to create a highly uniform and high quality visual environment.

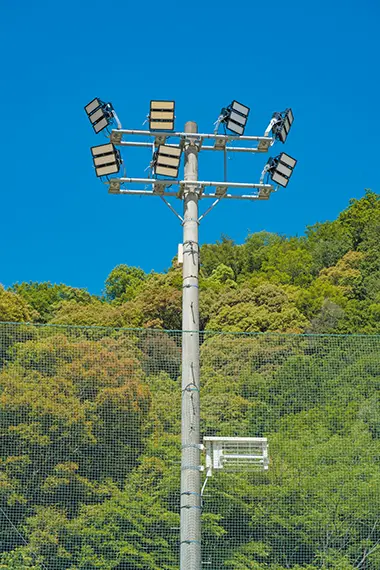

  • Compact, highly efficient LEDioc FLOOD AVANT class 400 LED floodlights.

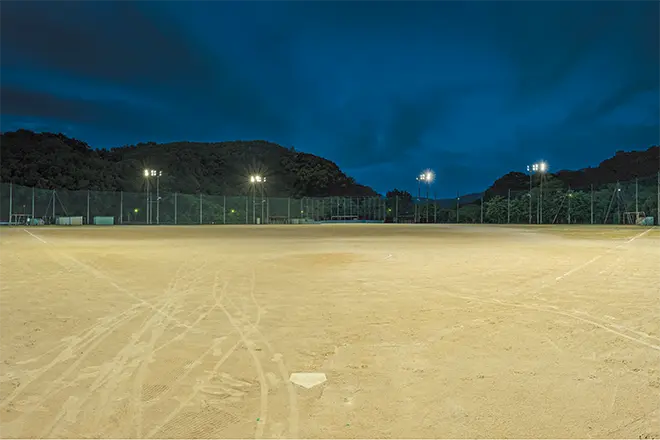

  • View out towards Court B from the third base of Court A: Producing levels of brightness equivalent to 1000W metal halide lamps, LEDioc FLOOD AVANT class 400 floodlights, deliver both optimal light levels and energy savings.

about

Installation date

March, 2025

Location

Situated amongst surroundings abundant with nature, Miyashita Community Square is a multi-purpose sports field operated by the city of Uwajima - furnished with a scoreboard and lighting installations, the dirt field is suited to a variety of sports, including baseball and softball. Open from 7:00 AM through to 10:00 PM, it is a popular and much-utilized venue where local residents can maintain their wellbeing through sports, in addition to being a place to enjoy a walk, watch a game, or just simply relax.

In March 2025 the city of Uwajima City carried out renovation works to the lighting facilities at the venue, upgrading from the existing HID floodlights to LED lighting. Adopting high-efficiency LEDioc FLOOD AVANT class 400 LED floodlights, the grounds which have two courts (A & B) are illuminated to Category III level for rubber ball baseball under the JIS Lighting Standards for Athletic Competition, with an infield illuminance of ≥ 300ℓx and an outfield illumination of ≥ 200ℓx. Retaining and reusing the existing lighting poles and replacing only the fixtures, a total of 62 floodlights in a combination of wide, medium, and medium-narrow angle light distribution types have maintained brightness levels on a par or not less than with the previous installation, whilst at the same time delivering significant energy savings.

With the entire ground benefiting from efficient and highly uniform light, users are able to also enjoy a comfortable and safe playing environment by night.

Specification

  • LEDioc FLOOD AVANT class 400 - 62
