Sports Lighting Baseball

Yokohama StadiumYokohama City, Kanagawa Prefecture

Japan's first total-field change to LED for lighting equipment for professional baseball outdoor night games

Add to My List
  • LED
  •

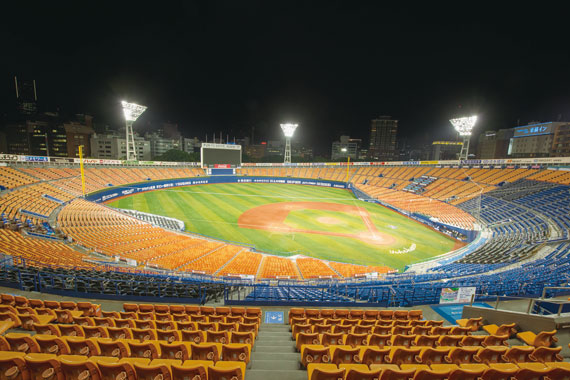

  • A panoramic night-time view of Yokohama Stadium, which boasts the capacity to seat roughly 30000 people in its combined inner and outer seating.

  • A view of center-field from the firstbase-side batting circle.

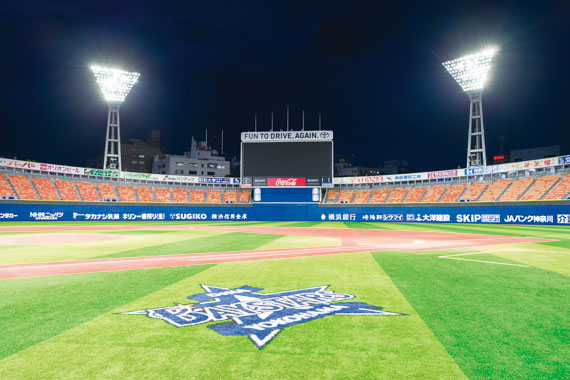

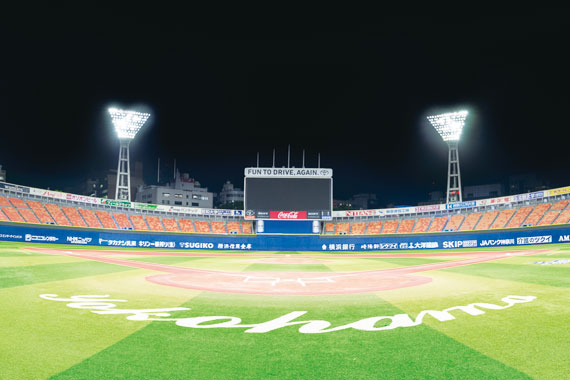

  • A view of center-field from behind the home plate.

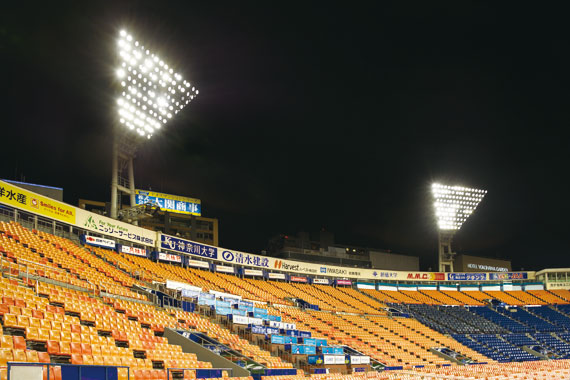

  • The lighting towers installed on the first-base-side powered-on.

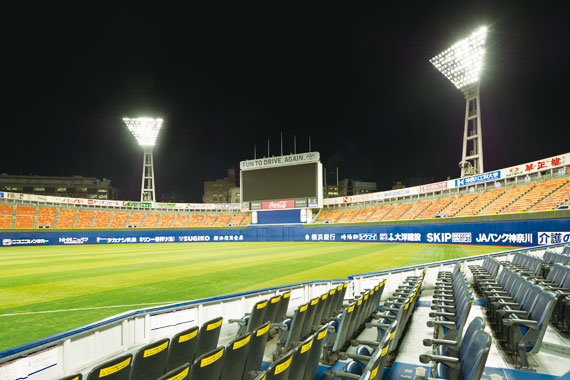

  • A view of center-field from the exciting seats close to the field.

  • Looking towards the home plate from center-field.

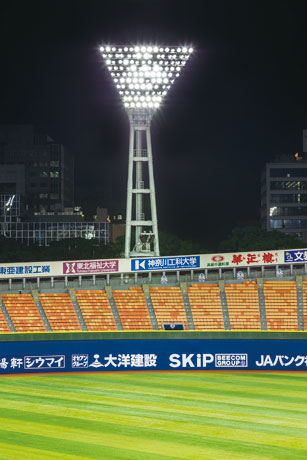

  • The powered-on lighting towers.

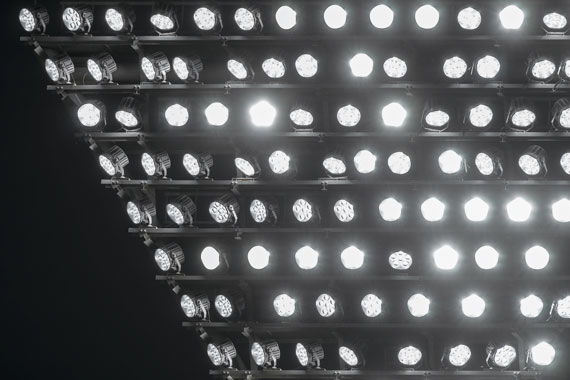

  • LEDioc FLOOD DUELL LED floodlights with three kinds of light distribution - medium/wide/super-wideangle - have been installed on the lighting towers.

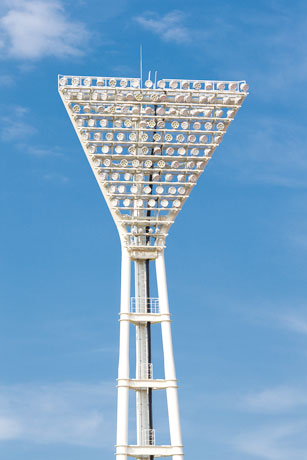

  • The installed LEDioc FLOOD DUELL LED floodlights have been painted white to match the color of the lighting towers. Furthermore, 80W LEDioc FLOOD BLITZ have been installed on the lowest level of the lighting towers for event lighting.

about

Installation date

March, 2015

Location

The first professional baseball game held at night in Japan was held in 1948, at Yokohama Park Baseball Field (Yokohama Park Peace Baseball Field), which was the predecessor of Yokohama Stadium. On the location where that baseball field once stood, the current Yokohama Stadium, home field of the Yokohama DeNA BayStars professional baseball team, was built in 1978. In 2015, the lighting equipment for the entire field for professional baseball outdoor night games was changed to LED lighting, with the introduction of Iwasaki Electric LED floodlights and lighting systems. It was the first time in Japan that the lighting equipment for professional baseball outdoor night games for the entire field was changed from HID to LED lighting, and enabled the realization of great power conservation along with a simultaneous improvement in the lighting environment. The change to LED consisted of renovations involving the replacement of the existing 708 1500W metal halide lamps with 660 high-performance and high-color-rendering LEDioc FLOOD DUELL LED floodlights (111.8ℓm/W inherent energy consumption performance), reducing overall power consumption by roughly 56% . The number of fixtures used has been reduced, while the brightness required for holding professional baseball matches has been guaranteed at a level greater than the previous one, and the design brightness is maintained at a fixed level from the time of initial installation until the end of the lighting's operating life with an initial brightness compensation function. At the same time, a reduction in the amount of power used initially has been made possible. The use of separately installed LED power supplies that enable a wiring length of 50m between the LED fixtures and the relevant LED power supply has made it possible to install the power supplies at the base of the steel pylons, reducing the load for each of the pylons.

Specification

  • LEDioc FLOOD DUELL - 660

  • ITACS LB SYSTEM - 1
