Urbanscape Lighting Feature Lighting

Meiji Co., Ltd. Osaka Factory, Chocolate Panel IlluminationsTakatsuki City, Osaka

Delicious Scenery created by a large scale panel enjoyed by many is illuminated appealingly by night

Add to My List
  • LED
  •

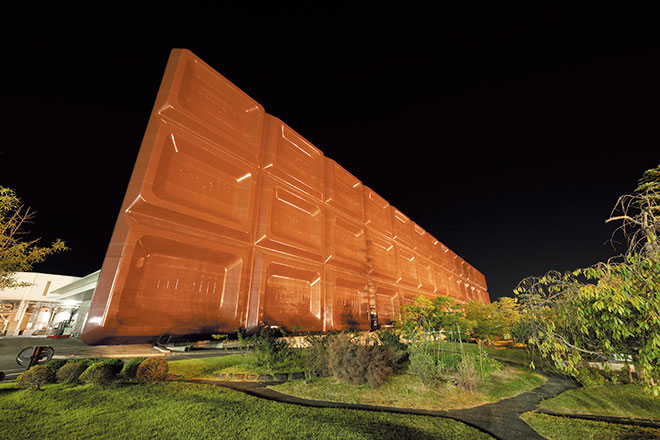

  • Using incandescent color type LEDioc FLOOD NEO class 80 floodlights to illuminate the giant panel, a smooth and rich feel akin to real chocolate is effectively reproduced.

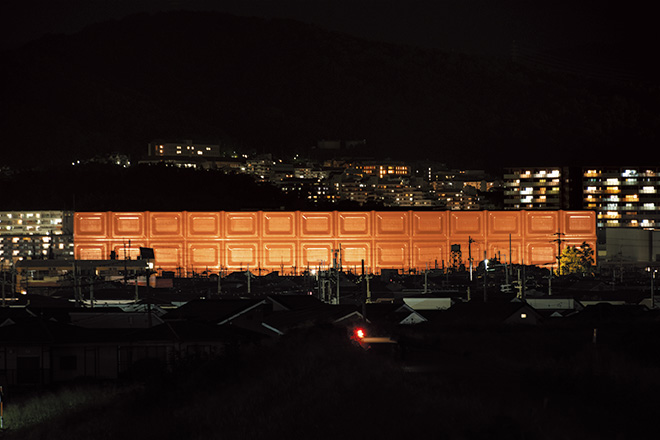

  • Nighttime view of "Big Milch" from afar.

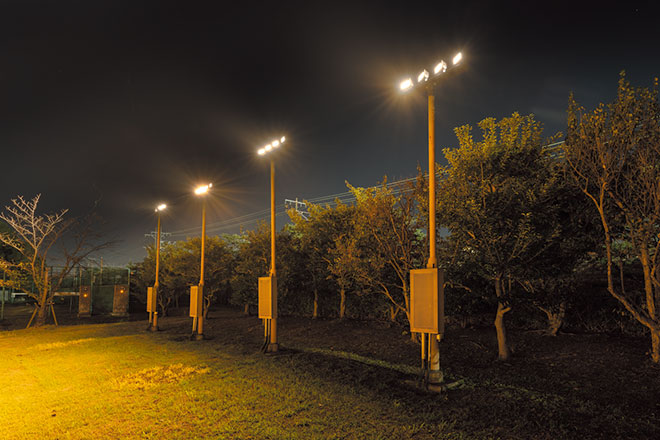

  • The aiming and positioning of the floodlights has been carefully planned to best minimize their impact upon the tennis courts positioned between the panel and the floodlights.

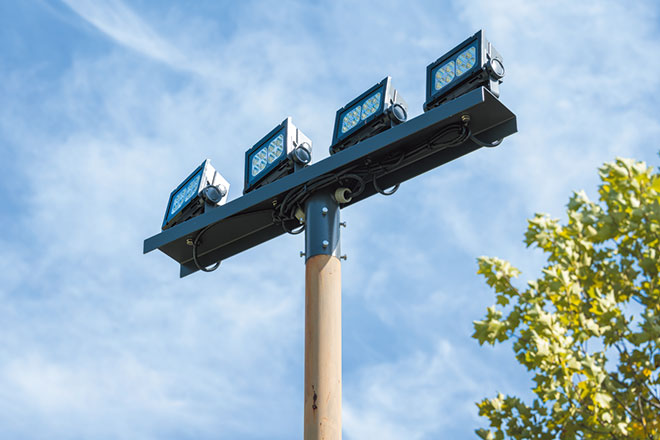

  • The existing lighting columns have been retained and reused to have LEDioc FLOOD NEO class 80 floodlights mounted on them.

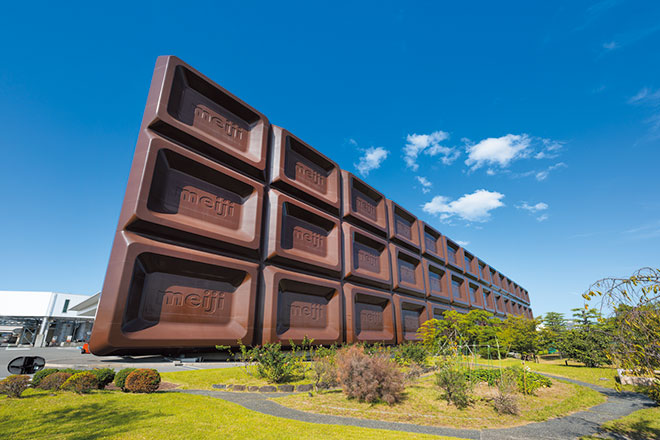

  • Daytime view of the "Big Milch" panel - so large that the letter "i" in the carved out "meiji" branding is around the height of a person.

about

Installation date

March, 2023

Location

The Osaka factory of Meiji Co., Ltd. located in Takatsuki City, Osaka has a giant chocolate bar shaped panel measuring 27.59m in height and 165.95m across, which was installed at the time of the reconstruction of the factory building nearby railway in 2011. It has also been recognized by the Guiness World Records as the largest plastic advertising board in the world. Modelled on the shape of Meiji Co., Ltd.'s long-selling Meiji Milk Chocolate bar, the giant board affectionately known as "Big Milch" which would equate to 470000 of the actual chocolate bars, also serves a dual purpose as a color screen for the various industrial equipment and facilities placed behind it.

As the existing HID floodlight installation illuminating the panel had gradually deteriorated over time, in line with its energy savings measures Meiji Co., Ltd. undertook lighting upgrade works to replace the installation with LED lighting in March 2023. Upon carefully considering how to illuminate the panel evenly and without any dark patches, measurements were made of the illuminance levels and reflectivity on the panel from the existing HID installation when deciding upon the number of units to be installed, and their output level. A desire to ensure the smooth and rich appearance of delicious chocolate would not be diminished saw the selection of LEDioc FLOOD NEO class 80 floodlights in incandescent color type to illuminate the panel. Maintaining the existing illuminance levels whilst reducing the number of installed units from 64 to 48, the new scheme also contributes greatly towards energy savings.

Clearly visible from carriages of the JR Kyoto Line trains that run nearby, "Big Milch" is also a popular photo spot for visitors who take part in tours of the factory. Changing in appearance with the changes in natural light throughout the day, and then under the illuminations by night, it is hoped that this "Delicious Scenery" will continue to be enjoyed and savored as a local symbol.

Specification

  • LEDioc FLOOD NEO class 80 - 48

  • Mounting Frame - 12
