Urbanscape Lighting Feature Lighting

Odakyu Odawara Line Shimokitazawa Station, Illumination of New Station BuildingSetagaya Ward, Tokyo

An illumination full of variety provides an attractive luster for the entrance to Shimokitazawa, a popular source for culture and art

Add to My List
  • LED
  •

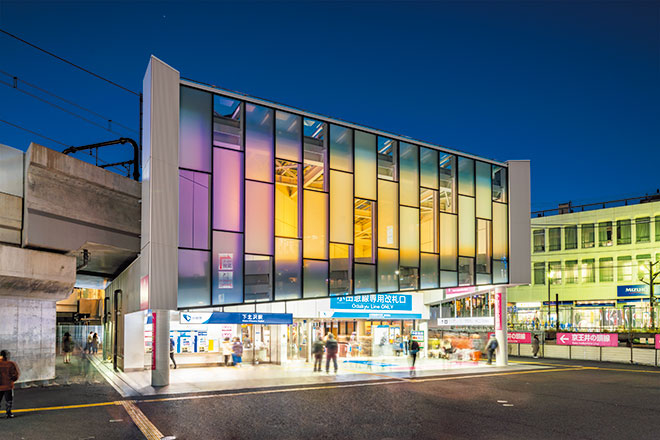

  • The LEDioc Color Controller is used to provide fine control over the LEDioc FLOOD FULL-COLOR lights to create a gradation between two colors, one light at a time, starting from the left. (Winter lighting pattern)

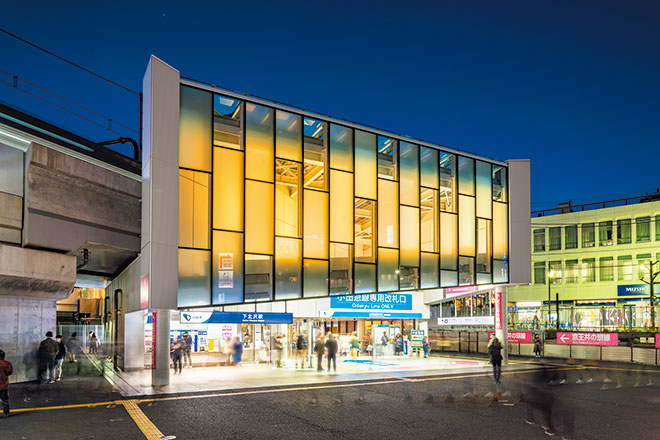

  • The lights use two colors set for each season as basic colors, with color gradation taking place in cycles of 4 minutes to give the space a sense of change. (Winter lighting pattern / during yellow lighting)

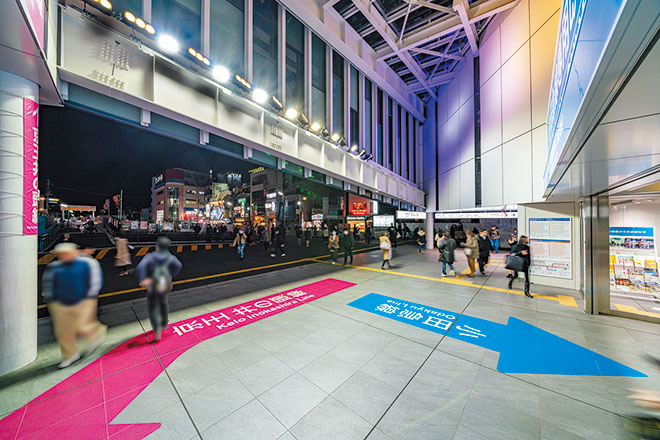

  • In the winter season from December to February, the lighting pattern has the basic colors of purple and yellow. (During purple lighting)

  • The 120W LEDioc FLOOD FULL-COLOR lights installed on the large beam on the glass wall side illuminate the upper part of the back wall, and aim to spread light throughout the entire space through interreflection.

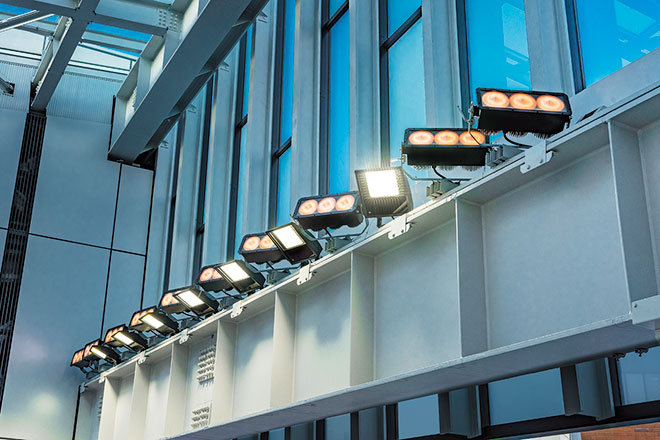

  • The installed 120W LEDioc FLOOD FULL-COLOR full-color LED floodlights, which can freely express various colors of light.

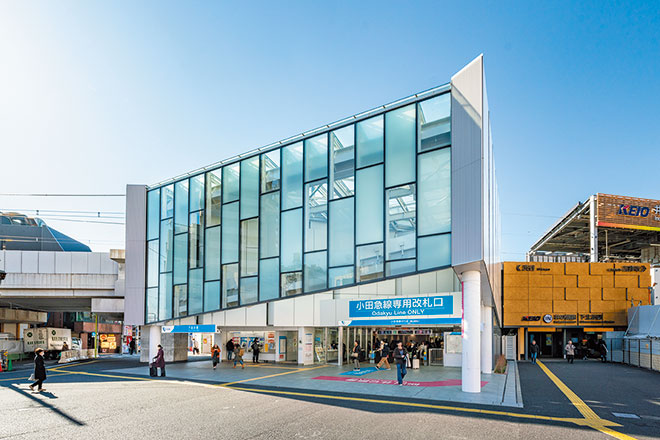

  • A daytime view of the station building, which gives a bright and open impression.

about

Installation date

December, 2018

Location

Located in Tokyo's Setagaya Ward, Odakyu Electric Railway's Shimokitazawa Station is a station on the Odakyu Electric Railway's Odawara Line that connects Shinjuku Station, a terminal station in Tokyo, and Odawara Station in Kanagawa Prefecture. The completion in March 2018 of a project creating quadruple tracks saw it transform into an underground station with a twin-layer structure, and in December of the same year the East Entrance opened as the new main entrance to Shimokitazawa Station, and this was followed by the opening of the Central Entrance ticket gates in March 2019. It is part of a multi-level intersection with the nearby Keio Inokashira Line Shimokitazawa Station, with the Odakyu Line station underground and the Keio Line station on ground-level.

The new station building is full of natural light and has a bright and modern feel, and diverse lighting displays befitting the Shimokitazawa district as a source of various cultural trends and also matching local events and the seasons are on show as part of illuminations on the glass-wall surface on its northern side. 120W LEDioc FLOOD FULL-COLOR LED floodlights, which have a free range of expression for various colors of light, have been installed on the large beam on the side of the building where the glass curtain wall is located, and by illuminating the upper section of the back wall, full-color light spreads throughout the entire space through interreflection to realize more effective lighting effects.

For lighting control, a LEDioc Color Controller DMX controller has been used, as it enables multiple-unit lighting effects through the use of programs made up of various scenes. In addition to creating scenery with soft light like that from paper lanterns by illuminating the space inside the station building with full-color light, and also creating twin-color gradation effects that change the color of the light according to the four seasons, lighting shows matching various events including Christmas and New-Year also take place, adding color to the new entrance to Shimokitazawa, an attractive and ever-evolving district that throngs with daily crowds of visitors.

Specification

  • LEDioc FLOOD FULL-COLOR 120W type - 4

  • LEDioc COLOR CONTROLLER - 1
