Sports Lighting Tennis

Tochigi City General Sports Park, Tennis CourtsTochigi City, Tochigi Prefecture

LED light brings a comfortable nighttime playing environment to tennis courts situated within the grounds of a well-equipped general sports park

Add to My List
  • LED
  •

  • Providing light output on a par with 1500W metal halide lamps, the installation of LEDioc FLOOD AVANT class 700 floodlights delivers an average surface illuminance level of 500ℓx whilst also contributing towards reductions in energy consumption.

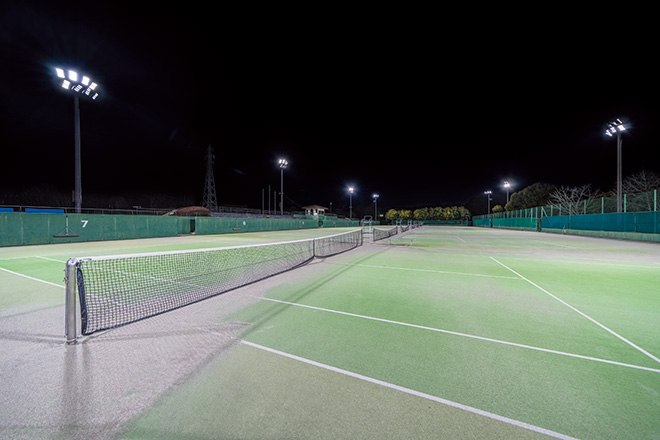

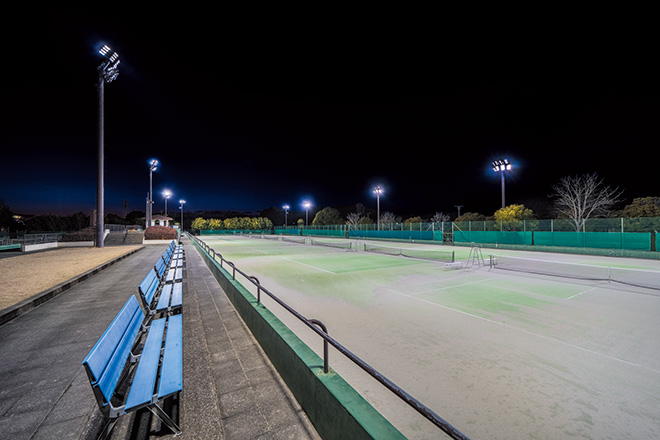

  • Through a combined total of 64 units of LEDioc FLOOD AVANT class 700 floodlights across 8 courts, the courts are illuminated efficiently to achieve an optimal visual environment.

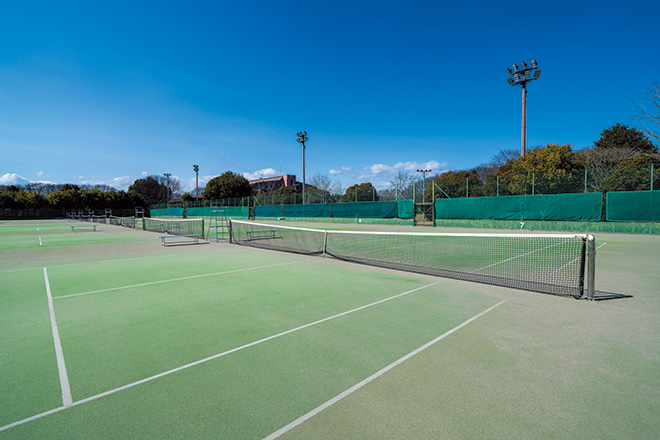

  • Daytime view of the courts, which accommodate both regular and soft tennis.

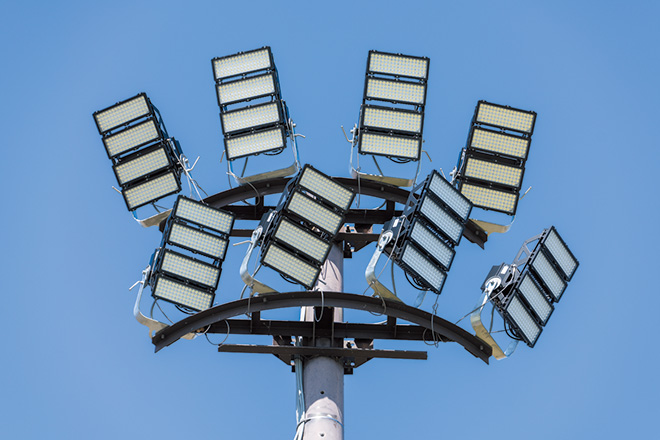

  • Wide beam, high-efficiency versions of LEDioc FLOOD AVANT class 700 floodlights in action.

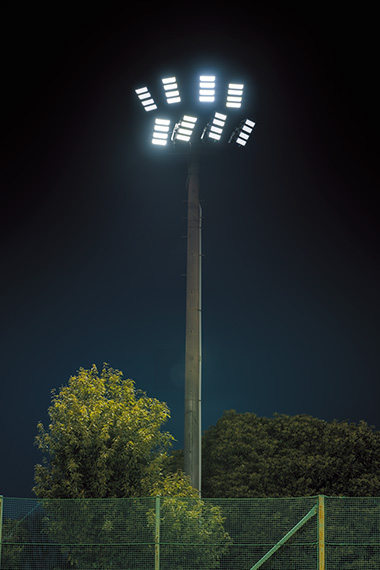

  • Lighting mast mounted with 8 units of LEDioc FLOOD AVANT class 700 floodlights.

about

Installation date

March, 2024

Location

Set within a spacious site of around 37 hectares, the Tochigi City General Sports Park features sporting facilities rated amongst the best in the prefecture, including a multipurpose sports hall, indoor and outdoor swimming pools, a baseball ground and athletics track, in addition to its wide open green spaces. Welcoming around 600000 visitors annually, the venue is not only widely enjoyed as a place for sports and recreational activities, but also serves as a disaster evacuation site.

Set within the park, its tennis facility comprises 16 courts, of which 8 are furnished with lighting equipment. With a view to reducing its CO₂ emissions, energy consumption, and maintenance requirements, the City of Tochigi carried out lighting improvement works to update the installation at the tennis courts to LED in March 2024. The LEDioc FLOOD AVANT class 700 LED floodlights which replaced the existing 1kW metal halide floodlights produce light output levels equivalent to 1500W metal halide lamps, helping to deliver both energy savings and increased illuminance levels.

As the first LED lighting installation used on an outdoor sports facility within the Tochigi City General Sports Park, the scheme is providing an optimal lit environment for tennis to be enjoyed in comfort beyond daylight hours at the much-used courts.

Specification

  • LEDioc FLOOD AVANT class 700 - 64

  • Electric Bug Killer - 2
