Road Lighting Service Area

Shizuoka Service AreaShizuoka City, Shizuoka Prefecture

Real time active dimming of lights in a parking lot is achieved by coordinating LED floodlights with a special control system

Add to My List
  • LED
  • HID
  • Night view of the parking lot for large vehicles at Shizuoka SA (inbound).

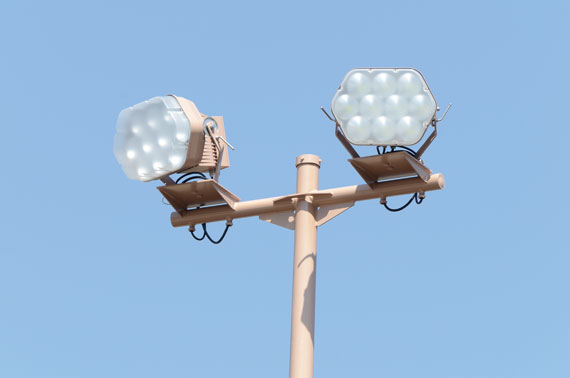

  • Shizuoka SA (inbound). Light source is the high output LED floodlights LEDioc FLOOD BLITZ.

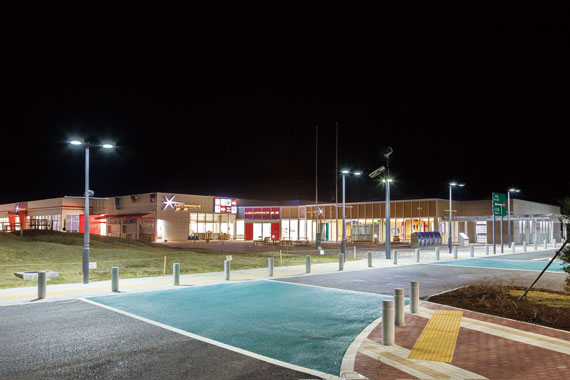

  • View of Shizuoka SA (inbound) in front of NEOPASA Shizuoka at night.

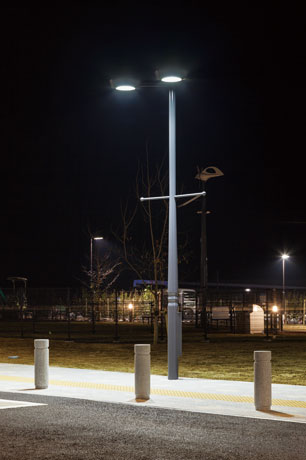

  • The lower part of the poles shows a kind of artistic touch, with a curved, concavo-convex design. It gives an accent to the whole design of the pole and the illumination is also given special attention by using LEDioc AREA MITIS B LED lamps.

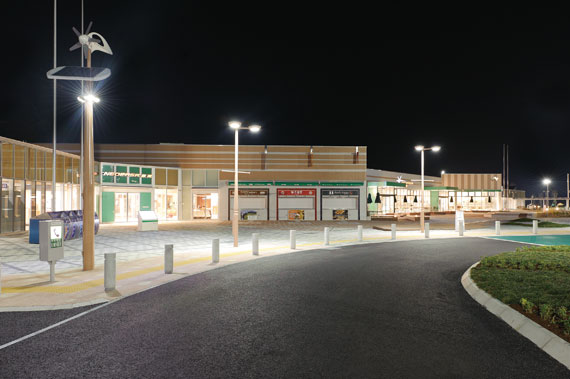

  • View of Shizuoka SA (outbound) at night. The passage ways are pleasantly illuminated by LED light using LEDioc AREA MITIS B fixtures.

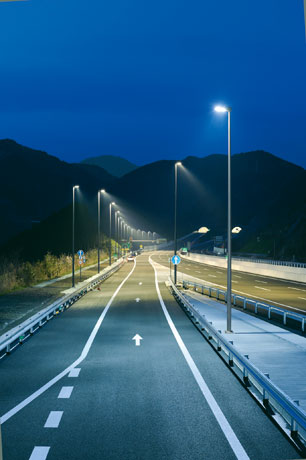

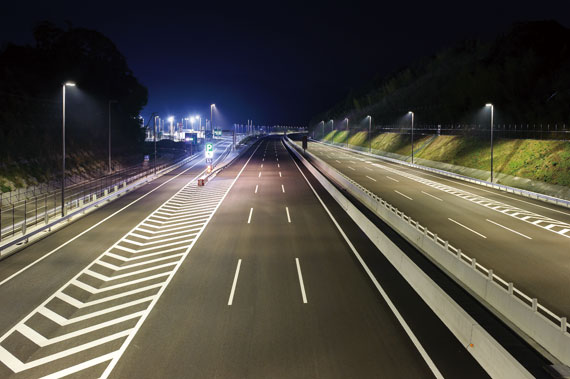

  • Near the entrance of Shizuoka SA (inbound). Lighting fixtures that can cover five-lane width are installed, providing an even luminance throughout the freeway.

  • The lamps that illuminate the junction of Shizuoka SA (inbound) are the CERA ARC EX type.

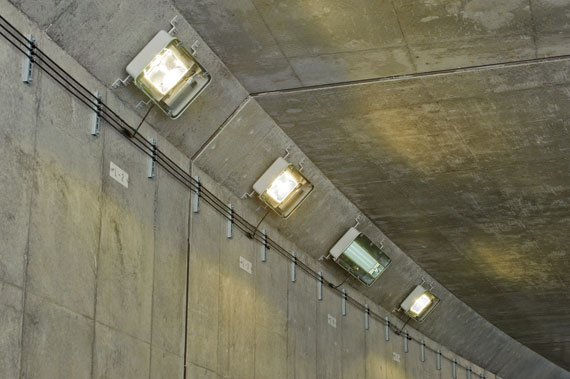

  • The lighting for the culvert of Shizuoka SA (outbound) uses Hf32W and CERA ARC EX lamps.

about

Installation date

April, 2012

NEOPASA Shizuoka, situated in the center of Shizuoka Prefecture, is designed on the concept of a "heartfelt oasis" providing a place of leisure and relaxation where local specialties and souvenirs are on offer. Inbound Service Area was developed as a super-eco area complete with state-of-the art environmental measures, including the use of LED lamps to create an environmentally-friendly lighting environment. A key concern was to avoid an excessive number of poles that may give a cluttered look to the parking lot. So the cameras, lighting fixtures and other equipment were all installed together on multi-purpose poles. Smart controls are also used. The vacancy information processed by the image analysis system of the parking lot is combined with the dimmable LED floodlights, and this allows the light to be adjusted in real time at each parking block. The color of the lamps used was chosen to harmonize with the buildings. The contoured design at the lower part of the poles also accentuates the area, achieving an innovative look that blends well with the new freeway and IC facilities.

Specification

  • HID streetlight - 174

  • LED streetlight - 49

  • LED floodlight - 22

  • HID polelight - 19

  • LED polelight - 54

  • Fluorescent tunnel light - 11

  • HID tunnel light - 11

  • Project summary

    Shin-Tomei Expressway
