Area Lighting Station Plaza
Nissei-Chuo Station PlazaInagawa Town, Kawabe District, Hyogo Prefecture
LED lighting provides an evening ambiance of reassurance and safety at the gateway to Inagawa Town, where a welcoming habitat blends harmoniously with the richness of its natural environs
Add to My List
-

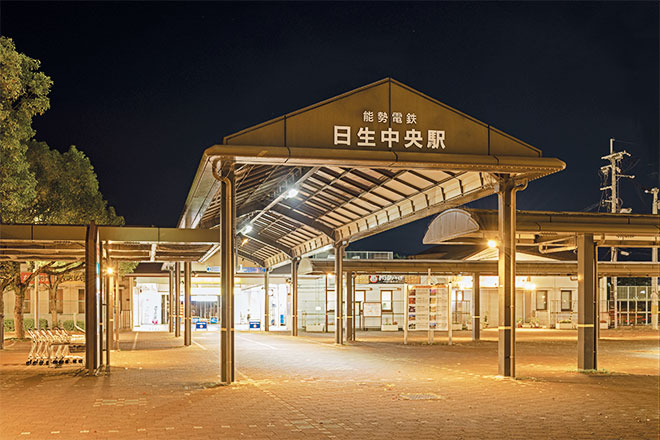

Nighttime view of the area around the South Gate of Nissei-Chuo Station, where a warm lighting scene is created through the use of LEDioc Outdoor Spotlight luminaires fitted with LEDioc LED EYE Lamp 11W, Incandescent Color.
-

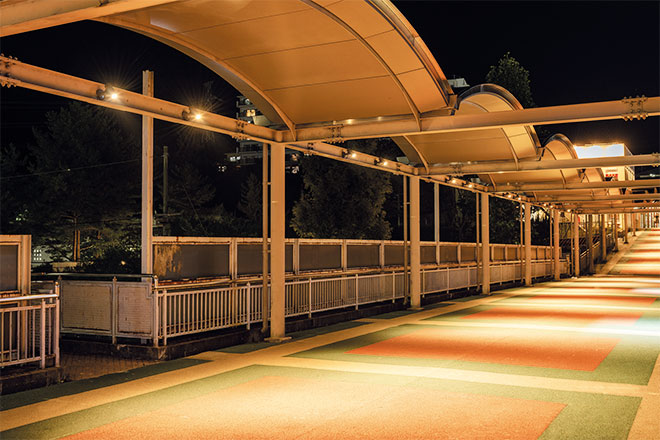

Compact LEDioc UNO class 20 LED spotlights in Incandescent Color are installed in the sheltered area by the North Gate to provide an ambiance which is soothing and warm in a similar vein to that by the South Gate.
-

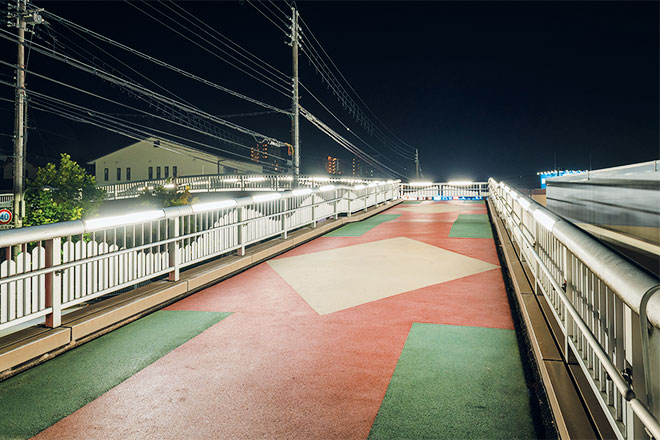

Handrail lighting has been used to illuminate the elevated walkway by the North Gate, with the installation of LEDioc MULTILINE luminaires providing ample illuminance in addition to energy savings.
-

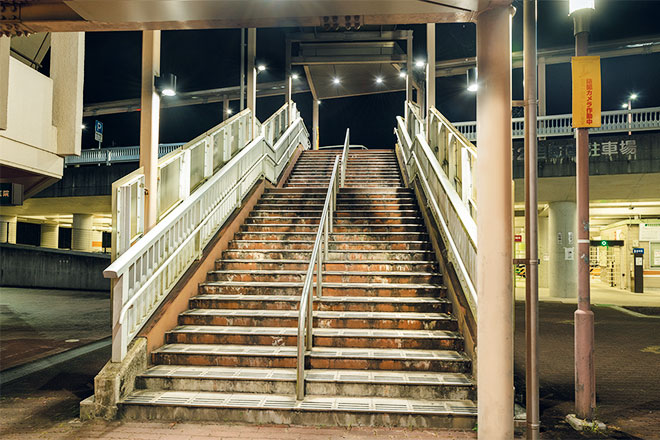

Lighting for the stairs leading to the elevated walkway is provided by LEDioc UNO class 20 in cool white color.
-

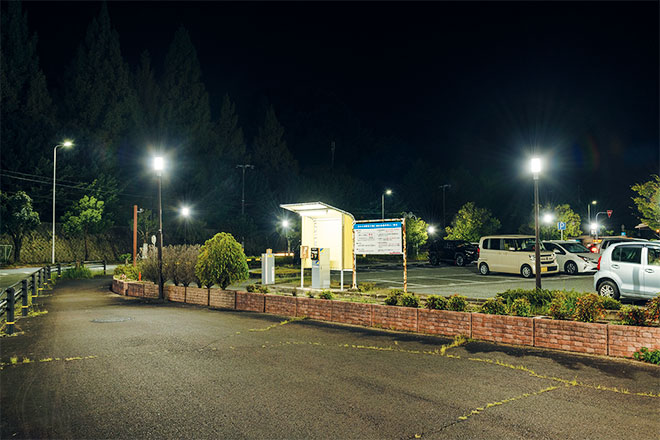

Nighttime view of the parking area which is located near the South Gate of the station. LEDioc AREA TOLICA-L area lighting luminaires have been installed to provide lighting levels equivalent to the existing scheme whilst also offering energy savings, and heighten the sense of security during the night.
A program of replacement works to update the street lighting around the town with low-energy and long-life LED lighting has been taking place in Inagawa, and as part of this program the area around the plaza of Nissei-Chuo station has also undergone improvement works to update the street lighting and the lighting of public facilities to the front of the station and areas around it, to LED.
Situated in a tranquil residential area nestled amongst its verdant natural surroundings, Nissei-Chuo Station is connected to the Nose Electric Railway line and is also the starting point for the "Nissei Express" direct rapid service to Hankyu Rail Osaka Umeda Station.
Where previously compact fluorescent 27W lights had been mounted on the supporting beams of the shelter connecting the South Gate of the station building to the bus terminal, the lighting is now provided by LEDioc Outdoor Spotlight luminaires fitted with LEDioc LED EYE Lamp 11W, Incandescent Color; in a similar vein, the compact 35W ceramic metal halide fittings previously mounted on the joists of the shelter connecting the North Gate of the station building to the roundabout to its northern side have been replaced with LEDioc UNO class 20 exterior use LED spotlights. Through carefully selecting the LED luminaires best suited to the needs of each location, the upgrade works have produced a reassuring and agreeable setting where the previous levels of illuminance have not only been maintained but surpassed, whilst also achieving significant energy saving contributions.
Specification
LEDioc Outdoor Spotlight - 67
LEDioc UNO class 20 - 49
LEDioc MULTILINE - 40
LEDioc AREA TOLICA-L - 18
LEDioc ROAD S - 4
