Isohara Community Park Multipurpose Indoor Sports FacilityKitaibaraki City, Ibaraki Prefecture

A good lighting environment created by using LEDioc HIGH-BAY Γ lights to light an indoor sports facility where you can enjoy futsal and tennis regardless of the weather

Add to My List
  • LED
  •

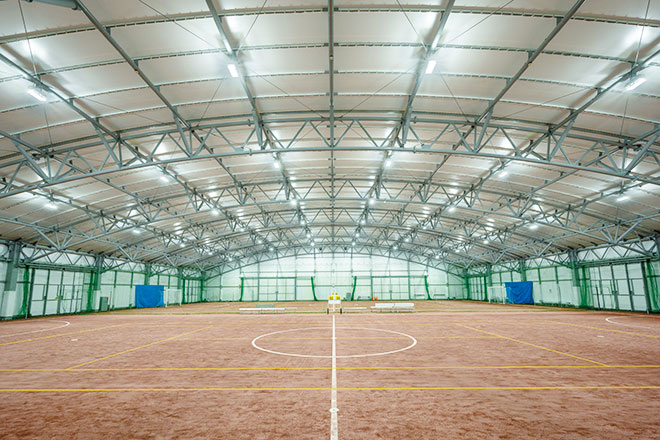

  • The indoor sports facility, which can be used as two futsal courts or two tennis courts, is brightly and uniformly illuminated by 210W LEDioc HIGH-BAY Γ lights.

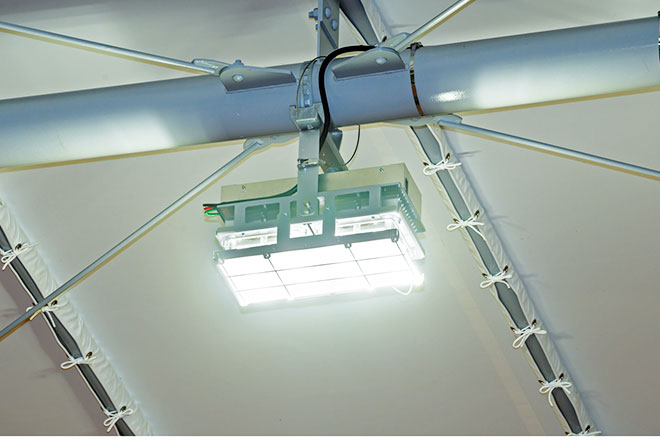

  • An installed LEDioc HIGH-BAYΓ LED high ceiling lighting fixture with attached front guard and diffusion panel.

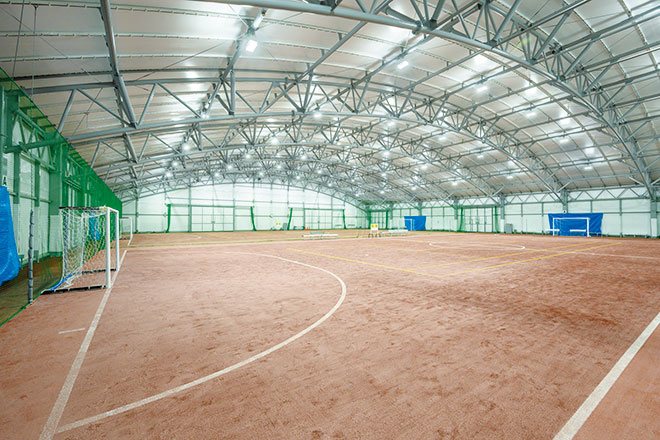

  • A futsal court is lit using LEDioc HIGH-BAY Γ lights, which have LED modules with a lifespan of 60000 hours, creating a favorable lighting environment while contributing to maintenance savings.

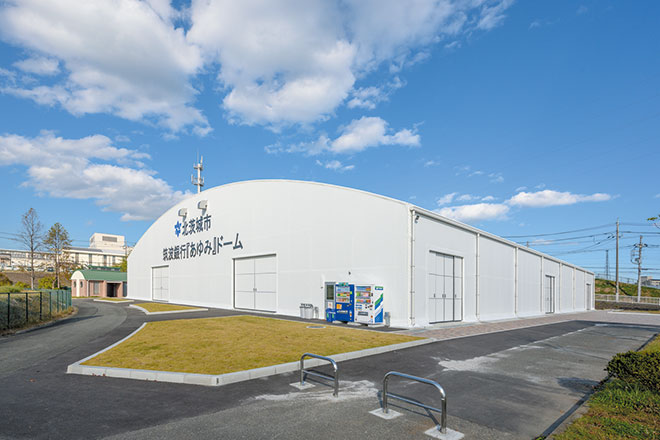

  • A view of the exterior during the day.

about

Installation date

September, 2019

Location

Isohara Community park multipurpose indoor sports facility (nickname: Tsukuba Bank "Ayumi" Dome) is an all-weather indoor sports facility that can be used for various purposes and allows for sports and recreation activities for the promotion and maintenance of citizen health "anytime", "anywhere", and by "anyone". The facility, which can be used as two futsal courts or two tennis courts, was also used as the ceremony venue for the “Iki-iki Ibaraki Yume Kokutai” National Sports Festival of Japan, and is widely used by many people, ranging from children to adults.

For lighting fixtures to illuminate the spacious indoor space comfortably, a total of 42 rectangular LEDioc HIGH-BAY Γ LED high ceiling lighting fixtures have been installed, ensuring a design brightness of 375ℓx, which surpasses the standard brightness for futsal and tennis courts in the JIS lighting standards (Athletics Category Ⅲ, Indoor) of over 200ℓx. In addition, countermeasures against glare have been given sufficient consideration through the attachment of front guards with diffusion panels that reduce glare, enabling the creation of a bright and uniform lighting environment.

LED lighting is easy to use because it can be turned on or off instantaneously, and it provides a good visual environment while contributing to further power savings.

Specification

  • LEDioc HIGH-BAY Γ 210W - 42

  • LEDioc FLOOD NEO class 60 - 3
