Commercial Lighting Station / Railway

Keio Sagamihara Line Tamasakai StationMachida City, Tokyo

Changing station platform lighting to LED to achieve large-scale power savings and a highly uniform and pleasant light environment

Add to My List
  • LED
  •

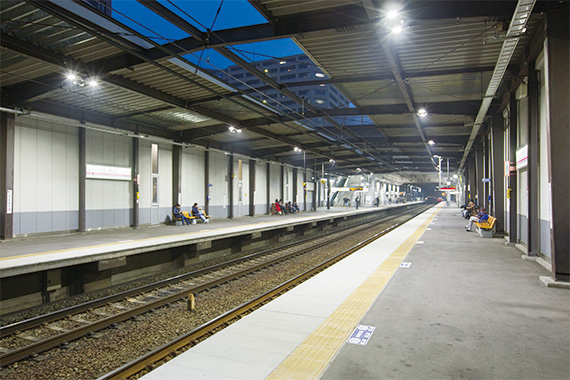

  • 130W LEDioc FLOOD NEO lights with ultrawide-angle light distribution light the platforms in their entirety, creating a pleasant and highly uniform lighting environment.

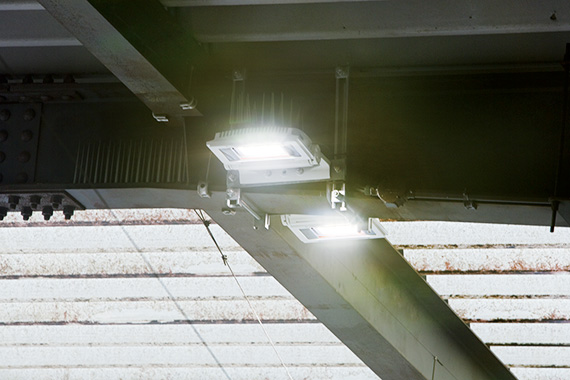

  • The installed 130W LEDioc FLOOD NEO lights with ultrawide-angle light distribution.

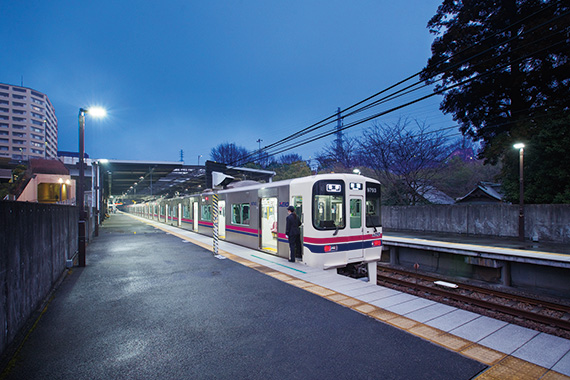

  • LEDioc AREA ALIVIO lights with horizontal light distribution have been installed on the ends of the platforms, effectively lighting the space and improving safety at night.

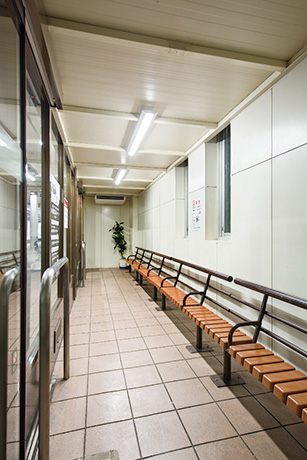

  • LEDioc LED base lights have been installed in the platform waiting rooms.

about

Installation date

February, 2017

Location

Tamasakai Station is a station on the Keio Sagamihara Line in Oyamagaoka, in Tokyo's Machida City. It is an above-ground station with 2 lines and 2 facing platforms, and in February of 2017 the Keio Corporation completed work to install LED lighting for the Tamasakai Station platforms. The existing lights were 300W mercury pole-lamps and under-eave lighting, along with under-eave trough-shaped fluorescent lamp fixtures, but in order to ensure uniform brightness on the station platforms, they were upgraded to LEDioc AREA ALIVIO lights with horizontal light distribution and LEDioc FLOOD NEO lights with ultrawide-angle light distribution. They light the entire platform with well-balanced LED light while taking into account light-bleed into the surrounding area, and create a pleasantly lit space while also contributing to reductions in power consumption.

Specification

  • LEDioc AREA ALIVIO - 14

  • LEDioc FLOOD NEO 130W - 68

  • LEDioc LED BASELIGHT - 4
