Road Lighting Interchange
Seisho Bypass, Hayakawa JunctionOdawara City, Kanagawa Prefecture
Installation of LEDioc ROAD low-position illumination concurrent to a program of Seisho Bypass renewal works
Add to My List
-

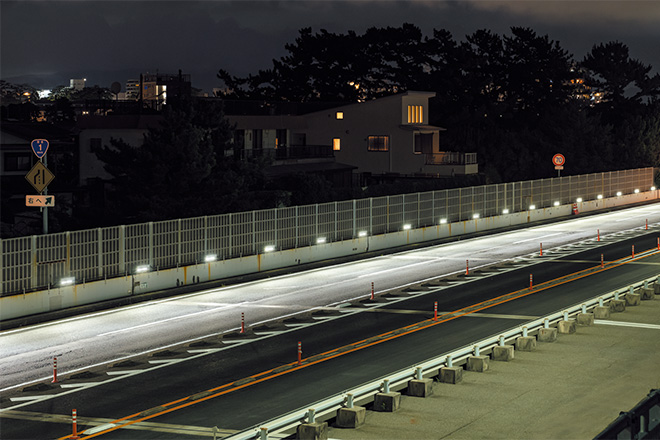

The Seisho Bypass, which looks out over Sagami Bay as it runs along the coast. The main line intersection which branches out from the Oiso direction towards the Ishibashi direction is illuminated with LEDioc ROAD low-position illumination to provide improved visibility.
-

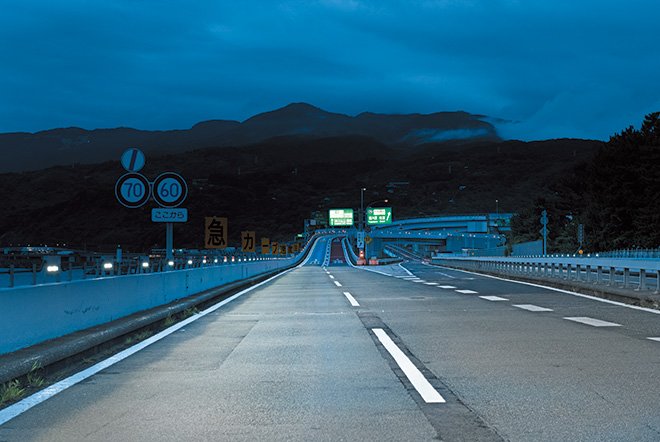

View over the main line intersection of the route from Hakone direction to the Oiso direction route. Illuminating the refurbished route with LEDioc ROAD low-position illumination which limit light spillage beyond the road areas, a lighting scene with high levels of uniformity has been achieved.
-

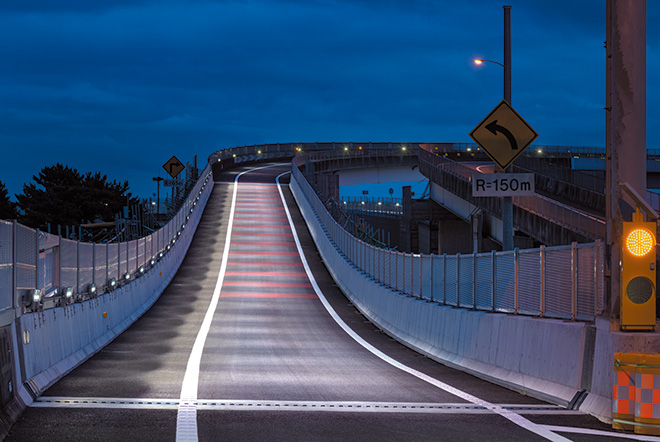

Nighttime view of the ramp route from the Hakone direction route to the Ishibashi direction route. The LEDioc ROAD low-position illumination which illuminate the route offer a lengthy rated LED module life of 60000hrs and represent a low maintenance solution.
-

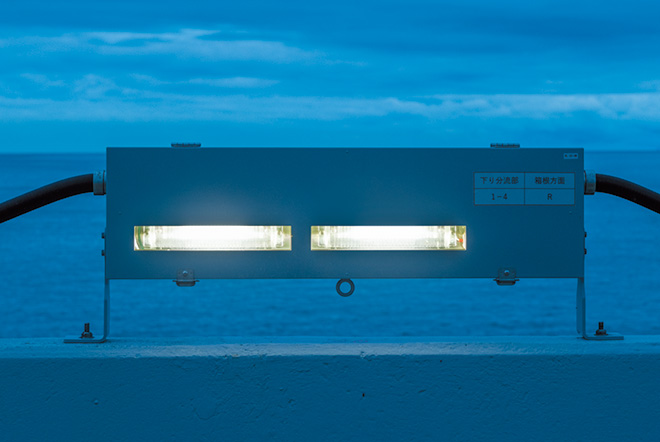

LEDioc ROAD low-position illumination in situ.
-

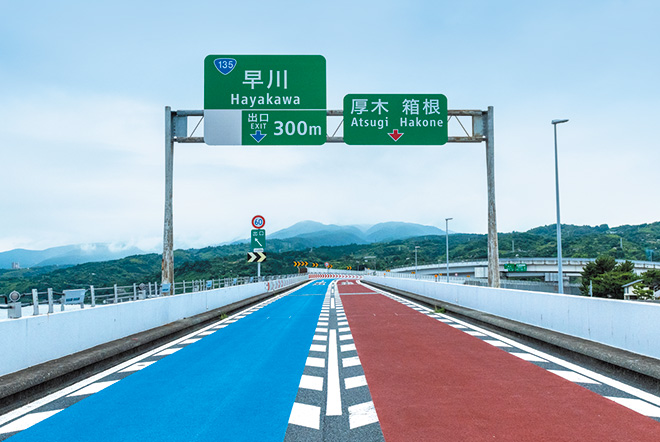

Daytime view of the Seisho Bypass heading from the direction of Oiso towards the direction of Hakone.
Seisho Bypass is a bypass of National Route 1 that links Oiso Town and Odawara City in Kanagawa Prefecture, with a general toll road operated by Central Nippon Expressways Company Limited, "NEXCO", to its west and beyond the Seisho Ninomiya Interchange.
With safety being the number one priority of NEXCO, renewal works along the Seisho Bypass (Odawara Interchange - Ishibashi Interchange - Odawara West Interchange) including the replacement of the bridge's aging concrete slabs and its expansion devices were concluded in July 2022, aiming to ensure drivers are able to enjoy a reassuring and comfortable driving experience.
At a section of Hayakawa Junction (Oiso Direction- Hakone Direction), lighting improvement works were carried out to change the lighting arrangement from pole mounted luminaires to a low-level installation, with the introduction of LEDioc ROAD low-position illumination. Amongst the benefits and advantages of affixing luminaires at lower heights to positions such as roadside balustrades is that light spillage beyond the road is reduced vis-a-vis pole mounted lighting, as well as making maintenance works in restricted spaces simpler and more convenient thanks to not requiring the use of an aerial work platform.
Specification
LEDioc ROAD low-position illumination - 267
