Factory Lighting Explosion-proof

Namie Green Ammonia Integrated Controlled Demonstration FieldNamie Town, Futaba District, Fukushima Prefecture

With safety considerations to the fore, a lighting scheme for a next-generation energies demonstration plant

Add to My List

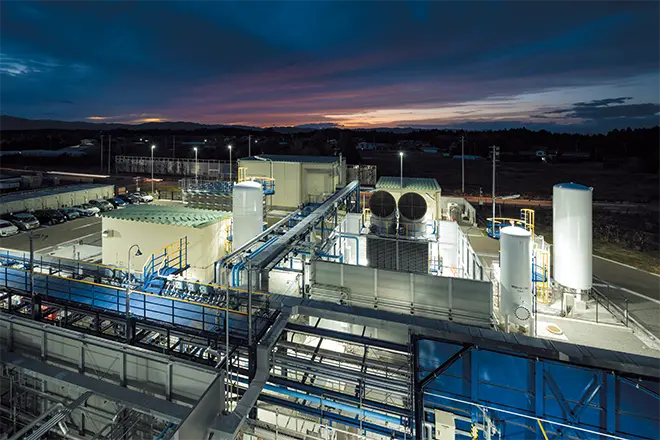

  • View out over the utility area, illuminated for comfort and safety through an appropriate and considered installation of lighting fixtures.

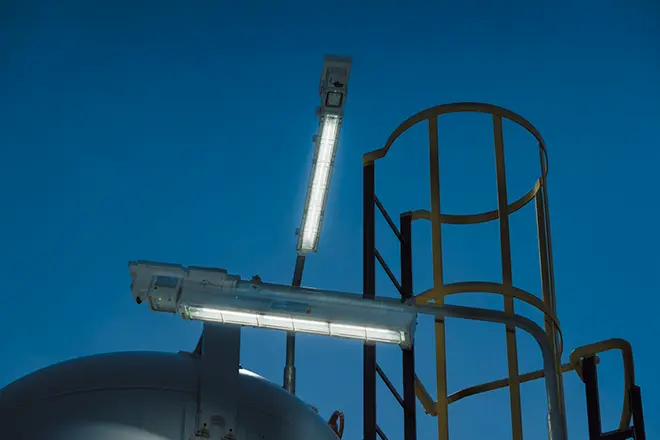

  • Enhanced safety explosion-proof LED replacements for circular fluorescent lamp lighting fixtures installed on nitrogen receiver tanks.

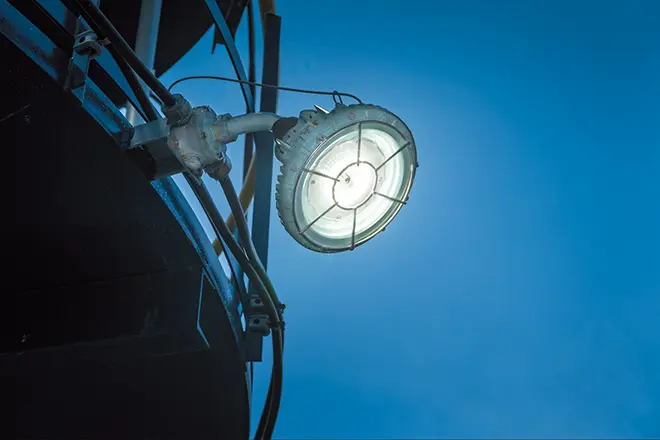

  • Enhanced safety explosion-proof LED emergency lighting fixtures installed on the nitrogen receiver tanks.

  • Compact LEDioc ROAD S street luminaires provide light around the site.

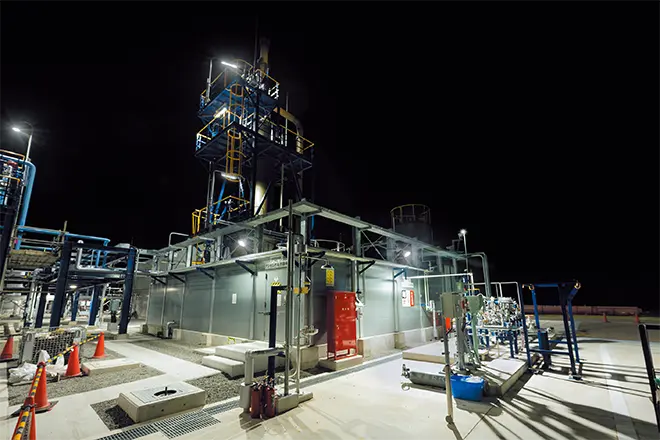

  • The area around the ammonia treatment equipment is illuminated clearly down to the ground with enhanced safety explosion-proof LED emergency lighting fixtures, and enhanced safety explosion-proof LED replacements for circular fluorescent lamp lighting fixtures, producing a comfortable working environment.

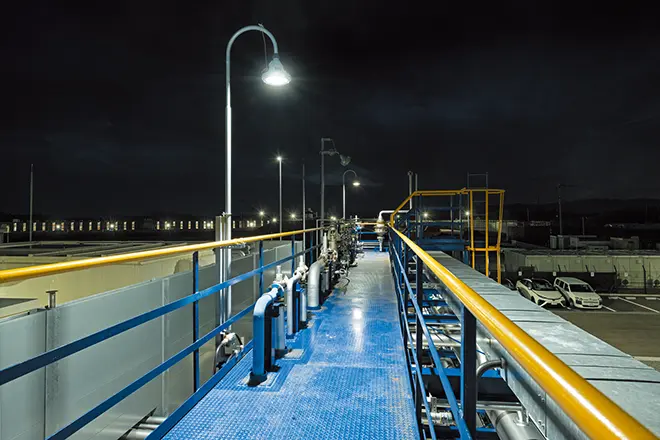

  • Lightweight and compact enhanced safety explosion-proof LED emergency lighting fixtures illuminate the walkways of ammonia storage facilities, providing a safe lighting environment with high levels of visibility.

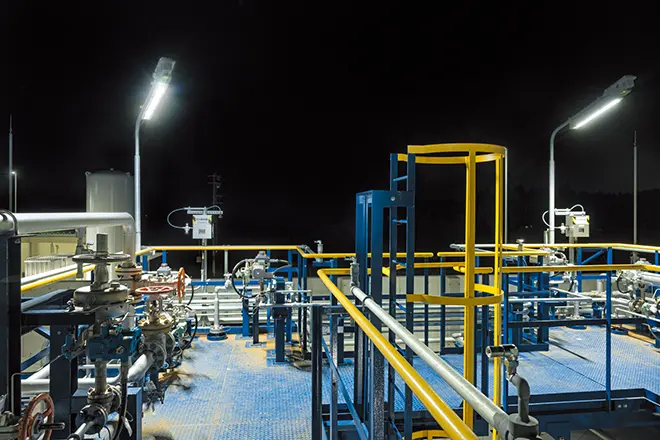

  • The north and south pipe racks are equipped with enhanced safety explosion-proof LED replacements for circular fluorescent lamp lighting fixtures to ensure a safe and efficient workflow.

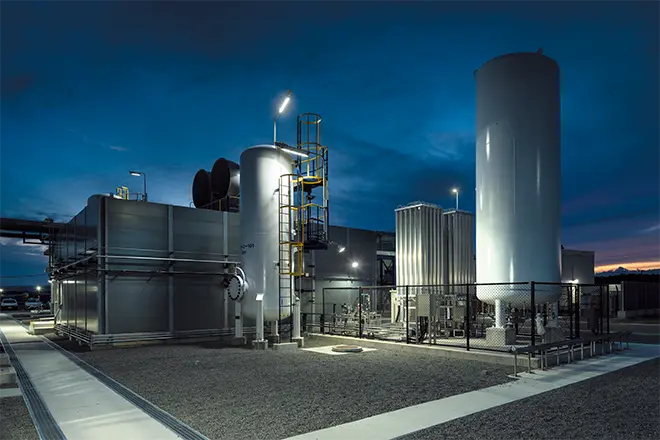

  • The nitrogen supply equipment and the areas around the nitrogen receiver tanks are illuminated by enhanced safety explosion-proof LED replacements for circular fluorescent lamp lighting fixtures, and enhanced safety explosion-proof emergency LED lighting fixtures, delivering ample illuminance.

  • Hydrogen storage facility, where the space is illuminated by pressure resistant explosion-proof LED emergency lighting with integrated emergency batteries, ensuring high levels of visibility whilst providing a safe lighting environment.

about

Installation date

November, 2025

Location

Established in Namie Town, Fukushima Prefecture, the Namie Green Ammonia Integrated Controlled Demonstration Field is a demonstration plant whose purpose is to produce green ammonia production technologies utilizing hydrogen derived from renewable energies which are gaining attention as a next-generation energy source, and also to act as a place to trial and establish the techniques required for the advanced controls of its operation and delivery.

Construction of the Namie Green Ammonia Integrated Controlled Demonstration Field was completed by the JGC Holdings Corporation in November 2025, and following trial operations, commenced green ammonia production in January 2026. The plant is scheduled to be operational by the end of 2026, and the technologies and knowledge gained there are expected to form an important foundation for the future widespread adoption of green ammonia, leading to the actualization of a decarbonized society.

The lighting installations within the plant were all selected and designated to be appropriate to their respective applications and installation environments, with the installed luminaires including enhanced safety explosion-proof LED lighting fixtures, pressure resistant explosion-proof lighting fixtures, LED base lights, and LED streetlights. The planning process was centered on prioritizing the safety of those working on site, and implemented with careful considerations made through repeated illuminance calculations and fixture placement simulations based on the conditions of each work area, the optimal type, number, and installation positioning of lighting fixtures. The resulting scheme is a safe lighting environment with high levels of visibility that takes into account the unique environment of the plant, providing reliable illuminance for the demonstration site of next generation energies.

Specification

  • Enhanced Safety Explosion-proof LED luminaire - 64

  • Enhanced Safety Explosion-proof LED high-bay luminaire - 2

  • Enhanced Safety Explosion-proof LED Emergency Lighting Equipment - 14

  • Pressure resistant Explosion-proof LED Emergency Lighting Equipment - 23

  • LEDioc LED EYELAMP - 5

  • LEDioc LED Baselight - 8

  • LEDioc LED Baselight Emergency Lighting Equipment - 3

  • LEDioc ROAD S - 10
