• Quickly reaches full brightness
  • Dimming compatible: PWM 25 - 100% (HB200)
  • Lightweight magnesium alloy body
  • 130W/210W/255W LEDs capable of delivering brightness equivalent to 250W/400W/700W metal halide lamps respectively (255W LED delivers brightness equivalent to 1,000W mercury vapour lamp)
  • Highly efficient: 135ℓm/W (HB250/5,000K/Ra70)
  • Highly efficient/high-powered COB-type LED package
  • Long life: 60,000 hours (L80)

COB-Type LED Package

This light source, offering top-class energy saving performance has been achieved through a new optical design utilising both a lens and a mirror, and also through highly efficient use of electric power. With COB (Chip On Board) type lighting, large numbers of LED devices are mounted directly onto the substrate. As light is therefore emitted from a single uniform surface, a natural lighting environment of even brightness, close to that created by surface emission, can be achieved.

Standard LED Package

Standard LED Package

COB-Type LED Package

COB-Type LED Package

Product Series

Product Data Sheet


  • Operating Temperature Range: -20 to +40°C
  • Certification: CE


  • Beam Angle: Wide Beam
  • Half Intensity Angle: 30°
  • Colour Rendering Index: 70 to 80
  • Luminous Efficacy: 115.4 - 135.2lm/W
  • Lumen Maintenance (L80): 60,000 hours


  • Built-in Power Supply
  • Input Voltage: 220 - 240V
  • Line Frequency: 50 or 60Hz
  • Power Consumption: 4 Type 110W, 135W, 210W, 255W
  • Dimming Function (HB200):
    PWM Switching Frequency: 100Hz - 1kHz
    PWM Voltage Level: 10 - 12V
    PWM Duty Cycle: 0 - 100%


Body Magnesium Alloy (Except Front Section)
Power Supply Unit Case Extruded Aluminium
Glove Acrylic
Finish Colour White
Safety Wire Provided

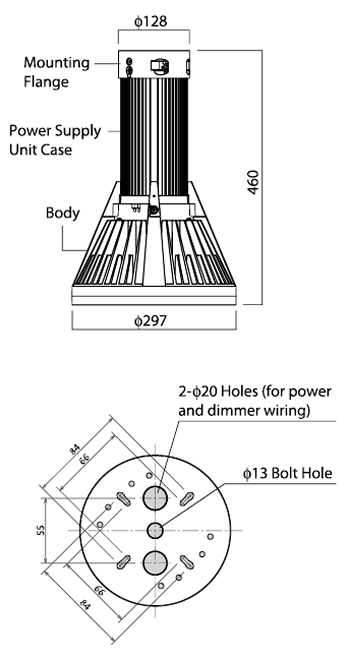

Dimensions / Weight

Dimensions / Weight
  • φ297×460mm
  • 6.5kg
